1994-1999 Camaro HVAC Control: Why Air Blows From the Wrong Vents & How to Fix It
A complete guide to diagnosing, replacing, and buying a used climate control unit for the fourth-generation Chevrolet Camaro.
- If air is stuck on defrost, the cause is almost always a vacuum leak under the hood, not a bad control unit.
- Part numbers must be matched. There is a key difference between 1994-1996 and 1997-1999 units, and the rear defrost option is critical.
- If the fan only works on the highest speed, the problem is the blower motor resistor, a separate and inexpensive part.
- Replacement is a simple DIY job that takes less than an hour with basic hand tools.
Is Air Stuck on Defrost? Check This First!
Before you blame the HVAC control unit, it's critical to understand a very common issue with 1994-1999 Camaros. If your air is stuck blowing out of the defrost and floor vents regardless of the setting, the problem is most likely a vacuum leak under the hood, not a bad control unit. The system that directs airflow (the mode doors) is vacuum-operated. When there is no vacuum, the system defaults to the defrost/floor position as a safety measure.
Pro Tip: Check for a small, brittle, or disconnected plastic vacuum line near the back of the intake manifold in the engine bay. A tiny, inexpensive vacuum check valve is often the culprit, and replacing it can restore full function without ever touching the dash.
🎬 Watch: How to fix the Camaro defrost-only issueSymptoms of a Failing HVAC Control Unit
If you've ruled out a vacuum leak, the control unit itself may be failing. Here are the most common symptoms:
- Unresponsive Controls: Buttons, sliders, or knobs do nothing when you use them. The system might be stuck on one setting or completely dead with no lights.
- Intermittent Function: The controls work sometimes and not others. This can be caused by failing internal electronics or cracked solder joints.
- Fan Speed Issues: The fan may be stuck on one speed or not work at all. However, if the fan only works on the highest setting, the problem is almost certainly the blower motor resistor, which is a separate part located elsewhere. 🎬 See how to replace the blower motor resistor
- A/C Compressor Won't Engage: The control unit sends the signal to turn the A/C compressor on. If the unit fails, it may not send this signal, even if the rest of the A/C system is fine.
- Burnt-Out Backlighting: The small bulbs that illuminate the face of the control unit burn out over time. This is usually a simple bulb replacement and doesn't mean the entire unit is bad.
Buying a Used 1994-1999 Camaro HVAC Control
Since new OEM units are generally unavailable and quality aftermarket replacements are not produced, a good used OEM part is the most practical solution. Here’s what to look for.
Verify Compatibility: 1994-1996 vs. 1997-1999
The HVAC control unit is NOT the same for all years in this generation. There was a design change for the 1997 model year.
- 1994-1996 Models: Typically use part numbers like 16183811 or 16181023. These units have a distinct look and connector style.
- 1997-1999 Models: Typically use part number 16216451. This part was used through 2002.
Warning: Always match the part number from your original unit to the replacement. The most important option to verify is the rear window defrost. Units for cars with and without rear defrost are different and not interchangeable.
Physical Inspection Checklist
Before buying a used unit, inspect it closely:
- Knobs and Buttons: Make sure all knobs and buttons are present and move as they should. The fan speed knob is notoriously easy to lose.
- Faceplate Condition: Check for deep scratches, cracks, or broken mounting tabs.
- Connectors: Look at the electrical and vacuum connectors on the back. Ensure no pins are bent, broken, or heavily corroded.
- Graphics: Check that the white and blue/red graphics on the faceplate are not worn away, which is common on high-mileage cars.
Cost Comparison
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | N/A | Generally discontinued and no longer available from GM. |
| New Aftermarket | N/A | Complete control units are not commonly manufactured for this generation. Individual knobs may be available from brands like Dorman. |
| Used OEM | $40 - $75 | The most common and cost-effective option. Prices vary by condition. |
| Shop Labor | $95 - $150 | Replacement is typically a 1-hour job at an independent repair shop. |
Replacement Guide (DIY)
Replacing the HVAC control unit is a straightforward job that most DIY mechanics can handle with basic tools.
- Difficulty: 2 out of 5
- Estimated Time: 30-60 minutes
- Tools Needed: 7mm socket or nut driver, flat blade screwdriver or trim removal tool.
Step-by-Step Process:
- Disconnect the Battery: As a safety precaution, disconnect the negative battery terminal.
- Remove the Dash Bezel: The large plastic trim piece surrounding the radio and HVAC controls is held in by clips. Carefully pry it away from the dash using a trim tool to avoid scratches.
- Unbolt the Control Unit: The HVAC control unit is typically held in place by two or four 7mm screws. Remove them.
- Disconnect the Unit: Gently pull the unit forward. On the back, you will find one or more electrical connectors and a multi-colored vacuum line connector. Press the release tabs to disconnect them.
- Install the New Unit: Connect the electrical and vacuum harnesses to the replacement unit, slide it into place, secure it with the screws, and snap the dash bezel back on.
Known Issues, Recalls, and TSBs
There are no active safety recalls or widespread Technical Service Bulletins (TSBs) from GM specifically for the failure of the HVAC control unit on 1994-1999 Chevrolet Camaros. Most issues are related to age and normal wear, or the previously mentioned vacuum system problems.
Frequently Asked Questions (FAQ)
My fan only works on the highest speed. Is the control unit bad?
No, this is a classic symptom of a failed blower motor resistor, not the control unit. The resistor is a separate, inexpensive part that controls the lower fan speeds. When it fails, power bypasses it and only the high-speed setting works.
Will an HVAC control from a Pontiac Firebird or Trans Am work in my Camaro?
Yes, most likely. The Camaro and Firebird are both F-Body platform cars and share many interior parts. As long as you match the year range (94-96 or 97-02), part number, and options (like rear defrost), a unit from a Firebird should be a direct swap.
The lights on my control panel are out. Do I need a whole new unit?
No. The backlighting is provided by small, replaceable incandescent bulbs. You can access these bulbs from the back of the unit once it's removed from the dash. Replacing the bulbs is much cheaper than replacing the entire control head.
Do I need to program a replacement HVAC control unit?
No. For this generation of Camaro, the HVAC control unit is a simple plug-and-play device. No programming or special calibration is required.

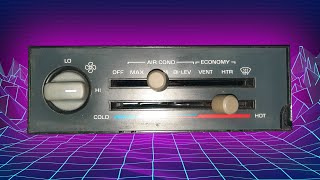

Helpful Videos
Technical Specifications
OEM Part Numbers: 16183811 16181023 16183802 16216451
Control method: Manual knobs and buttons. Airflow direction controlled by engine vacuum. Backlighting via replaceable incandescent bulbs.
