2017-2024 Hyundai Elantra Horn: Why It Fails and How to Replace It

Symptoms of a Failing Horn

A problem with your Elantra's horn can show up in several ways. Recognizing these symptoms is the first step to a correct diagnosis.

• Horn is completely silent: When you press the horn button, nothing happens. This is the most common failure and can be caused by several issues, from a simple fuse to the horn itself.
• Horn sounds weak or different: If your horn sounds quieter than usual, or has a strange, single-note tone, it likely means one of the two horns (high or low pitch) has failed. Many owners report being embarrassed by the resulting sound.
• Horn works intermittently: The horn may work sometimes and not others. This often points to a loose connection, a failing relay, or a problem in the steering wheel's horn switch or clock spring.
• Horn is stuck on: In rare cases, a short circuit or a stuck relay can cause the horn to sound continuously.

Is It the Horn or Something Else? A Step-by-Step Diagnosis

Before you replace the horn, it's important to confirm it's the actual cause of the problem. A non-working horn is often a symptom of a simpler electrical issue.

1. Check the Fuse: This is the easiest and most common fix. Locate the fuse box in the engine bay. The inside of the cover has a diagram that identifies the horn fuse, which is typically a 15-amp fuse. 🎬 Watch: How to find and check your Elantra horn fuse. Pull it out using the provided tool and check if the metal strip inside is broken. If it is, replace it with a new fuse of the same amperage. If the new fuse blows immediately, you have a short circuit that needs professional diagnosis.
2. Check the Relay: If the fuse is good, listen for a 'click' sound from the engine bay fuse box when someone presses the horn. If you hear a click, the horn switch and relay are likely working, and the problem is with the horn itself or the wiring to it. If you don't hear a click, the relay might be bad. You can test this by swapping the horn relay with an identical relay from another system (like the fog lights) in the same fuse box.
3. Check the Clock Spring: The clock spring is a special wiring connector in the steering column that allows the steering wheel to turn without breaking the electrical connection for the airbag, horn, and steering wheel controls. If your horn stopped working around the same time your airbag light came on or your radio controls failed, a bad clock spring is the likely culprit. This is a more complex repair and is best left to a professional due to its connection to the airbag system.
4. Test the Horn Directly: If the fuse and relay are good, the final step is to test the horn itself. This confirms whether the horn unit has failed or if there's a wiring problem leading to it.
🎬 See this video for a quick guide on testing horns.

Known Issues: Warranty Extension for Inoperable Horns (TSB 25-BE-005H)

A significant number of 2021-2025 Hyundai Elantra models have experienced premature horn failure. The issue became so common that Hyundai issued Technical Service Bulletin (TSB) 25-BE-005H and a corresponding warranty extension (Campaign Z03).

The problem is often caused by the original mounting position of the horns, which allowed water to enter and cause internal corrosion. The warranty extension covers the replacement of the horn assembly for 10 years or 120,000 miles from the vehicle's original in-service date, and it applies to both original and subsequent owners. If your horn is inoperable and your vehicle falls within the affected model years, a Hyundai dealer should replace it free of charge. The updated procedure involves installing newly designed horns in a vertical orientation to prevent water intrusion.

Buying a Used 2017-2024 Elantra Horn

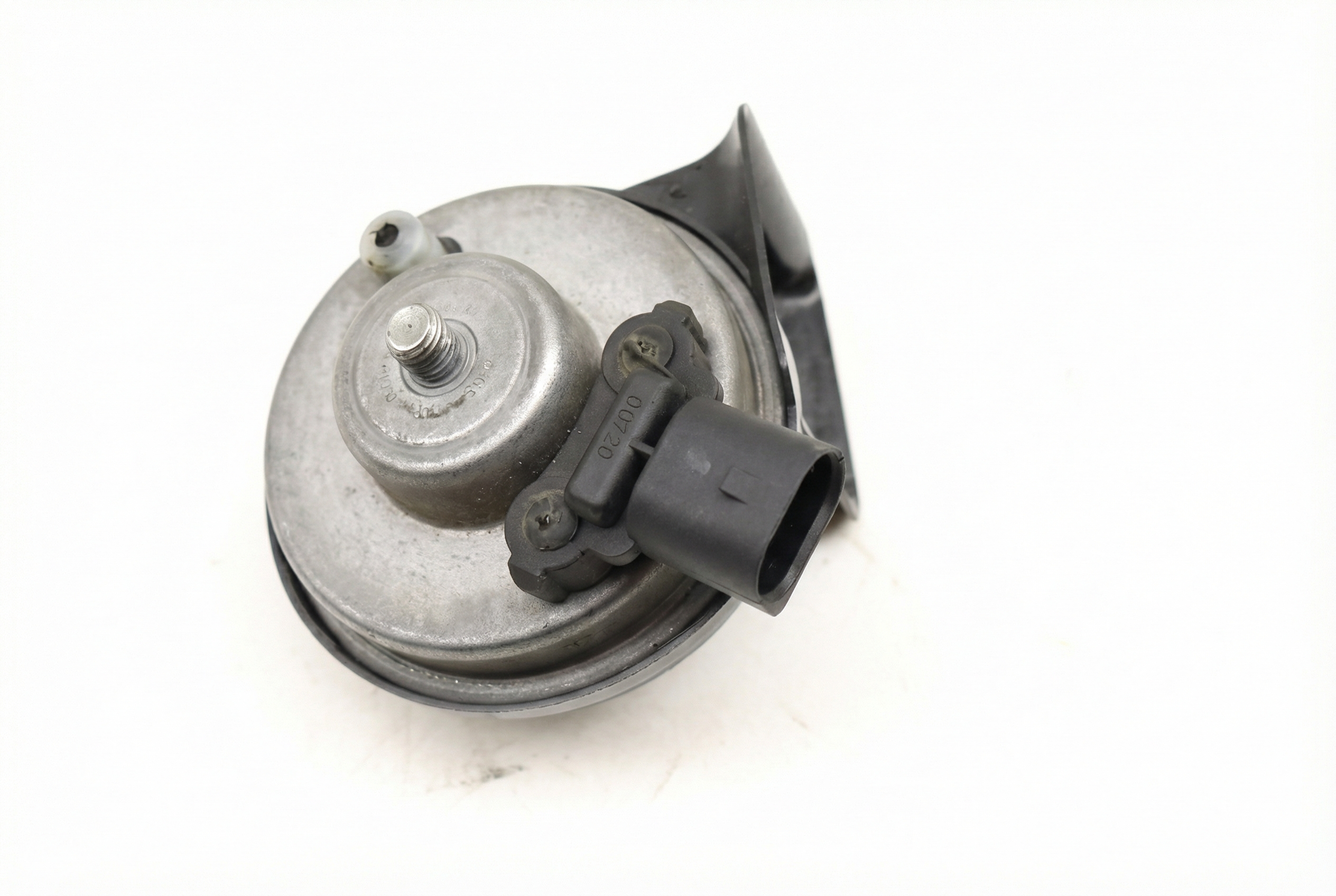

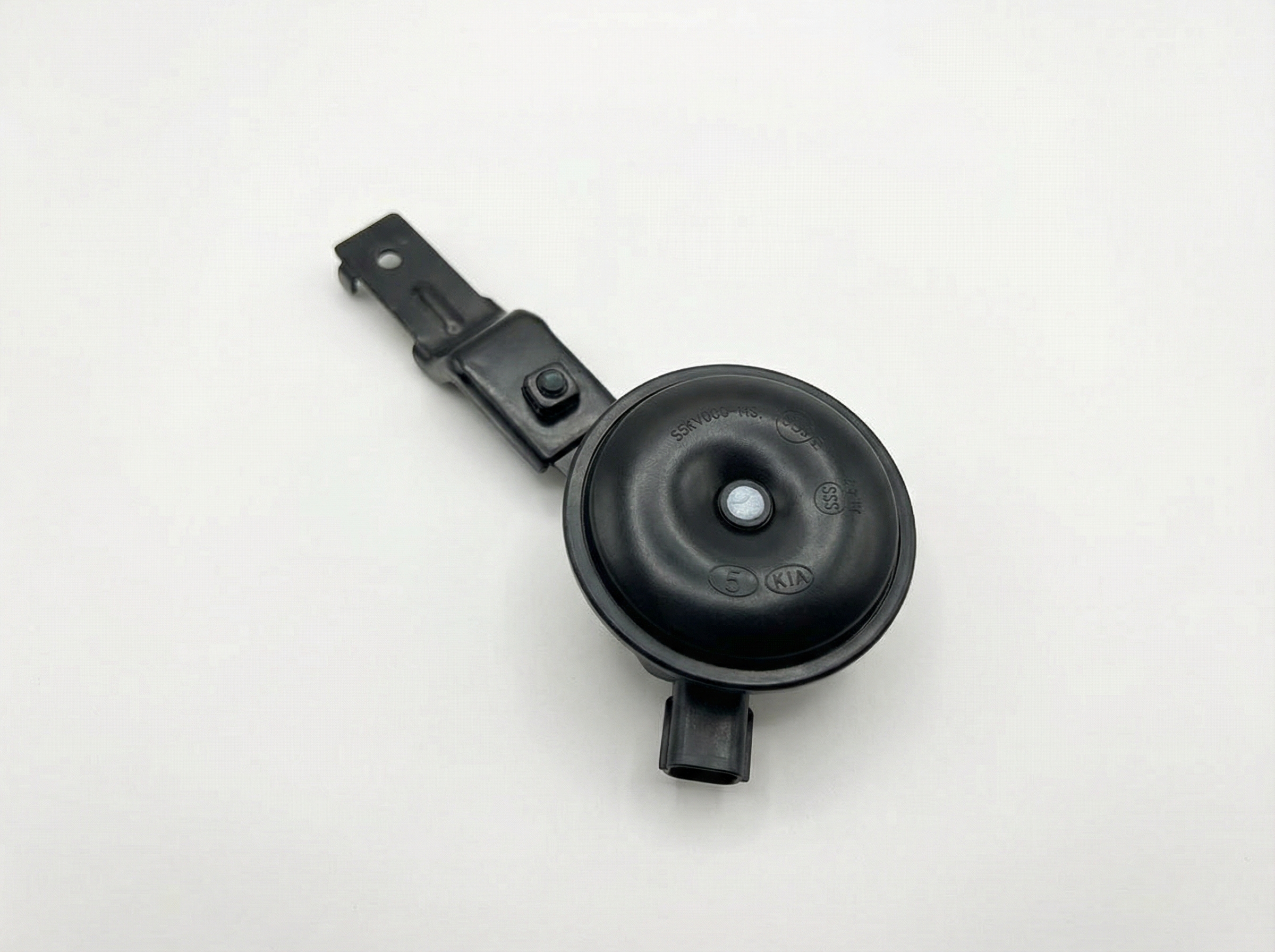

• Identify High vs. Low Note: The horns are typically located on the driver and passenger sides behind the front bumper cover. The low-pitch horn is often designated by part numbers starting with 96610 or 96611, while the high-pitch horn often starts with 96620 or 96621. Always confirm the part number from your existing horn if possible.
• Physical Inspection: When buying a used horn, inspect the black plastic housing for any cracks or significant damage. Check the electrical connector pins for any signs of green or white corrosion. Ensure the metal mounting bracket is intact and not severely rusted.
• Test Before You Install: The most important step is to bench test the used horn before installing it. Use the 12V battery test described in the diagnosis section. This simple check can save you the frustration of installing a faulty part.

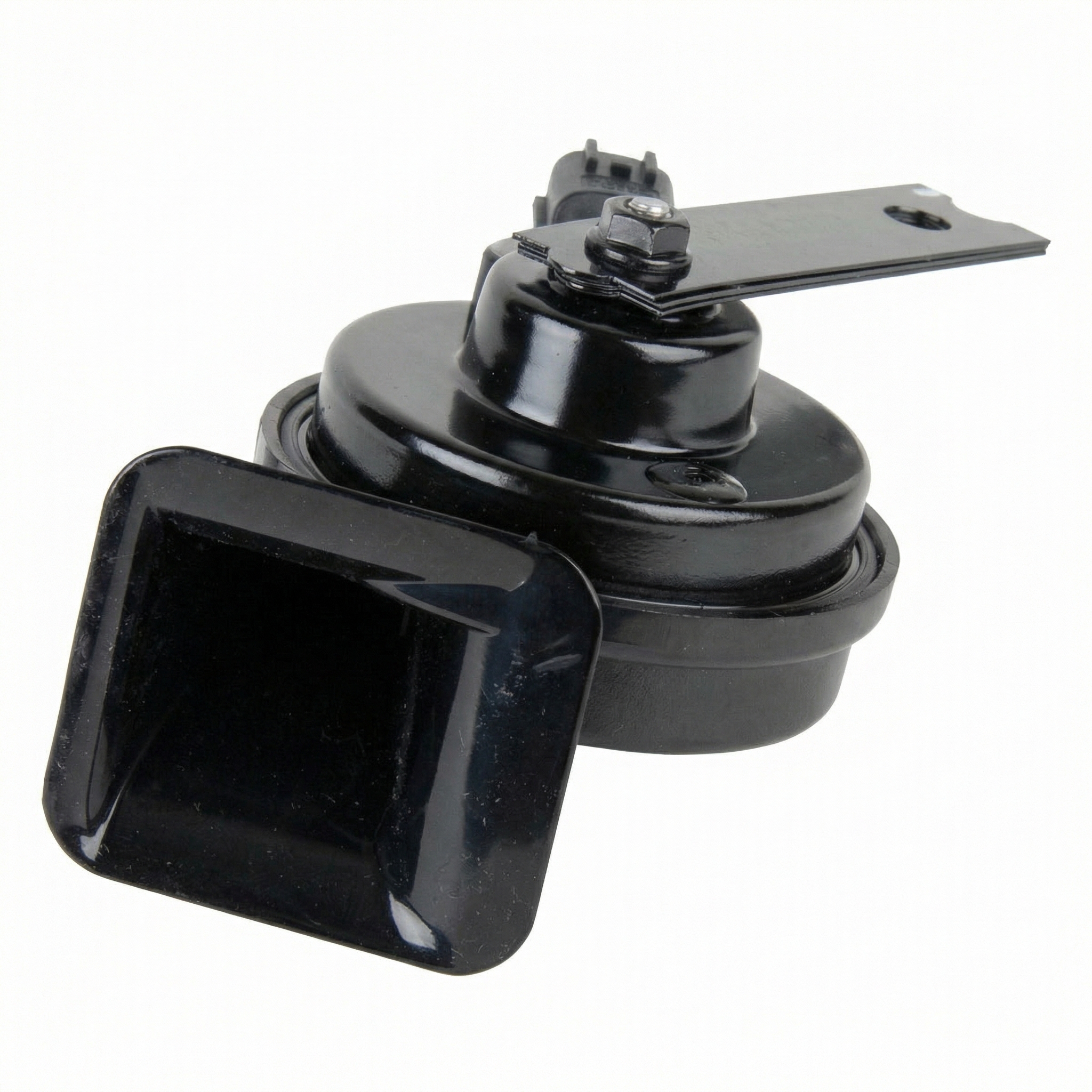

• Why Used OEM is a Good Choice: A used OEM (Original Equipment Manufacturer) horn is guaranteed to have the correct pitch, volume, and connector to match your vehicle's system. Cheap aftermarket horns can sound tinny or off-key and may not have the same durability as a genuine Hyundai part.

Replacement Guide Overview (Difficulty: 2/5)

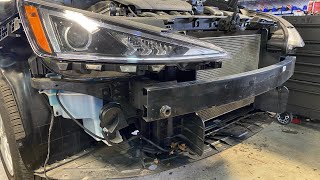

Replacing the horn on a 2017-2024 Elantra is a straightforward job, but it does require accessing the area behind the front bumper. While some guides suggest removing the entire bumper cover, it's often possible to replace the horns by only removing the lower splash shield underneath the front of the car.

1. Disconnect the negative battery terminal.
2. Safely raise the front of the vehicle and support it on jack stands.
3. Remove the push-pins and bolts holding the front portion of the lower splash shield and move it out of the way.
4. Locate the horns, which are bolted to the radiator support area. The low note and high note horns are on opposite sides.
🎬 Watch: How to locate and remove horns on newer models.
5. Press the tab on the electrical connector and pull it from the horn.
6. Remove the single 10mm nut holding the horn to its bracket.
7. Install the new horn, ensuring the bell opening faces downward to prevent water entry, as specified in Hyundai's updated TSB.
8. Reconnect the electrical connector and the battery, then test the horn before reassembling the splash shield.
