2016-2020 Buick Envision Hood Hinge: Solving Alignment, Sticking, and Popping Issues

Symptoms of a Failing Hood Hinge

Because hood hinges are purely mechanical, the signs of failure are almost always physical or audible. Over time, the constant stress and exposure to the elements can cause them to wear out, bend, or seize.

• Poor Hood Alignment: This is the most common symptom. You may notice that the gaps between the hood and the fenders are uneven, or that one corner of the hood sits higher or lower than the body panels around it.
• Difficulty Opening or Closing: If a hinge is bent or its pivot point is seizing from rust or lack of lubrication, you will feel resistance, binding, or a grinding sensation when trying to open or close the hood. In severe cases, this can even cause the hood panel itself to bend.
• Popping or Creaking Noises: Worn or dry pivot points on the hinge will often make loud creaking or popping sounds during operation.
• Hood Doesn't Stay Open: While this is often caused by weak hood support struts, severely worn or loose hinges can also contribute to the hood sagging or not staying fully open.
• Visible Damage or Rust: A visual inspection may reveal that the hinge is bent, cracked, or heavily corroded. This is common after a minor front-end collision.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from General Motors that directly address the hood hinges on the 2016-2020 Buick Envision. Searches of the National Highway Traffic Safety Administration (NHTSA) database show recalls for this vehicle related to other components like airbags, seatbelts, and fuel pumps, but none for the hood hinges themselves. While some general GM service bulletins exist for diagnosing vibrations, none point to a systemic defect with the Envision's hood hinges.

Buying a Used Hood Hinge: What to Check

A used OEM hood hinge is often a superior choice to a new, low-cost aftermarket part. Original GM hinges are made from high-quality steel and are designed for a perfect fit, which is critical for proper hood alignment. Aftermarket parts may not meet the same specifications, potentially leading to installation headaches and alignment problems. When inspecting a used hinge, here’s what to look for:

• Check for Bends and Twists: Lay the hinge on a flat surface. It should sit flush without any rocking. Look down its length to spot any subtle bends or twists. A bent hinge will make proper hood alignment nearly impossible.
• Inspect Pivot Points: Manually move the hinge through its full range of motion. It should pivot smoothly without any binding, grinding, or excessive looseness. Stiff operation suggests internal rust or wear.
• Look for Cracks: Carefully examine the metal around all pivot points and mounting holes. Stress from use or an accident can cause small cracks that compromise the hinge's strength.
• Assess Corrosion: Minor surface rust is usually cosmetic and can be cleaned up. However, avoid any hinge with deep, flaking rust or pitting, as this indicates the metal has been weakened.

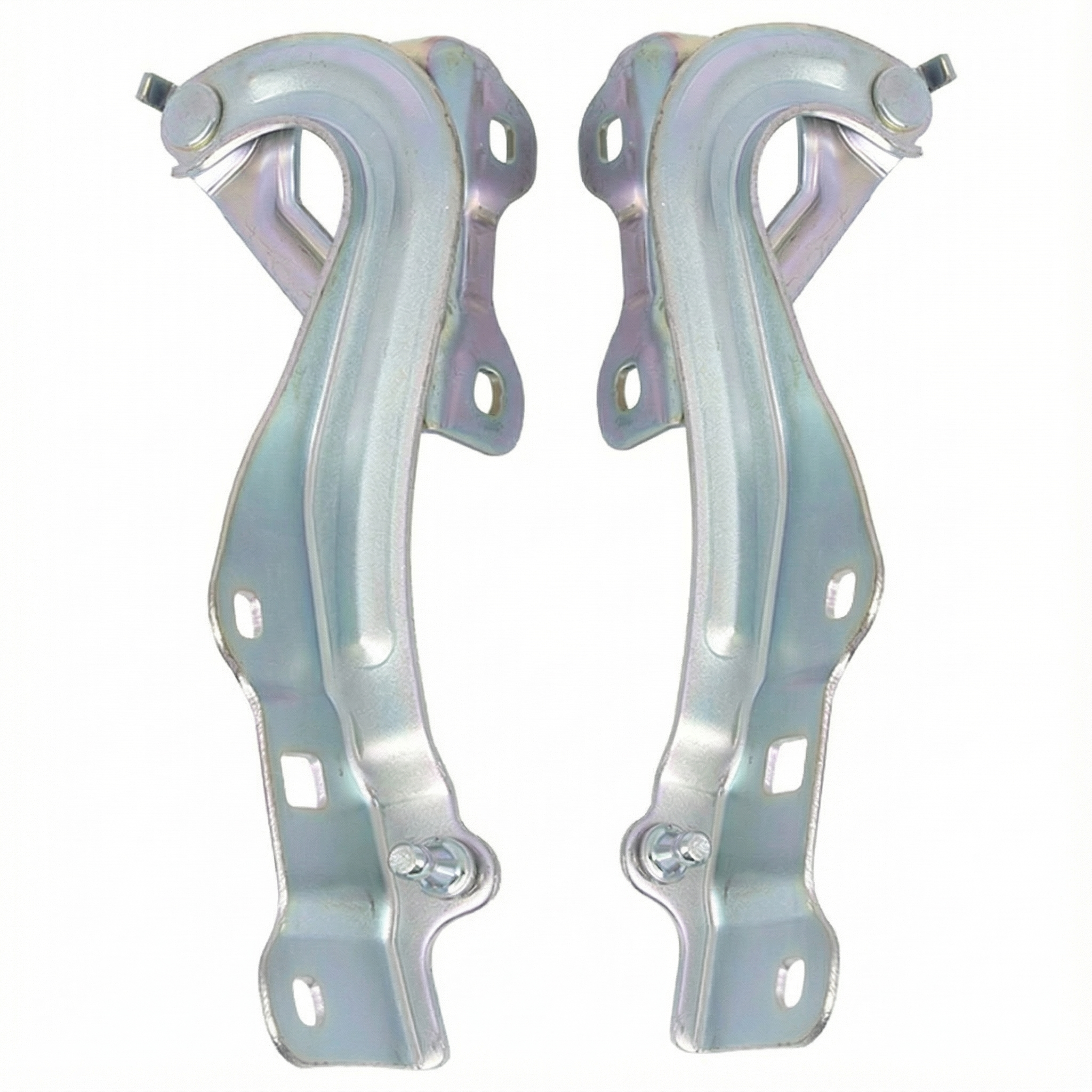

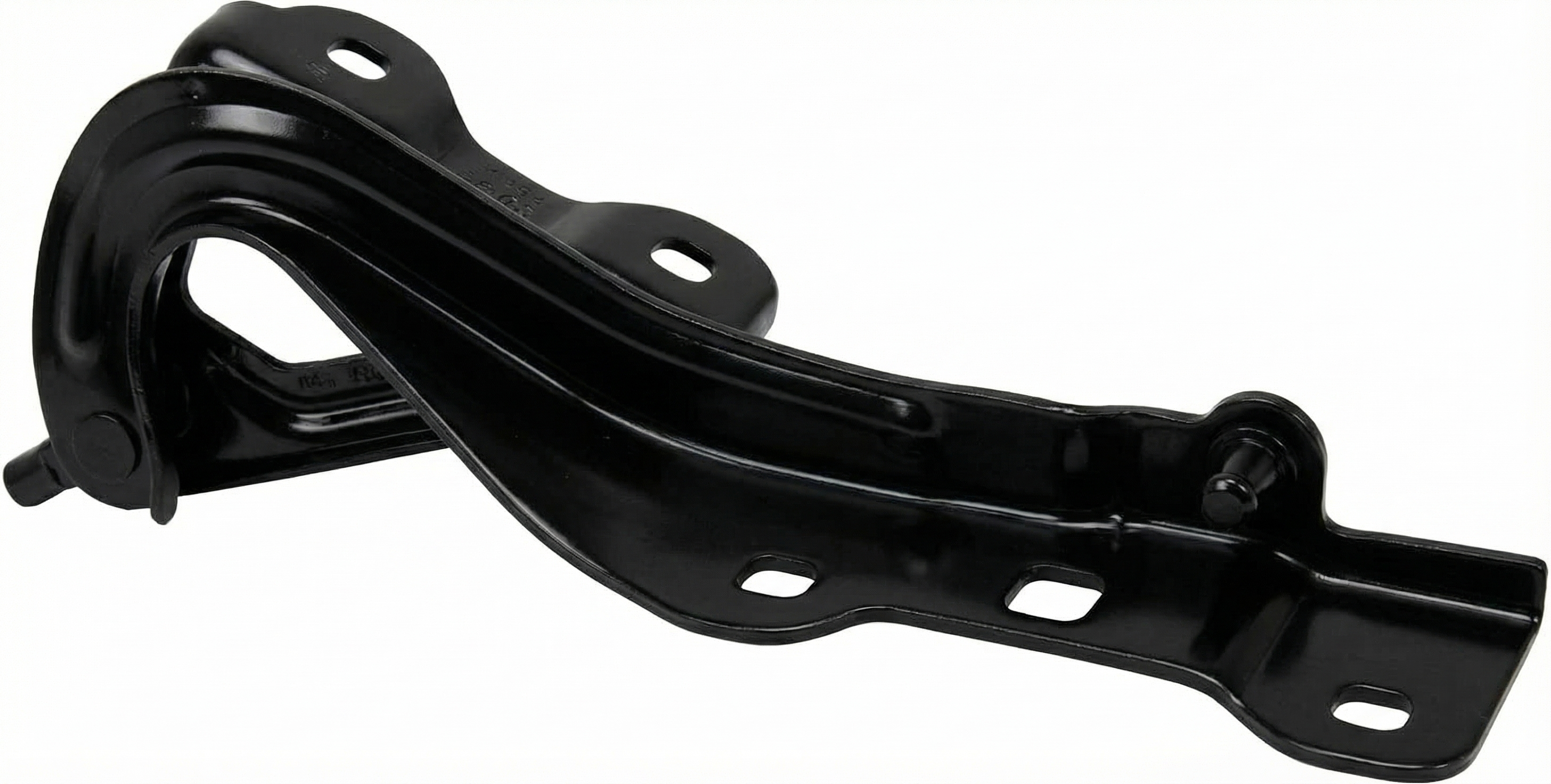

• Verify Part Numbers: Ensure the part numbers match your vehicle. The left (driver side) hinge is GM part number 23331407, and the right (passenger side) hinge is GM part number 23331408.

Replacement Overview & Difficulty

Replacing a hood hinge is a straightforward task, but proper alignment is key. This job requires a helper to safely handle the hood.

• Difficulty Rating: 2 out of 5
• Estimated Time: 0.5 - 1.0 hours
• Tools Needed: Socket set (typically 10mm or 13mm), marker or scribe, a helper.

Step-by-Step Guide:

1. Mark the Hinge Position: Before loosening any bolts, use a marker or scribe to carefully trace the outline of the old hinge on both the hood and the vehicle's body. This is the most critical step for getting the new hinge aligned correctly.
2. Support the Hood: Have a helper hold the hood securely in the open position. Do not rely on the hood struts alone, as removing one hinge will cause the hood to become unstable.
3. Unbolt the Old Hinge: First, remove the bolts connecting the hinge to the hood. Then, remove the bolts connecting the hinge to the body.
4. Install the New Hinge: Loosely install the replacement hinge. Align it with the marks you made in the first step.
5. Align and Tighten: With the hinge aligned to your marks, tighten all bolts snugly. Gently lower the hood to check the alignment. Make small adjustments as needed by slightly loosening the bolts and shifting the hood position. 🎬 See this walkthrough on replacing and lining up hood hinges Once the gaps are even and the hood is flush with the fenders, fully tighten all bolts.

Cost Comparison

Prices for Buick Envision hood hinges can vary. A used OEM hinge offers the best balance of quality and value.
