2000-2002 Saturn L300 Headlight: Solving Haze, Moisture, and Fitment Issues

Key Features of the 2000-2002 Saturn L300 Headlight

The 2000-2002 Saturn L-Series, including the L300, came from the factory with a one-piece composite halogen headlight assembly. This means the housing and lens are a single, sealed unit made of plastic, designed for replaceable halogen bulbs. There were no premium HID (High-Intensity Discharge) or LED options offered from the factory for these model years.

• Headlight Type: Halogen. These assemblies use separate bulbs for the low and high beams.
• Bulb Types: The low beam uses a 9006 bulb, and the high beam uses a 9005 bulb.
• No Extra Modules: As a standard halogen system, these headlights do not require any external ballasts, igniters, or LED driver modules. The bulbs connect directly to the vehicle's wiring harness.
• Compatibility: These assemblies fit all 2000, 2001, and 2002 Saturn L-Series models, including the L100, L200, L300, LW200, and LW300, for both sedan and wagon body styles.

Symptoms of a Failing Headlight Assembly

Beyond a simple burned-out bulb, the entire assembly can fail in ways that degrade performance and safety.

• Dim or Yellowed Light Output: The most common issue is the polycarbonate lens becoming yellow, hazy, or cloudy from UV sun damage. This oxidation on the lens surface scatters and blocks light, severely reducing visibility at night.
• Moisture or Condensation Inside: Finding water droplets, fog, or a persistent haze inside the lens means the factory seal has failed. This moisture can cause the reflective chrome surfaces to peel or corrode, and can lead to premature bulb failure.
• Cracked Lens or Housing: Physical damage from road debris or a minor impact can break the lens or rear housing, allowing water to enter freely and compromising the unit's structural integrity.
• Electrical Issues: While often a bulb or fuse issue, a corroded bulb socket within the assembly can cause intermittent or total light failure. In rare cases, a short within the bulb itself can repeatedly blow fuses.

Known Issues, Recalls, and Service Bulletins

While there have been no specific recalls issued by the National Highway Traffic Safety Administration (NHTSA) for the headlight assemblies on the 2000-2002 Saturn L-Series, a notable recall (NHTSA ID: 05V-245) was issued for the tail light assemblies. This recall addressed an issue where the plastic housing could distort or melt, causing brake light failure. While this does not directly affect the headlights, it points to potential issues with the plastics used during this manufacturing period.

No Technical Service Bulletins (TSBs) specifically addressing headlight failure, hazing, or moisture were found for this model. However, owner forums frequently discuss lens hazing and moisture entry as common age-related problems.

Buying a Used 2000-2002 Saturn L300 Headlight Assembly

A used OEM (Original Equipment Manufacturer) headlight is often a better choice than a cheap aftermarket alternative, as it preserves the original fit, quality, and beam pattern. Here’s what to inspect:

1. Lens Clarity: This is the most important factor. Look for a clear, transparent lens. Minor surface haze can often be polished out, but deep yellowing, tiny cracks (crazing), or a cloudy appearance that seems to be on the inside indicates permanent damage.
2. Mounting Tab Integrity: Carefully inspect all mounting tabs on the top, side, and bottom of the housing. These plastic tabs are brittle and frequently break during vehicle disassembly or in minor accidents. An assembly with broken tabs will not mount securely, leading to vibration and improper alignment.
3. Seal and Housing Inspection: Check the seam where the clear lens is bonded to the black plastic housing. Look for any signs of separation or previous attempts to reseal it with silicone. Turn the assembly over and check for cracks in the black housing itself.
4. Check for Internal Moisture: Look for a "water line" or dried mineral deposits on the inside of the lens or on the chrome reflector. This is a clear sign the assembly has a leak and should be avoided.
5. Wiring and Sockets: Ensure the bulb sockets are clean, with no signs of green or white corrosion, melting, or brittle plastic. The wiring pigtail should be flexible and free of damage.

Replacement Overview & Headlight Aiming

Replacing the headlight assembly on a 2000-2002 Saturn L300 is a straightforward DIY job. The process generally involves removing a few bolts on the top and side of the assembly. Access may require removing the front grille, which is held on by clips and screws.

Difficulty: 2 out of 5
Estimated Time: 0.5 - 1 hour per side

Key Replacement Steps:

1. Disconnect the negative battery terminal.
2. Open the hood and remove the plastic clips and bolts securing the top of the front grille.
3. Carefully pull the grille forward to release it.
4. Locate and remove the bolts securing the headlight assembly to the radiator support frame. There are typically two on top and one on the side.
5. Gently pull the assembly forward to free it from the vehicle.
6. Disconnect the electrical connectors from the back of the assembly by pressing their release tabs.
7. Transfer the turn signal bulb to the new assembly if needed.
8. Installation is the reverse of removal.

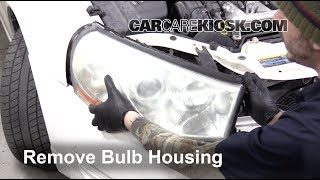

🎬 Watch: Step-by-step Saturn L-Series headlight replacement video

Required Headlight Aiming

After installing a new headlight assembly, you must check and adjust the aim. Misaligned headlights can blind other drivers or fail to illuminate the road properly. This is a simple but critical adjustment.

How to Aim:

1. Park the car on a level surface about 25 feet away from a flat, vertical wall (like a garage door).
2. Turn on the low-beam headlights.
3. Locate the adjustment screws on the back of the headlight assembly. There will be one for vertical (up/down) adjustment and one for horizontal (left/right) adjustment.
4. The top of the most intense part of the beam pattern on the wall should be at or slightly below the height of the center of your headlight lens.
5. Adjust each headlight so the beam pattern is directed straight ahead and at the proper height.
