2015-2021 Porsche Macan Headlight Guide: Decoding PDLS, LED, and Xenon Failures

Understanding Your Macan's Headlights: Halogen, Bi-Xenon, and LED Explained

The 2015-2021 Porsche Macan was available with several different headlight technologies. They are not interchangeable without significant, costly modifications. It is critical to identify which system your vehicle has before purchasing a replacement.

• Halogen: Found on some base models, these are the simplest type, using a traditional filament bulb. They offer the lowest light output and are the least common option.
• Bi-Xenon (HID): A very common option, these use a single Xenon High-Intensity Discharge (HID) bulb with a mechanical shutter that moves to switch between low and high beams. These require an external ballast (or igniter) to operate.
• LED: Standard on later models and optional on earlier ones, these use Light Emitting Diodes for all lighting functions. They provide excellent brightness and a modern look but are often the most expensive to replace. They require an external LED control module.

The PDLS and PDLS+ Options

Adding another layer of complexity, both Bi-Xenon and LED headlights were available with or without the Porsche Dynamic Light System (PDLS).

• Standard (Non-PDLS): These are fixed headlights without adaptive capabilities, though they still have standard vertical aim adjustment.
• PDLS (Porsche Dynamic Light System): This system features dynamic cornering lights that swivel the main headlights based on your steering angle and speed. It also includes dynamic leveling to adjust for vehicle load, preventing glare to other drivers.
• PDLS+ (Porsche Dynamic Light System Plus): Available only with LED headlights, PDLS+ adds an automatic high-beam assist function. It uses a camera to detect oncoming traffic and vehicles ahead, automatically adjusting the light pattern to provide maximum illumination without dazzling other drivers.

Common Symptoms of a Failing Macan Headlight Assembly

Headlight issues can range from minor cosmetic flaws to critical safety failures. Here are the most common symptoms owners experience:

• Moisture or Condensation: Fogging or water droplets inside the lens are a frequent complaint. While minor fogging that clears up on its own can be normal due to atmospheric changes, persistent moisture indicates a bad seal on the housing. This can lead to corrosion of internal electronics and eventual failure of the ballast or LED module.

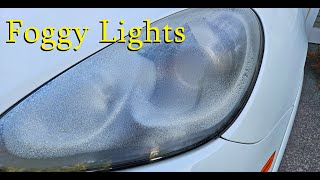

🎬 Learn how to fix foggy headlights and remove internal condensation.
• Dim or Flickering Light: On Xenon models, this is a classic sign of an aging bulb or a failing ballast. On LED models, it points to a problem with the internal driver or the external control module.
• Low Beam or DRL Failure: On LED models, it's common for just the low beam or a section of the four-point daytime running light to go out while other functions still work. Unfortunately, the individual LEDs are not serviceable, requiring replacement of the entire headlight assembly. Forum users have noted a higher rate of failure for the passenger-side (right) headlight.

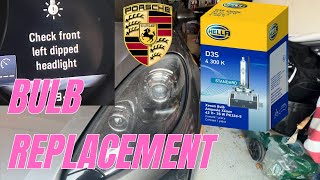

• "Check Dipped Headlight" Warning: This dashboard message often appears on Xenon-equipped models when a bulb is about to fail or has already burned out.

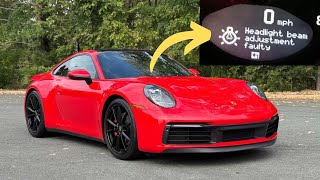

• Adaptive Headlight (PDLS) Malfunction: A dashboard warning about a fault in the adaptive headlight system indicates a problem with the leveling sensors on the suspension or the swivel motors inside the assembly. The light beam may also appear to jiggle, vibrate, or point down at the ground.
• Hazed or Crazed Lens: The outer plastic lens can develop a web-like pattern of micro-cracks, known as "crazing," from UV exposure and heat. This significantly reduces light output and is a common cosmetic and safety issue on the Macan.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there have been no major recalls for complete headlight failure on the 2015-2021 Macan, there is one key recall and other known issues to be aware of.

• NHTSA Recall 22V656000 (Porsche Campaign ANB4): This recall affects a huge number of Porsche vehicles, including the 2015, 2018, and 2020 Macan. The issue is a missing sealing cap on the horizontal adjustment screw for the low beam. Without this cap, the headlight could be improperly adjusted, potentially causing glare for oncoming traffic. The fix is a simple, free inspection and installation of the cap by a dealer.
• Technical Service Bulletins for Condensation: Porsche has issued TSBs acknowledging the potential for moisture to enter the headlight assemblies. The guidance often involves checking seals and replacing a vent cap, but if the seal of the housing itself has failed, the entire assembly must be replaced.

Buyer's Guide: How to Inspect and Purchase a Used 2015-2021 Macan Headlight

Due to the high cost of new OEM units, a quality used headlight is a popular choice. However, the complexity of these parts makes careful inspection essential.

Step 1: Identify Your Headlight Type (CRITICAL)

Before you even start looking, you must know exactly what is on your car. Check your vehicle's original window sticker or VIN decoder for options like Bi-Xenon, LED, PDLS, or PDLS+. Visually, PDLS headlights often have "Porsche Dynamic Light System" text printed inside the housing. Do not buy a replacement until you are 100% certain of your vehicle's original configuration.

Step 2: Physical Inspection Checklist

When inspecting a used headlight, either in person or through detailed photos, check the following:

• Lens Condition: Look for deep scratches, rock chips, and signs of hazing or yellowing. Pay close attention to crazing (the fine web of cracks), which is hard to repair and significantly degrades appearance and performance.

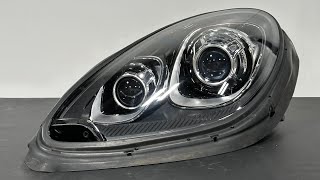

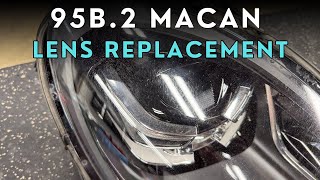

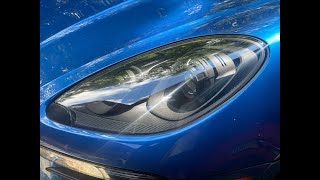

🎬 See how to replace a damaged or crazed headlight lens cover.
• Housing Integrity: Inspect the black plastic housing on the back for any cracks, especially around the mounting points. Look for signs of plastic welding or epoxy, which indicate a previous repair that may not be fully sealed.
• Mounting Tabs: Carefully check that all mounting tabs are intact and free of cracks. These are frequently broken when headlights are removed from a donor vehicle and are critical for a secure, vibration-free fit.
• Connectors: Look at the electrical connector pins to ensure they are straight and free of any green or white corrosion.
• Seals and Vents: Ensure the rear access caps and vent tubes are present and their seals are in good condition.

Step 3: What's NOT Included

Headlight Replacement Overview and Calibration

Replacing a headlight on a Macan is a manageable DIY job for those with some experience.

• Bumper Removal Not Required: Unlike many modern cars, the front bumper cover does not need to be fully removed. However, you must remove the plastic trim panels located between the hood and the headlight assembly 🎬 Watch this step-by-step guide for removing and replacing the headlight assembly. to access the mounting bolts.
• Tools: The job requires basic tools, including a T30 Torx bit and a 10mm socket. The headlight is held in by two main bolts.
• Aiming: After installation, the headlight's vertical aim must be properly adjusted to ensure correct light pattern and avoid blinding other drivers. This is typically done by parking on a level surface in front of a wall and adjusting the beam height via a screw on the back of the housing.
• PDLS Calibration: If your vehicle has PDLS, a critical final step is required. The system must be calibrated using a Porsche-specific diagnostic tool (like a PIWIS). Without this step, the adaptive cornering and auto-leveling functions will not work correctly and you will likely have a fault code on your dashboard.

Cost Comparison: New vs. Used Macan Headlights

Frequently Asked Questions (FAQ)
