2011-2013 Hyundai Sonata Driver Side Fog Light: Damage, Moisture & Replacement Guide

Symptoms of a Failing Fog Light

Because of their low mounting position, fog light assemblies are prone to damage from road debris, parking blocks, and weather. Here are the most common signs that your driver-side fog light needs attention:

• The Light is Out: The most obvious symptom is a fog light that won't turn on. This could be a simple burnt-out bulb, but it can also point to a bad connection, a blown fuse, or moisture damage within the housing.
• Visible Moisture or Condensation: If you see water droplets, fog, or a hazy film inside the lens, the assembly's weather seal has failed. This is a common issue. Once moisture gets in, it will corrode the bulb socket and reflective surfaces, leading to eventual failure.
• Cracked or Broken Lens/Housing: Impacts from rocks and other road debris can easily crack the plastic lens or the main housing. A cracked lens allows water and dirt to enter, quickly ruining the light.
• Dim or Flickering Light: A light that flickers or appears dimmer than the passenger side light often indicates a bad electrical connection or corrosion on the bulb's contacts, frequently caused by moisture intrusion.
• Yellowed or Cloudy Lens: Over time, exposure to UV rays from the sun can cause the plastic lens to become yellow, cloudy, or hazy. This significantly reduces the amount of light that can pass through, making the fog light less effective.

Buying a Used 2011-2013 Sonata Fog Light

A used OEM (Original Equipment Manufacturer) fog light is often a great value compared to a new dealer part. However, you need to inspect it carefully before buying.

What to Inspect:

• Check All Mounting Tabs: The assembly is held to the bumper by several plastic tabs. These are brittle and often break during removal. Ensure all tabs are present and free of cracks. An assembly with a broken main mounting tab is useless.
• Inspect the Lens Seal: Look closely at the seam where the clear lens meets the black plastic housing. There should be no gaps or signs of prying. This seal is what keeps moisture out.
• Look for Internal Haze or Moisture: Hold the light up to a bright source. The inside of the lens should be perfectly clear. Any sign of a white film, dried water spots, or haziness means it has had moisture inside in the past and will likely leak again.
• Examine the Lens Surface: Minor road pitting is normal for a used part. However, reject any assembly with deep scratches, chips, or any cracks, no matter how small.
• Check the Bulb Socket: Look inside the bulb opening for any signs of green or white corrosion, or melted plastic. This indicates severe water damage or a history of using the wrong, high-wattage bulb.

Known Issues, Recalls, and TSBs

While there are no specific recalls for the fog lights on the 2011-2013 Sonata, there are several general lighting-related issues for this vehicle generation.

• Stop Lamp Switch Recall: A widespread recall (NHTSA Campaign Number 13V113000) was issued for a faulty stop lamp switch. While this affects the brake lights, not the fog lights, it highlights potential issues within the vehicle's lighting control circuits. A malfunctioning switch could cause various unpredictable electrical behaviors.
• Rear Combination Lamp Warranty Extension: Hyundai extended the warranty on the rear tail light assemblies (TSB 23-01-089H) due to issues with the housings melting. This does not apply to the front fog lights but shows a pattern of potential lighting housing issues from this era.
• Moisture Intrusion: The most common complaint found in owner forums is moisture getting inside the fog light housing. This is often due to failed lens seals or minor cracks from road debris.

Cost Comparison

Replacement Information

Replacing the entire fog light assembly is more involved than just changing the bulb, as it requires removing the front bumper cover.

• Difficulty: 3 out of 5 (Moderate)
• Estimated Time: 1.5 hours
• Tools Required: Phillips screwdriver, 10mm socket, ratchet, trim clip removal tool.

Abbreviated Replacement Steps:

1. Remove plastic clips and 10mm bolts from the top and sides of the front bumper cover and from the splash shield underneath.
2. Carefully pull the sides of the bumper cover away from the fenders to release the clips.
3. Pull the bumper cover forward. Before setting it aside, disconnect the fog light electrical connectors.
4. With the bumper cover removed and placed on a soft surface to prevent scratches, locate the fog light assembly. It is held in by several Phillips head screws.
5. Remove the screws, take out the old assembly, and install the new one.

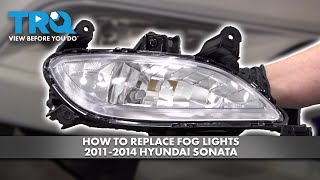

6. Reinstallation is the reverse of removal. 🎬 Watch: Step-by-step fog light assembly replacement guide Test the lights before fully reattaching the bumper.
