2013-2015 Lexus LX570 Headlamp: AFS, HID Bulbs, and Moisture Issues Explained

Symptoms of a Failing Headlamp Assembly

Problems with the LX570 headlamp can range from simple bulb burnout to complex electronic failures. Here are the most common symptoms:

• Dim or Discolored Light Output: HID bulbs lose brightness and shift in color (often becoming more blue or purple) as they age. Some owners also report disappointing light output even with new bulbs, suggesting the projector optics may degrade over time.
• Moisture or Condensation Inside the Lens: A common complaint is the appearance of fog, mist, or even water pooling inside the headlamp housing. While some minor condensation can be normal in certain humidity and temperature conditions, persistent moisture indicates a failed seal. This can lead to shorted electronics and reflector damage.
• "AFS OFF" Light on Dashboard: A flashing "AFS OFF" light indicates a malfunction in the Adaptive Front-lighting System. This could be caused by a failed swivel motor inside the headlight, a bad connection, or a problem with the vehicle's height or steering angle sensors.
• Headlight Not Swiveling on Turns: If the AFS system fails, the headlights will stop turning with the steering wheel, reducing visibility around corners.
• Flickering or Inoperative Headlight: A headlight that flickers or won't turn on at all could be due to a failed HID bulb, ballast, or igniter. A technician can diagnose the specific component by swapping parts from the working side to the non-working side.
• Yellowed or Hazy Lens: The outer polycarbonate lens is susceptible to UV damage over time, which causes a yellow, cloudy, or peeling appearance. This significantly reduces light output and is a common issue on higher-mileage vehicles.

Buying a Used 2013-2015 LX570 Headlamp Assembly: A Buyer's Checklist

A used OEM headlamp is often a better choice than a cheap aftermarket alternative, which can suffer from poor fitment, mismatched colors, and unreliable electronics. However, careful inspection is critical before buying a used unit.

Step 1: Inspect the Lens Condition

Look for deep scratches, rock chips, and signs of hazing or yellowing. Pay close attention to the top surface, which is most exposed to the sun. While minor hazing can sometimes be polished out, a lens with a peeling or cracked clear coat will need professional restoration or replacement.

Step 2: Check for Moisture Damage

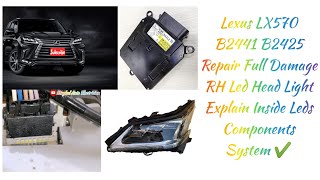

Examine the inside of the lens for any dried water spots, white residue, or a persistent foggy film. These are signs that the headlight seal has failed in the past. A permanently water-damaged reflector or projector bowl will have a dull, non-reflective finish 🎬 See how water damage affects internal components in an LX570 headlight, severely compromising light output.

Step 3: Examine All Mounting Tabs

Headlight assemblies are held in by several plastic mounting tabs that are easily broken during a collision or even improper removal. Lexus sells some replacement tabs that can be screwed on, so a housing with a broken but replaceable tab can be a good value. Inspect the housing carefully to see if the broken tab is one of the repairable types or if the damage is to the main body of the housing itself.

Step 4: Verify What's Included

Most used headlamp assemblies are sold as a bare housing. This means you will need to transfer the HID bulb, ballast (the silver box on the bottom), and igniter from your old headlight. Confirm with the seller exactly which components are included. If the ballast or bulb is included, consider it a bonus, as their condition is not guaranteed.

Replacement and Calibration

Installation Overview

Replacing the headlamp assembly on an LX570 is a moderately difficult job that typically requires removing the front bumper cover and grille to access all the mounting bolts. This process can take a few hours for a DIY mechanic.

AFS Calibration

After replacing a headlamp assembly, the AFS system may need to be re-initialized. In many cases, the system can recalibrate itself after a short drive that includes several left and right turns. If an "AFS OFF" light appears and does not go away, a diagnostic scan tool may be needed to perform a specific calibration procedure. 🎬 Watch: How to reset adaptive headlights after a bulb or ballast change However, simply replacing the housing does not always require a special calibration, as long as the original sensors and modules are functioning correctly.

Headlight Aiming

After installation, you must aim the headlights to ensure they properly illuminate the road without blinding oncoming drivers. The vertical aim is typically adjusted using a long Phillips screwdriver or an 8mm socket on an adjuster screw accessible from the top of the housing. The auto-leveling system adjusts from this baseline setting, so setting the initial aim correctly is crucial.

Cost Comparison

Known Issues, Recalls, and TSBs

There are no specific recalls for the headlamp assemblies on the 2013-2015 Lexus LX570. However, the vehicle was part of a wider recall for a low-pressure fuel pump that could fail and cause the engine to stall. While not directly related to the headlights, it's an important safety item to check. Some owners have noted that Lexus has issued Technical Service Bulletins (TSBs) for headlamp condensation on other models, but a specific TSB for the 2013-2015 LX570 is not widely documented.

Technical Specifications

• Headlight Type: Projector High-Intensity Discharge (HID/Xenon) with Adaptive Front-lighting System (AFS).
• Low & High Beam Bulb Type: D4S. The high beam function uses the same D4S bulb with a shutter mechanism inside the projector. The assembly also contains a separate halogen high beam bulb (Type 9005) for flashing and supplemental high beam use.
• Key Components (Often Sold Separately):
  • HID Ballast (Control Module): Powers the HID bulb. A new OEM unit can cost over $600.
  • HID Igniter: Provides the initial high-voltage charge to start the bulb.
  • D4S Bulb: The light source itself. It's recommended to replace these in pairs to ensure matching color and brightness.
