2011-2013 Volvo C30 Grille: Decoding R-Design, Standard, and Lower Variants

Grille Variants for the 2011-2013 Volvo C30

For the 2011-2013 C30, which is the 'facelift' generation (starting from chassis #190000 in model year 2010), Volvo produced three primary front grilles that buyers need to distinguish between. Getting the wrong one means it either won't fit or won't match your vehicle's trim package. The main differences are between the upper grilles for R-Design and standard models, and the separate lower bumper grille.

1. Standard (Non-R-Design) Upper Grille

This is the most common grille. It features a black 'egg-crate' grid pattern, a chrome surround, and the signature large Volvo 'iron mark' emblem bisected by a chrome slash. It's designed for the base T5 models and gives the car a classic Volvo look.

• Part Number: 31290845 (replaces 31214621)
• Identifying Features: Large Volvo emblem with a diagonal chrome bar.

2. R-Design Upper Grille

The R-Design grille gives the C30 a sportier appearance. It has a similar honeycomb/egg-crate pattern but features a silk metal finish on the surround instead of bright chrome. Crucially, it replaces the large central Volvo emblem and slash with a smaller, offset R-Design badge. This grille is not interchangeable with the standard version without looking incorrect for the trim level.

• Part Number: 31290405
• Identifying Features: Silk metal (matte silver) frame and a small, offset R-Design logo. No large central emblem or chrome slash.

3. Center Lower Grille

Often overlooked, this grille fits into the lower opening of the front bumper on all 2010-2013 facelift models. It's a simple black plastic mesh piece that protects the A/C condenser and radiator from stones and debris. It is a separate part from the upper grille and is the same for both R-Design and standard models.

• Part Number: 31298075 (replaces 31214645)
• Identifying Features: Plain black mesh, fits in the lower bumper opening.

Symptoms of a Failing or Damaged Grille

Failure of a grille is almost always due to physical damage or cosmetic degradation rather than mechanical breakdown.

• Visible Cracks or Breaks: The most common symptom is damage from impacts with road debris, parking blocks, or minor fender benders. Cracks can compromise the grille's structural integrity.
• Broken Mounting Tabs: The grille is held in place by a series of plastic snap-lock clips. If these break, the grille can become loose, rattle, or even fall off the vehicle.
• Peeling or Faded Finish: The chrome or silk metal surround can peel, bubble, or fade due to UV exposure and weather. The black plastic can also fade to a dull gray over time.
• Damaged or Missing Emblem: The Volvo 'iron mark' emblem on the standard grille was known to peel. Volvo issued a technical journal (TJ 25957) and extended the warranty for this specific issue, as the emblem's layers could delaminate.

Buying a Used Grille: What to Check

A used OEM grille is often a great value compared to a new one, but careful inspection is key.

1. Verify All Mounting Tabs: This is the most critical check. The C30 upper grille has approximately ten snap-lock tabs around its perimeter. Inspect photos carefully or check in person to ensure all tabs are present and not cracked. A grille with broken tabs will not sit securely.
2. Check for Cracks: Look for hairline cracks, especially around the mounting points and corners where stress is highest. Even a small crack can spread over time.
3. Inspect the Finish: For standard grilles, check for any signs of the chrome surround peeling or bubbling. For R-Design grilles, check the silk metal finish for deep scratches or discoloration. Ensure the black plastic mesh isn't faded or brittle.
4. Confirm the Correct Version: Double-check whether you are buying a standard grille (with the large central emblem) or an R-Design grille (with the small offset badge). They are not the same. Also, confirm if you are buying the upper or lower grille.
5. Emblem Condition: On standard grilles, check the condition of the Volvo emblem. Given the known issue with peeling, finding a used one in perfect condition can be difficult. Be prepared that you might need to replace the emblem itself.

Installation Guide

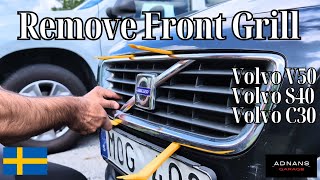

Replacing the upper grille on a C30 is a relatively simple DIY job. While some guides suggest removing the entire front bumper, it is often possible to remove the grille without doing so.

1. Gather Tools: You will need a set of plastic pry tools (trim removal tools) to avoid scratching your bumper's paint.
2. Release the Clips: The grille is held in by about ten snap-lock clips around its edge. Carefully insert a plastic pry tool between the grille and the bumper to release the clips. It's often easiest to start at the bottom and work your way around.
3. Remove the Grille: Once the lower clips are released, you should be able to pull the grille out from the top.
4. Install the New Grille: Installation is the reverse of removal. Line up the tabs on the new grille with the slots in the bumper and press firmly and evenly until all clips snap into place. 🎬 Watch this Volvo C30 front grille installation guide Give it a gentle pull to ensure it is secure.

Cost Comparison

Prices for C30 grilles can vary significantly based on type and condition.

Shop Labor: A professional shop would likely charge 0.5 to 1.0 hours of labor for this job, typically costing between $75 and $150.
