2013-2018 Toyota RAV4 Grille: A Guide to Facelifts, Trim Levels, and Radar Sensors

Grille Variations for the 2013-2018 (XA40) Toyota RAV4

Finding the correct grille for a 2012-2018 Toyota RAV4 requires careful attention to detail, as there are significant differences across the generation. The primary change occurred with the 2016 model year facelift.

Pre-Facelift: 2013-2015 Models

The initial fourth-generation RAV4 featured a design with a distinct upper grille and a larger, trapezoidal lower grille. These grilles are not interchangeable with the later 2016-2018 models.

• Upper Grille: Typically features a prominent chrome or silver accent piece that houses the Toyota emblem.
• Lower Grille: A simple, black textured plastic piece. The Partslink number TO1036141 often refers to this lower grille.

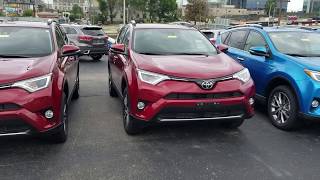

• Trim Differences: While most grilles were black plastic with chrome accents, specific finishes could vary between LE, XLE, and Limited trims.

Post-Facelift: 2016-2018 Models

The 2016 facelift introduced a much sleeker, more aggressive front end. The upper grille became a thin slit that blended into the headlights, and the lower grille was redesigned.

• Upper Grille: A narrow piece, often with a chrome or piano black finish, that connects the headlights.
• Lower Grille: The design varies significantly by trim. Base models like the LE might have a simple black mesh, while the SE trim features a sportier honeycomb pattern.
• Toyota Safety Sense (TSS): This is the most critical factor for 2016-2018 models. Many of these vehicles came equipped with TSS, which includes a forward-facing radar sensor mounted behind the Toyota emblem on the grille. Grilles and emblems designed for TSS-equipped vehicles are different from those without it and are not interchangeable. The emblem itself is a specific, smooth-surfaced piece that allows radar waves to pass through. Using the wrong grille or emblem can disable the pre-collision system and adaptive cruise control.

Symptoms of a Damaged Grille

Grille failure is almost always due to physical damage. Since it's at the very front of the vehicle, it's vulnerable to impacts.

• Visible Cracks or Holes: The most obvious symptom is physical damage from road debris or minor collisions. This can compromise the protection of the radiator and condenser.
• Loose or Rattling Noises: Broken mounting tabs or clips can cause the grille to become loose and vibrate or rattle, especially at higher speeds.
• Faded or Peeling Finish: Over time, sun exposure and weather can cause the plastic to fade or the chrome plating to peel, which is a cosmetic issue.
• Overheating: While rare, a grille that is severely clogged with debris like leaves or mud can restrict airflow to the radiator and contribute to engine overheating.
• Driver-Assist System Warnings: On 2016-2018 models, damage or misalignment of the grille can affect the TSS radar sensor, potentially causing warning lights on the dash and disabling safety features.

Known Issues, Recalls, and TSBs

As of early 2024, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Toyota or the NHTSA directly related to the grille of the 2013-2018 RAV4. The primary recall for this generation is NHTSA Recall No. 23V-734, which concerns a fire risk from improperly secured replacement 12-volt batteries. This issue is unrelated to the grille itself.

Buying a Used Grille: What to Check

A used OEM grille can be a great value, often providing better fit and durability than a cheap aftermarket alternative. Pay close attention to the following when inspecting a used part:

1. All Mounting Tabs Intact: This is the most critical inspection point. Carefully check the back of the grille for all mounting tabs and clip points. These are frequently broken during removal or in a minor impact. A grille with broken tabs will not install securely.
2. No Cracks: Inspect the entire surface, especially around the edges and mounting points, for any cracks. Even small cracks can spread over time.
3. Correct Year Range: Verify if the grille is for a 2013-2015 or a 2016-2018 model. They are not interchangeable.
4. TSS Radar Compatibility (2016-2018): If your RAV4 has Toyota Safety Sense, you MUST get a grille and emblem designed for the radar system. Check for the correct mounting points for the sensor bracket behind the emblem area. The emblem itself is also a specific part number.
5. Finish and Trim Level: Match the finish to your vehicle's trim (e.g., textured black for LE, chrome accents for Limited, honeycomb for SE). While a grille from a different trim might physically fit within the same year range, the appearance will be incorrect.
🎬 Watch: How to install a TRD Pro-style grille
6. Emblem Condition: Many used grilles are sold without the emblem. If it is included, check its condition. You can often transfer your old emblem if it's not damaged.

Installation Guide

Replacing the grille on a 2013-2018 RAV4 is a straightforward process, but it typically requires removing the entire front bumper cover.

• Difficulty: 2 out of 5
• Estimated Time: 1.5 - 2.5 hours
• Tools Needed: 10mm socket, Phillips screwdriver, flathead screwdriver, plastic trim removal tool, and potentially a tool for removing push-clips.

General Steps:

1. Open the hood and remove the plastic radiator sight shield by taking out several push-clips and/or 10mm bolts.
2. In each front wheel well, remove the screws and clips that secure the bumper cover to the fender liner and fender.
3. Underneath the front of the vehicle, remove all the 10mm bolts and push-clips holding the bumper to the splash shield.
4. Carefully pull the sides of the bumper cover away from the fenders. They will pop out of retaining clips under the headlights.
5. If you have fog lights or parking sensors, disconnect their wiring harnesses before fully removing the bumper.
6. Place the bumper cover on a soft surface, like a blanket, to prevent scratches.
7. From the back, release the clips and remove any screws holding the old grille(s) to the bumper cover.
8. Install the new grille, ensuring all clips snap securely into place. Transfer the emblem if necessary.
9. Re-install the bumper cover by reversing the removal steps.

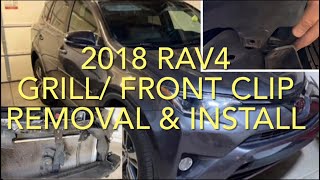

🎬 Watch: Step-by-step front grille and clip removal guide
