2001-2013 Toyota Corolla Grille: A Buyer's Guide to Generations and Trim

Understanding Corolla Grilles by Generation

The 2001-2013 Toyota Corolla spans three distinct generations, and the grilles are not interchangeable between them. A grille from a 2008 model will not fit a 2009, and a 2002 grille will not fit a 2003. Identifying your car's generation is the first and most important step in finding the correct part.

2009-2013 Corolla (10th Generation)

The 10th generation had a significant facelift for the 2011 model year, which changed the grilles and bumper. You must know whether your car is a pre-facelift (2009-2010) or post-facelift (2011-2013) model.

2011-2013 (Facelift)

• Upper Grille: Base, L, and LE models typically feature a grille with horizontal slats, often with a chrome accent on top. The S and XRS models have a sportier honeycomb or mesh pattern that gives the car a more aggressive look.
• Lower Grille: The lower bumper grille is a large, single piece. On models without fog lights, it's a simple black plastic mesh. Models with fog lights have openings for the lights within this lower grille assembly.

2009-2010 (Pre-facelift)

• Upper Grille: Similar to the later models, the Base, LE, and XLE trims used a slatted design, while the S and XRS trims featured a sport-style mesh grille.
• Lower Grilles: Unlike the facelift models, the 2009-2010 Corolla often used separate left and right lower grille inserts in the bumper cover, especially on models without fog lights.

2003-2008 Corolla (9th Generation)

The 9th generation also had a minor facelift around 2005, which primarily affected the grille design.

• 2005-2008 Models: The CE, LE, and S trims used a grille with a thicker chrome or body-colored frame surrounding a dark gray insert. The high-performance XRS model had a unique, body-colored grille with a mesh pattern.
• 2003-2004 Models: These early 9th-gen models had a simpler grille, often with a single horizontal bar or a more open design. Aftermarket mesh-style grilles are common for these years.
• Installation: On all 9th-gen Corollas, the upper grille is held in by screws and clips at the top and several plastic tabs at the bottom that snap into the bumper cover.

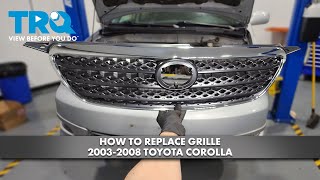

🎬 Watch: 2003-2008 Corolla grille replacement walkthrough

2001-2002 Corolla (8th Generation Facelift)

These models are part of the E110 chassis facelift. The grilles are specific to these two years for North American models.

• Upper Grille: A prominent center grille, often with a chrome surround, sits between the headlights.
• Lower Grilles: These models feature separate, smaller grille inserts on the driver (LH) and passenger (RH) sides of the lower bumper. These are often called 'fog light covers' on models not equipped with fog lights.

Symptoms of a Failing or Damaged Grille

Grille failure is almost always due to physical damage or cosmetic wear. There are no mechanical or electrical symptoms associated with the grille itself.

• Visible Cracks or Holes: The most common symptom is damage from road debris, parking lot bumps, or minor accidents. A cracked grille can detract from the car's appearance and, if the damage is severe, fail to protect the radiator.
• Loose Fitment or Rattling: The plastic clips and tabs that hold the grille in place can become brittle and break over time. This can cause the grille to become loose, rattle while driving, or even fall off completely.
• Faded or Peeling Finish: Over years of exposure to sun and weather, the black plastic can fade to a dull gray. Chrome or painted finishes can also start to peel, bubble, or delaminate.

Buying a Used 2001-2013 Corolla Grille: What to Check

A used OEM grille is often a better choice than a cheap aftermarket part due to superior fit and material quality. Here’s what to inspect before buying.

1. Verify the Exact Year Range and Trim: This is the most critical step. A grille from an 'S' model looks different from an 'LE' model. A 2010 grille will not fit a 2011. Double-check that the part you're buying matches your car's specific year and trim level.
2. Inspect All Mounting Tabs: Carefully flip the grille over and check every single mounting tab and clip location. These are essential for a secure, rattle-free fit. Even one broken tab can cause a section to sit loose. Many owners report lower grilles falling out because of damaged clips.
3. Check for Hidden Cracks: Small impacts can create hairline cracks that aren't obvious at first glance. Gently flex the grille and look closely around the edges and mounting points for any signs of stress or fracture.
4. Examine the Finish: Look for deep sun fading, clear coat failure on painted grilles, or pitting and peeling on chrome accents. While some fading on black plastic can be restored with trim products, peeling chrome cannot be easily repaired.
5. Confirm if it's Upper or Lower: Be clear about which part you need. The main 'grille' is the upper piece, but there are also lower bumper grilles. For 2001-2002 and 2009-2010 models, there are separate driver and passenger side lower grilles.

Installation Guide & Difficulty

• Difficulty: 1.5 / 5 (Easy)
• Estimated Time: 0.5 hours
• Tools Needed: Phillips head screwdriver, flathead screwdriver, trim removal tool.

For most 2001-2013 Corollas, replacing the upper grille does not require removing the front bumper.

1. Open the hood to access the top of the grille.
2. Remove the screws and/or plastic push-clips securing the top of the grille to the radiator support.
3. Gently pull the top of the grille forward.
4. Reach behind the grille and press down on the lower retaining tabs to release them from the bumper cover. There are typically 4-6 of these tabs along the bottom edge.
5. Once all tabs are released, the grille will come free.

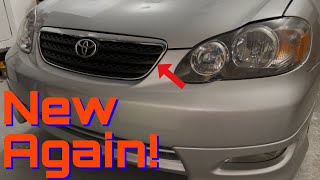

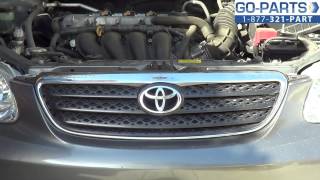

🎬 See: How to remove and install the front grille
6. Transfer the emblem from the old grille to the new one.
7. Installation is the reverse of removal. Align the bottom tabs first, snap them into place, and then secure the top with the original clips and screws.

Cost Comparison

Known Issues, Recalls, and Service Bulletins

There are no recalls or common Technical Service Bulletins (TSBs) directly related to the grille on 2001-2013 Toyota Corollas. The most common owner complaints involve the lower bumper grilles becoming loose or falling out after minor impacts or due to broken clips. This is typically resolved by replacing the grille and ensuring all clips are properly seated.
