2020-2023 Tesla Model Y Grille Shutter: Failure Alerts and Replacement Guide
Learn to diagnose common grille shutter error codes, what to inspect on a used unit, and what's involved in replacing the active shutter assembly on your Model Y.
- The most common sign of failure is an on-screen alert, typically 'VCFRONT_a192' or 'VCFRONT_a158', not physical overheating.
- Replacement requires removing the front bumper and a software calibration using Tesla's service tools is necessary for proper function.
- When buying a used part, the most important checks are for physical damage to the shroud, smooth movement of the louvers, and the integrity of the electrical connector.
- Driving with a failed shutter is possible, but may result in reduced vehicle performance and slower DC fast-charging speeds.
Symptoms of a Failing Grille Shutter Actuator
The most common symptom of a failing grille shutter on a Tesla Model Y is not a physical sign, but a specific error message on the center touchscreen. Unlike cars with internal combustion engines, you are unlikely to notice engine overheating, but you may experience reduced performance.
- On-Screen Alerts: The primary indicator is a warning message from the Front Vehicle Controller (VCFRONT). An alert such as VCFRONT_a192, which reads "Electrical system is unable to support all features," is a general fault that can be triggered by a grille shutter problem. Another specific code, VCFRONT_a158_louverDisconnected, directly points to a communication issue with the shutter motor.
- Performance Limitations: If the vehicle cannot control the shutter, it may limit powertrain performance or charging speed to protect the battery and motors from potential overheating.
- Reduced A/C Performance: In some cases, the climate control system's performance may be limited.
- Unusual Noises: A rattling, clicking, or grinding sound from the front of the vehicle could indicate that the shutter is physically broken, loose, or that its motor is struggling to operate. This could be caused by debris or damage from a minor impact.
Buying a Used Grille Shutter Assembly: What to Check
The grille shutter is sold as a complete assembly, including the outer frame (shroud), the louvers, and the actuator motor. When purchasing a used OEM unit, a thorough physical inspection is critical to ensure you're getting a functional part.
Pro Tip: For this part, a used OEM assembly is often a better choice than a new aftermarket one. OEM parts guarantee perfect fitment with the cooling fan module and correct communication with the vehicle's computer, avoiding the compatibility issues that can arise with aftermarket electronics.
Inspection Checklist:
- Verify Part Numbers: Check that the part number on the unit matches the required number for your vehicle. Common part numbers for the 2020-2023 Model Y are 1493995 and 1494159. Some sources indicate these may fit up to the 2025 model year, but always verify compatibility for your specific vehicle.
- Inspect the Main Shroud: Carefully check the entire plastic frame for any cracks, especially around the mounting points. Damage here can prevent the assembly from seating correctly.
- Check the Louvers (Flaps): Manually and gently move the horizontal louvers. They should all move together smoothly and without binding. Look for any cracked or broken individual slats.
- Examine the Actuator Motor: The actuator is the small motor attached to the side of the shroud. 🎬 See how these actuators are replaced on a similar Tesla model. Inspect its housing for cracks or signs of damage.
- Check the Electrical Connector: The electrical connector on the actuator is the most critical inspection point. Ensure the connector housing isn't cracked and that the pins inside are straight and free of corrosion. A damaged connector is a major red flag.
- Look for Debris Damage: Check for signs of impact from road debris, which can jam the mechanism or break the plastic louvers.
Cost to Replace a Model Y Grille Shutter
The cost can vary significantly based on whether you choose a new, used, or aftermarket part and whether you perform the labor yourself.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $220 - $270 |
| New Aftermarket | $90 - $100 (Often sold without the motor) |
| Used OEM | $80 - $150 |
| Shop Labor | $200 - $400 |
Grille Shutter Replacement Overview

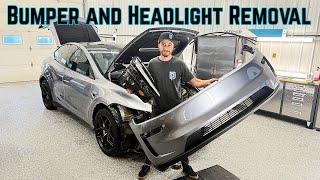

Replacing the grille shutter assembly is a moderately difficult job that requires removing the front bumper fascia. 🎬 Watch this video for a detailed bumper and headlight removal walkthrough. While a DIY replacement is feasible for someone with mechanical experience, it involves numerous steps.
The general process includes:
- Disconnecting the 12V power.
- Removing the underhood storage unit (frunk tub).
- Removing the front bumper cover (fascia). 🎬 Watch: Step-by-step guide to removing the Model Y front bumper.
- Disconnecting the electrical connector for the actuator and the ambient temperature sensor.
- Releasing the clips and bolts that secure the shutter assembly to the cooling fan module.
- Installation is the reverse of removal.
Warning: After installation, a calibration routine must be performed using Tesla's service software (Toolbox). The command PROC_VCFRONT_X_LOUVER-CALIBRATION is used to calibrate the new part. Without this step, the system may not function correctly. A thermal performance test should also be run.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific NHTSA recalls for the grille shutter actuator on the 2020-2023 Tesla Model Y. Most recalls for this vehicle have been related to software, seat belts, or other components. The failure of the grille shutter is typically an individual component issue rather than a widespread, recall-worthy defect. There are no specific Technical Service Bulletins (TSBs) found for this part, though general bulletins for electrical or body issues may exist. Some owners have reported that rodent damage to the front-end wiring harness can cause the louver to become disconnected.
Frequently Asked Questions (FAQ)
What is the error code VCFRONT_a192 or VCFRONT_a158?
VCFRONT_a192 is a general alert that the vehicle's electrical system is shedding load and disabling some features. While it can be caused by a failing 12V battery, it can also be triggered by a faulty component like the grille shutter actuator. VCFRONT_a158 is more specific, indicating the front louver (grille shutter) motor is disconnected or not communicating with the controller.
Can I drive my Model Y with a broken grille shutter?
Yes, but with limitations. The vehicle is drivable, but to prevent overheating, the car's software may automatically limit charging speeds and motor power, especially in hot weather or during demanding driving. It is recommended to have the issue serviced to restore full performance and thermal management capabilities.
Does a replacement grille shutter need to be programmed?
Yes, a calibration procedure is required after replacement. This is done using Tesla's service software to ensure the new actuator's range of motion is correctly recognized by the vehicle controller. Failure to calibrate the part may result in persistent error codes.
Is the grille shutter the same as the radiator fan?
No. The grille shutter is a separate assembly that mounts directly in front of the cooling fan module and radiator. The shutter controls airflow *to* the radiator, while the fan pulls air *through* the radiator. They work together as part of the car's thermal management system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1493995 1494159 1634325-00-A
Complete front radiator cooling fan shroud with integrated active air shutter and actuator motor.
