2021-2025 Tesla Model S & Model X Grille Shutter Actuator Failure: Errors, Diagnosis, and Replacement
This guide covers the common failure symptoms, error codes, and replacement procedure for the active grille shutter actuator on refreshed Tesla Model S and Model X vehicles.
- This part only fits the 'Refresh' 2021-2025 Model S and Model X. It is not compatible with earlier models.
- Failure almost always triggers a touchscreen alert, such as 'VCFRONT_a158_louverDisconnected'.
- Replacement requires removing the front bumper on the Model S, and the frunk tub on the Model X.
- After installation, a 'Thermal System Test' must be run from Service Mode to calibrate and verify the new part.
Compatibility Warning: 2021+ Refresh Models Only
Important: This guide and the part numbers referenced apply ONLY to the 'Refresh' Tesla Model S and Model X, which began production in mid-2021. These vehicles feature a horizontal center touchscreen and a redesigned front end. This part will not fit earlier 2016-2020 Model X or 2016-2020 Model S vehicles, as they use a different active shutter assembly. Please verify your vehicle's model year and build date before ordering a replacement part.
Symptoms of a Failing Grille Shutter Actuator
A problem with the active grille shutter will almost always trigger an alert on the vehicle's touchscreen. You may see one or more of the following symptoms:
- Vehicle Alerts on Touchscreen: This is the most common sign of a problem. You may see specific error codes related to the front vehicle controller (VCFRONT). A common alert is VCFRONT_a158_louverDisconnected, which directly indicates the car has lost communication with the shutter motor. You might also see more general electrical system errors like VCFRONT_a192 ("Electrical system is unable to support all features"), which can be triggered by this fault.
- Limited Performance: To protect the battery and motors from potential overheating, the vehicle may limit powertrain performance if it detects a cooling system fault.
- Climate Control (A/C) Issues: The air conditioning system relies on proper airflow. A malfunctioning shutter can sometimes lead to reduced A/C performance.
- Overheating Warnings: In more serious cases, especially during fast charging or spirited driving in warm weather, you may get a warning that the vehicle is overheating.
- Visible Damage or Misalignment: You may be able to see that the shutter slats behind the grille are stuck open, stuck closed, or appear crooked. They can be damaged by road debris.
- Rattling Noises: A loose or broken shutter assembly can cause rattling sounds from the front of the vehicle, especially while driving.
Diagnosing the Problem
If you suspect a grille shutter issue, you can perform a few checks:
- Check for Obstructions: With the vehicle safely parked and turned off, look into the lower front grille opening with a flashlight. Check for leaves, plastic bags, ice, or other road debris that could be jamming the shutter mechanism.
- Enter Service Mode: Tesla's Service Mode allows you to run diagnostic tests. Access Service Mode through the touchscreen (Controls > Software > Hold down the model name > type "service"). Once in Service Mode, navigate to the Thermal section and run the "Test Thermal Performance" or a similar thermal system test. This test should command the shutter to open and close, allowing you to visually confirm if it's working.
- Visual Inspection: If the test fails or the shutter doesn't move, the actuator motor has likely failed or its linkage is broken.
Buying a Used Grille Shutter Actuator
A used OEM actuator assembly is a cost-effective and reliable alternative to a brand-new part. Since aftermarket options are virtually nonexistent for this component, a recycled OEM part is often the best choice outside of buying new from Tesla. Here's what to look for:
- Verify the Part Number: Ensure the part is number 1588209-00-C or a later revision compatible with the 2021+ Model S and X. Do not purchase part number 1034850-00-E, as it is for the older, pre-refresh Model X.
- Inspect the Physical Condition: Look for any cracks in the black plastic housing or the shutter slats themselves. Check that all mounting tabs are intact.
- Check the Linkage: Gently try to move the actuator's linkage arm by hand. It should move smoothly without binding or feeling excessively loose. If it's seized or disconnected, the part is bad.
- Examine the Electrical Connector: The connector pins should be clean, straight, and free of any green or white corrosion. A damaged connector can cause intermittent communication errors.
- Source from a Reputable Seller: Purchase from a recycled parts seller that offers a warranty and has good reviews. This provides protection in case the part is defective.
Replacement Overview & Difficulty
Replacing the active grille shutter actuator is a moderately difficult job that requires removing the front bumper cover (fascia). The exact procedure differs slightly between the Model S and Model X.
- Difficulty Rating: 3 out of 5
- Estimated Time: 2-4 hours for a DIY mechanic.
- DIY Feasible: Yes, for those comfortable with removing body panels and working with plastic clips.
General Steps (Model S): 🎬 Watch: Step-by-step guide to removing the Model S front bumper.
- Disconnect the 12V power supply.
- Remove the front bumper fascia assembly. This involves removing numerous clips, bolts in the wheel wells, and bolts under the hood.
- With the fascia removed, the shutter assembly is accessible. Disconnect the electrical connector.
- Release the locking tabs holding the shutter assembly to the cooling fan module and remove it. 🎬 Watch: How to swap out the louver actuators once accessible.
- Installation is the reverse of removal. Afterwards, perform a Thermal System Test in Service Mode to verify the repair.

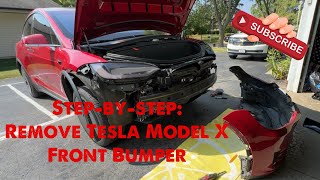

General Steps (Model X): 🎬 See this walkthrough for removing the Model X bumper cover.
- The process for the Model X is more involved. In addition to removing aero shields, you must also remove the underhood storage unit (the "frunk" tub) and potentially the HEPA filter assembly to gain access.
- Once these components are out, you can access and disconnect the actuator's electrical connector.
- The shutter assembly is then unclipped from the cooling fan shroud.
- Installation is the reverse of removal. A Thermal System Test is also required after the repair is complete.
Pro Tip: When removing the front fascia, lay down a blanket or soft mat to prevent scratching the paint. Having a second person to help guide the bumper off and on is also highly recommended.
Cost to Replace a Grille Shutter Actuator
| Part Type | Estimated Cost |
|---|---|
| New OEM (from Tesla) | $350 - $500 (part only) |
| Used OEM | $150 - $300 (part only) |
| Shop Labor Cost | $300 - $600 |
| Total Estimated Cost (Shop) | $650 - $1100 |
Note: Prices are estimates as of early 2026 and can vary based on location, supplier, and vehicle condition. Some service centers may only replace the entire cooling module assembly at a higher cost.
Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for active grille shutter failure on the 2021-2025 Tesla Model S and Model X. Most failures are isolated incidents due to wear, software glitches that are often fixed with an over-the-air (OTA) update, or damage from road debris.
Frequently Asked Questions (FAQ)
Can I drive my Tesla with a broken grille shutter actuator?
Yes, but it is not recommended for extended periods. The vehicle will protect itself by limiting performance to prevent overheating, and your A/C may not function correctly. You should schedule service to avoid potential long-term stress on the battery and powertrain components.
Do I need to program a new grille shutter actuator?
No, direct programming is not required. However, after installation, you must run the "Thermal System Test" in the vehicle's Service Mode to ensure the controller recognizes the new part and confirms it is operating correctly.
Will a software update fix a grille shutter error?
Sometimes, yes. If the error is caused by a software glitch, an over-the-air (OTA) update from Tesla can resolve it. However, if the error persists after an update or is accompanied by a specific code like `VCFRONT_a158_louverDisconnected`, it almost always indicates a hardware failure (the actuator itself, wiring, or a physical obstruction).
Is the grille shutter the same on the Model S Plaid and Model X Plaid?
Yes, the refreshed Model S (Long Range and Plaid) and refreshed Model X (Long Range and Plaid) built from mid-2021 onward share the same basic thermal architecture and use the same active grille shutter assembly, part number 1588209-00-C.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1588209-00-C
Motorized louver assembly for active aerodynamic and thermal management.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
