2020-2025 Honda CR-V Grille Shutter Failure: Codes, Causes, and Replacement Guide
Diagnose a faulty active grille shutter on your 2020-2025 CR-V, understand common failure points, and learn what to inspect on a used replacement part.
- The most common failure is physical damage from road debris lodging in the mechanism.
- A check engine light with code P059F is the primary electronic symptom of a fault.
- Replacement requires removing the front bumper cover but does not need special programming.
- When buying a used part, thoroughly inspect the plastic frame for cracks and manually check that the linkage moves smoothly.
Symptoms of a Failing Grille Shutter Actuator
When the grille shutter assembly on a 2020-2025 Honda CR-V fails, it typically presents several distinct symptoms. Being aware of these signs can help you diagnose the problem quickly.
Check Engine Light and Warning Messages

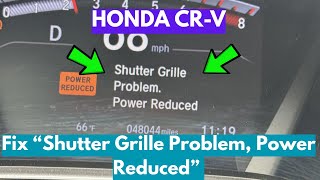

The most common indicator of a problem is a "Check Engine" light or a specific warning message on the multi-information display, such as “Shutter Grille Problem, Power Reduced.” 🎬 Watch this video on the 'Shutter Grille Problem' warning light. The onboard computer monitors the shutter's position, and if it detects that the shutter is stuck, not responding, or its position doesn't match the command, it will trigger a Diagnostic Trouble Code (DTC). The most common code associated with this issue is P059F - Active Grille Air Shutter 'A' Performance/Stuck Off. Other related codes can include P05A3, P05A8, and P05C0, which often point to specific actuator or sensor failures.
Visible Damage or Obstruction
The grille shutter assembly is located at the front of the vehicle, making it vulnerable to road debris. Small rocks, ice, or other objects can get lodged in the mechanism, preventing the vanes from opening or closing. In some cases, an impact can cause physical damage, breaking the plastic vanes or the linkage that connects them to the actuator motor. A visual inspection can often reveal if the shutters are stuck in one position, cracked, or blocked by debris.
Reduced Fuel Economy or Overheating
While less common, a malfunctioning grille shutter can affect performance. If the shutter is stuck open, the vehicle's aerodynamics are compromised, which may lead to a slight decrease in fuel efficiency, especially at highway speeds. If the shutter is stuck closed, it can restrict airflow to the radiator, potentially causing the engine to run hotter than normal, particularly in stop-and-go traffic or hot weather.
Known Issues, TSBs, and Recalls
As of now, Honda has not issued any major recalls or Technical Service Bulletins (TSBs) for widespread, systemic failure of the grille shutter assembly on the 2020-2025 CR-V. However, some internal dealership communications indicate Honda is investigating instances of shutter grille and charging system error messages on 2023-2024 models, which may be related to LIN communication errors (DTCs P16E8 or P16E3). 🎬 See how the shutter grille can cause a charging system error. The most prevalent issues reported by owners are related to physical damage from road debris and occasional software glitches that may resolve after restarting the vehicle.
Compatibility Warning: The initial prompt data contained conflicting information regarding engine compatibility. Research confirms that different part numbers exist for different model year ranges and potentially for upper vs. lower shutters. For example, part number 71300-TLA-A51 is listed for the 2020-2022 CR-V (both 1.5L and 2.0L Hybrid models), while 71350-3A0-A01 is specified for the lower shutter on 2023-2025 models. Always verify the exact OEM part number for your vehicle's specific year and engine type before purchasing.
Buying a Used Grille Shutter Actuator: What to Check
A used OEM grille shutter assembly can be a cost-effective alternative to a new part. However, a thorough inspection is crucial to ensure you are getting a functional component.
- Inspect the Frame and Vanes: Carefully check the entire plastic assembly for any cracks, stress marks, or broken pieces. Pay close attention to the mounting tabs, as these are critical for proper installation. Ensure all the individual shutter vanes are present and not bent or cracked.
- Test the Linkage Manually: Gently try to move the vanes by hand. They should move together smoothly and without binding. If they feel stiff, seized, or if some vanes move while others don't, the internal linkage is likely damaged.
- Check the Actuator Motor and Connector: Examine the actuator motor housing for cracks or signs of damage. Look closely at the electrical connector pins to ensure they are straight, clean, and free of corrosion. Water intrusion can damage the connector, leading to electrical failure.
- Verify the Part Number: Double-check that the OEM part number on the used assembly matches the required part for your CR-V's year, model (1.5L Gas or 2.0L Hybrid), and position (upper or lower).
Pro Tip: Choosing a used OEM assembly over a cheap aftermarket alternative is often the better choice. OEM parts guarantee correct fitment and are made from materials designed to meet Honda's durability standards. Aftermarket parts can sometimes have issues with fit, connector compatibility, or motor calibration, potentially leading to persistent error codes.
Cost Comparison
The cost of replacing a grille shutter assembly can vary significantly based on the source of the part and labor rates.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $190 - $800+ (depending on upper/lower and model year) |
| New Aftermarket | $115 - $250 |
| Used OEM | $75 - $200 |
| Shop Labor | $150 - $300 |
Replacement Difficulty: 2/5
Replacing the grille shutter assembly is a manageable DIY project for someone with basic mechanical skills. The primary challenge is the need to remove the front bumper cover 🎬 Watch this step-by-step CR-V front bumper removal guide. to access the shutter assembly. This process involves removing numerous plastic clips and several screws. Once the bumper is off, the shutter assembly itself is typically held in place by a few bolts or clips and is straightforward to swap out. No special programming or calibration is required after installation; the system performs a self-check every time the vehicle is started.
Frequently Asked Questions (FAQ)
Can I drive my CR-V with a broken grille shutter?
Yes, but it's not recommended for extended periods. The vehicle will be drivable, but the check engine light will remain on, which will cause it to fail an emissions test. You may also experience slightly reduced fuel economy or, if the shutter is stuck closed, a higher engine operating temperature.
What is the most common cause of grille shutter failure on the CR-V?
The most common cause of failure is physical damage from road debris, such as rocks or ice, striking the front of the vehicle. This can break the plastic vanes or jam the mechanism, preventing it from operating correctly.
Do I need to program a replacement grille shutter assembly?
No. The active grille shutter system on the Honda CR-V is self-calibrating. After installing the new part, the system will automatically perform a calibration cycle the next time you start the vehicle.
Will a bad grille shutter cause my CR-V to overheat?
It's possible, but not guaranteed. If the shutter fails in the closed position, it will restrict airflow to the radiator. This could cause the engine to run hotter than normal, especially in heavy traffic or hot climates. However, the vehicle's primary cooling fan should still prevent catastrophic overheating in most situations.
Helpful Videos
Technical Specifications
OEM Part Numbers: 71300-TLA-A51 71350-3A0-A01 713503A0A01 71320-3D4-A00
The system operates on the vehicle's 12V DC electrical system and communicates with the Engine Control Module (ECM) via a LIN bus connection.
