2016-2019 Ford Explorer & Police Interceptor Grille Shutter Failure: Causes, Costs, and Fixes

Symptoms of a Failing Grille Shutter Actuator

When the grille shutter actuator or the shutter assembly fails, it can cause several noticeable issues. The most common sign is an illuminated Check Engine Light on your dashboard.

• Check Engine Light: The most frequent symptom is a Check Engine Light with diagnostic trouble code (DTC) P059F - Active Grille Air Shutter 'A' Performance/Stuck Off stored in the powertrain control module (PCM).
• Engine Overheating: If the shutters fail in the closed position, they can block airflow to the radiator. This can cause the engine to run hotter than normal or overheat, especially in stop-and-go traffic or warm weather.
• Slow Engine Warm-Up: If the shutters get stuck open, the engine may take much longer to reach its normal operating temperature, particularly in cold climates. This can lead to reduced fuel efficiency and poor heater performance.
• Visible Shutter Issues: You may notice that the shutters are stuck in one position (either open or closed) and do not move during the vehicle's startup sequence. A healthy system will perform a self-test, cycling the shutters open and closed, when the vehicle is started.
🎬 See this tech tip on how the shutter system operates.

Known Issues for 2016-2019 Ford Explorer & Police Interceptor Utility

This grille shutter assembly is a common failure point. While the actuator motor itself can fail, the issue often lies with the plastic components of the assembly which become brittle over time or are damaged by road debris.

• Broken Stop Tabs: The shutter frame has small plastic tabs that act as stops for the open and close positions. These tabs can break off, causing the actuator to over-rotate while trying to find its home position. This continuous searching prevents calibration and triggers the P059F code.
• Sheared Actuator Shaft: The plastic shaft that connects the actuator motor to the shutter linkage can shear or break, disconnecting the motor from the shutters. The motor may still run, but the shutters won't move.
• Debris Obstruction: Ice, snow, rocks, or other road debris can get lodged in the shutter assembly, physically preventing it from moving and potentially damaging the motor or linkage.

Diagnosing the Grille Shutter System

Before buying a replacement part, follow these steps to confirm the failure:

1. Visual Inspection: Look through the front grille for any obvious obstructions like leaves, plastic bags, or rocks. Also, check for any broken or misaligned shutter fins.
2. Observe on Startup: Have a helper start the vehicle while you watch the shutters. They should cycle fully open and then closed (or vice-versa) as part of a self-test. If they don't move at all, or if they try to move but can't, it points to a problem.
3. Check the Fuse: A blown fuse can disable the system. The fuse for the active grille shutters is located in the engine compartment fuse box on the driver's side of the engine bay. Consult your owner's manual for the specific fuse number and rating.
4. Scan for Codes: Use an OBD-II scanner to confirm the presence of the P059F code. 🎬 Watch: How to diagnose and fix the P059F fault code. This is the most definitive sign of a system fault.

Buying a Used Grille Shutter Actuator Assembly

Because the actuator is most often sold with the complete shutter assembly, buying a used OEM part can be a cost-effective solution. However, it's critical to inspect the used part carefully to avoid buying another faulty unit.

What to Inspect on a Used Part:

• Check All Plastic Linkages: Carefully examine all the moving parts, especially the main arm that connects to the actuator. Look for stress marks (white discoloration) or fine cracks.
• Inspect the Stop Tabs: This is critical. Find the small plastic tabs on the frame that stop the shutters at their fully open and closed points. Ensure they are present and not cracked or broken off. A missing stop tab will cause the replacement part to fail immediately upon installation.
• Examine the Actuator Shaft Mount: Look at where the actuator motor mounts to the shutter frame. Ensure the plastic is intact and the drive socket where the motor shaft engages is not stripped or sheared.
• Test for Free Movement: Gently try to move the shutters by hand. They should move smoothly without binding or catching. If they feel stiff or gritty, the mechanism may be damaged internally.
• Check the Electrical Connector: Inspect the actuator's electrical connector for any bent, corroded, or broken pins. Ensure the connector housing isn't cracked or damaged.

For a component like this, a quality used OEM part is often a better choice than a cheap, new aftermarket part. The original Ford part is designed for precise fitment and communication with the vehicle's computer, while some aftermarket parts can have quality control issues.

Cost to Replace the Grille Shutter Actuator

The actuator is typically replaced as a complete assembly with the shutters. Here is an estimated cost breakdown:

Replacement Overview & Difficulty

Replacing the grille shutter assembly is a moderately difficult job that can be done by a patient DIYer with basic tools.

• Difficulty: 3 out of 5
• Estimated Time: 2-4 hours
• Key Step: The front bumper cover must be removed to access the shutter assembly. This involves removing numerous plastic clips, 7mm, 8mm, and 10mm bolts in the wheel wells, under the bumper, and across the top of the grille area.

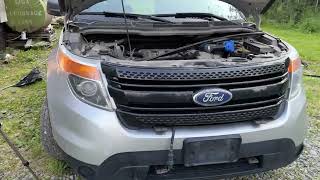

🎬 Watch: Step-by-step guide to removing the front bumper and grille.
• Tricky Part: On the 2016-2019 models, there are three 10mm bolts on each side, located between the bumper cover and the fender, that are difficult to access. A flex-head ratcheting wrench is highly recommended for these bolts.
• Calibration: No special programming is required. Once the new assembly is installed and plugged in, it will perform a self-calibration the first time the vehicle is started.

Frequently Asked Questions (FAQ)

Compatible Part Numbers

The following OEM part numbers are for the complete grille shutter assembly and are known to be compatible. The most current part number is JB5Z-8475-A.

• FB5Z-8475-A
• FB5Z-8475-B
• FB5Z-8475-C
• FB5Z-8475-D
• JB5Z-8475-A (replaces all previous versions)
