2019-2023 BMW X5 (G05) Active Air Flap Failure: Warnings, Warranty, and Replacement
This guide explains the common 'active air flap' check engine light on the 2019-2023 BMW X5, how to diagnose it, and your options for repair, including a critical warranty extension.
- This is a very common failure, and BMW has extended the warranty for the active air flaps to 15 years/150,000 miles for defects in workmanship.
- The most common symptom is a Check Engine Light combined with an 'Air flap control' warning message on the iDrive screen.
- Replacement requires removing the entire front bumper cover, making it a labor-intensive job with a high labor cost if not covered by warranty.
- The warranty does NOT cover damage from road debris; if a rock breaks the shutter, the repair is not free.
Symptoms of a Bad Grille Shutter Actuator
When the active air flap system fails on a 2019-2023 BMW X5, the symptoms are usually very clear. You will almost certainly not have to guess what the problem is.
- Check Engine Light: This is the most common symptom. The vehicle's computer continuously monitors the flaps, and if they don't move as commanded, it will trigger a fault and illuminate the Malfunction Indicator Lamp (MIL), also known as the check engine light.
- iDrive Warning Message: Along with the check engine light, you will likely see a specific message on the iDrive screen, such as 'Air flap control: Grille shutter jammed' or a similar warning.
- Loud or Constant Cooling Fan: If the shutters are stuck closed, the car may not get enough air for cooling while stationary or at low speeds. To compensate, the electric cooling fan may run at high speed, which can be noticeably loud, sometimes described as sounding like a 'jet fighter'.
- Stuck Shutters: A visual inspection may show the shutters are stuck in the open or closed position. They often remain open for a minute after the car is turned off and then close. If they are always closed or always open, there is likely a fault.
- Fault Codes: A diagnostic scan tool will find specific codes stored in the engine control unit. Common generic codes include P05A0 and P059F. 🎬 Watch: Understanding fault codes and how the shutters function. BMW-specific codes are more detailed and can point to the upper or lower flap assembly, with codes like 13820D, 138204, 138209, and 21B043 being common.
Known Issues: A Very Common Problem with a Warranty Extension
Failure of the active air flap system is one of the most common issues for the G05 BMW X5. The components are plastic and live at the very front of the vehicle, where they are exposed to road debris, weather, and impacts. Failures are frequently caused by the actuator motor burning out, the plastic linkage breaking, or debris like a rock or ice jamming the mechanism.
Due to the high failure rate, BMW of North America has extended the warranty on the upper and lower active air flap assemblies.
Pro Tip: BMW has extended the limited warranty for the Radiator Grille Upper and Lower Active Air Flaps to 15 years or 150,000 miles from the original in-service date. This covers defects in materials or workmanship. If your vehicle is within this age and mileage, and the failure is not caused by external damage, a BMW dealer should replace the faulty part for free.
It is important to note that this warranty does not cover damage from outside influence. If the dealer determines a rock or other road debris broke the shutter, they will likely deny the warranty claim, and you will be responsible for the cost of repair.
Warning: This part fits standard 2019-2023 BMW X5 models (sDrive40i, xDrive40i, xDrive50i, M50i, etc.). It will NOT fit the high-performance X5 M model, which uses a different front bumper and grille design.
Buying a Used Grille Shutter Assembly
If your vehicle is outside the extended warranty or the failure is due to damage not covered by it, a used OEM part can be a cost-effective solution. However, since this part is a known common failure item, there are things to consider before buying a used one.
- Physical Inspection: Before purchasing, carefully inspect the entire assembly. Look for any cracks in the frame or the shutter flaps themselves. Check for signs of impact or stress marks on the plastic.
- Check the Linkage: Gently try to move the flaps by hand. They should move together smoothly without binding or excessive force. If they feel gritty or stuck, the mechanism may be damaged.
- Inspect the Actuator and Connector: Look at the actuator motor and its electrical connector. Ensure there are no cracks in the housing and that the connector pins are clean, straight, and free of corrosion.
- Source and Mileage: Try to buy from a reputable recycler that provides the mileage of the donor vehicle. A part from a low-mileage vehicle is preferable, as failures are known to occur between 40,000 and 80,000 miles. A warranty from the seller is a major plus.
- Why Used OEM is a Good Choice: A used original BMW part is often a better choice than a new, cheap aftermarket part. The OEM part is designed to communicate perfectly with your vehicle's computer systems. Some aftermarket parts can cause communication errors or may not have the same durability, leading to another failure down the road.
Replacement Overview & Difficulty

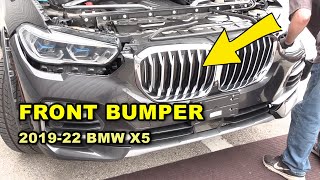

Replacing the grille shutter assembly is a moderately difficult job that requires removing the entire front bumper cover. 🎬 See this step-by-step guide for removing the front bumper. While it doesn't require highly specialized tools, it is a tedious and involved process.
- Difficulty: 3.5 out of 5
- Estimated Time: 3-5 hours for a first-timer.
- Process Summary: The job involves jacking up the front of the car, removing the front wheels, and undoing numerous screws and clips in the wheel wells, under the engine, and on top by the radiator support. You must carefully disconnect various sensors, including parking sensors, cameras, and potentially radar sensors, before the bumper can be fully removed. Once the bumper is off, the shutter assemblies are easily accessible and can be unbolted and replaced. 🎬 Watch: A walkthrough of the lower grille shutter replacement. Reassembly is the reverse of removal, paying close attention to reconnecting all electronics.
- Calibration: Some sources suggest a calibration sequence may be required after replacement, which could involve a specific driving procedure or the use of a high-end diagnostic tool. In many cases, the system may self-calibrate after a few ignition cycles.
Cost of Replacement
The cost can vary dramatically depending on whether the repair is covered by warranty.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Assembly (Dealer) | $350 - $510 per assembly (upper or lower) |
| New Aftermarket Assembly | $60 - $200 |
| Used OEM Assembly | $250 - $450 |
| Shop Labor (Bumper R&R) | $500 - $1200+ |
| Dealer Repair (Out of Warranty) | $1400 - $2000+ |
| Dealer Repair (Warranty) | $0 |
Frequently Asked Questions
Can I still drive my X5 with a bad grille shutter actuator?
Yes, but you should have it checked. The car is drivable, but you will have a persistent check engine light and warning message. If the shutters are stuck closed, there is a risk of the engine running hotter than normal, especially in warm climates or heavy traffic, which could lead to overheating. If they are stuck open, your fuel economy may be slightly reduced and the engine may take longer to warm up in cold weather.
Will a bad actuator cause my X5 to overheat?
It's possible, but not guaranteed. If the shutters fail in the closed position, they will restrict airflow to the radiator. The vehicle's primary cooling fan will run at a higher speed to compensate, but in demanding situations like towing, climbing a grade, or driving in very hot weather, the risk of overheating increases.
Why did the dealer say my repair isn't covered by the warranty extension?
The 15-year/150,000-mile warranty extension only covers defects in materials or workmanship. If the shutter assembly was broken by an impact—such as a rock from the road, a parking curb, or an animal strike—it is considered 'outside influence' and is not covered by the warranty. In these cases, the repair cost is the owner's responsibility.
Do I need to replace both the upper and lower shutters if only one has failed?
Not necessarily. Early on, some BMW service bulletins recommended replacing both assemblies if one failed. However, later procedures and the general practice now is to only replace the specific assembly (upper or lower) that has stored a fault code. If you are paying for the repair out of pocket, you only need to replace the broken part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 51745A29C48 51749465533 5A29C48
The system consists of an upper and a lower active shutter assembly. Each assembly contains an integrated actuator motor. Part number 51745A29C48 supersedes 51749465533 for the lower assembly.
