2017-2025 Audi Q7 Grille Shutter Actuator: P05A0 Fault, TSB, and Replacement
This guide explains the common 'Drive system malfunction' warning, details the known issues covered by a Technical Service Bulletin, and outlines the replacement process for the Audi Q7's active grille shutter actuator.
- The most common symptom of failure is a Check Engine Light with fault code P05A0 and a 'Drive system malfunction' warning.
- The issue is well-known, and Audi issued Technical Service Bulletin (TSB) 2048402 for the 2017-2019 Q7, which recommends replacing the actuator motor if a software update fails.
- Replacement is a complex job requiring removal of the front bumper and headlights, with a mandatory electronic calibration (adaptation) needed afterward.
- You can often save significant money by replacing only the actuator motor (around $50-$75) instead of the entire shutter assembly (around $350-$510).
Symptoms of a Failing Grille Shutter Actuator
When the grille shutter actuator on a 2017-2025 Audi Q7 begins to fail, it typically provides clear warnings. The vehicle's computer monitors the shutter position and will alert you when something is wrong.
- Check Engine Light: This is the most common symptom. A diagnostic scan will almost always reveal the fault code P05A0 (Active Grille Air Shutter 'A' Stuck On). Other related codes like P05A2 (Control Circuit/Open) or P05A3 (Control Circuit Range/Performance) may also appear.
- Dashboard Warning Message: You will likely see a "Drive system malfunction" or similar warning in the instrument cluster.
- Auto Start/Stop System Disabled: The vehicle may disable the automatic start/stop function as a precaution when this fault is detected.
- Growling or Clicking Noises: Some owners report hearing a buzzing, clicking, or growling sound from the front of the vehicle as the actuator motor struggles to move the shutters.
- Engine Overheating: In rare cases, if the shutters become stuck in the closed position, it can restrict airflow to the radiator. This may cause the engine to run hotter than normal, especially in stop-and-go traffic on a warm day.
Known Issues, TSBs, and Recalls
This is a well-documented issue, and Audi has acknowledged the problem for earlier models in this generation.
Technical Service Bulletin (TSB) 2048402
Audi issued TSB 2048402 for 2017-2019 Audi Q7 models with the 3.0L engine experiencing the P05A0 fault code. The TSB outlines a specific repair procedure for dealerships:
- First, attempt to update the Engine Control Module (ECM) software.
- If the software update does not resolve the issue, or if a basic settings adaptation fails, the TSB instructs technicians to replace the grille shutter motor (actuator).
Audi offered an extended warranty for this specific issue for up to 8 years or 80,000 miles, but many vehicles are now outside this coverage period. If your vehicle is outside the warranty, you will be responsible for the repair costs.
Pro Tip: The most common point of failure is the electric actuator motor itself, not the entire shutter assembly. Dealerships often quote a replacement of the entire assembly, which is much more expensive. Replacing only the motor can save a significant amount of money.
Buying a Used Grille Shutter Actuator: What to Check
A used grille shutter assembly can be a cost-effective solution, but it's crucial to inspect it carefully. Since the motor is the most common failure point, many buyers opt to purchase a used assembly for its frame and louvers and install a new actuator motor onto it.
- Verify Part Numbers: Ensure the OEM part number on the used assembly matches your original. The primary part number is 4M0121219, with later revisions being 4M0121219A and 4M0121219B. These revisions are generally interchangeable.
- Inspect the Frame and Louvers: Check the plastic frame for any cracks or signs of impact from road debris. Manually move the louvers (vanes) to ensure they are not bent and move freely.
- Check the Linkage: Examine the plastic rod that connects the louvers and attaches to the motor. Make sure it is intact and all connection points are secure.
- Examine the Actuator Motor: If you plan to reuse the motor from the used assembly, check its housing for cracks. Inspect the electrical connector pins for any signs of corrosion or water damage. However, given the high failure rate of the motor, installing a new one is highly recommended.
Replacement Overview and Difficulty
Replacing the grille shutter actuator or the full assembly is a complex job that is best left to experienced DIY mechanics or a professional shop.
- Bumper and Headlight Removal: The front bumper cover and headlights must be removed to access the shutter assembly. 🎬 See how to remove the front bumper and headlights
- Sensor Disconnection: This process requires disconnecting various sensors in the bumper, such as those for parking assist, adaptive cruise control, and outside temperature. Care must be taken to avoid damaging these components and their wiring.
- Calibration Required: After the new actuator is installed, a 'basic setting' or 'adaptation' procedure must be performed using a compatible diagnostic tool (like VCDS or OBDeleven). This procedure teaches the vehicle's computer the open and close limits of the new motor. The engine will not control the shutters correctly without this step, and the fault code will return.
Installation Difficulty: 4 out of 5
Warning: Some models are equipped with advanced driver-assistance systems (ADAS) like adaptive cruise control, which have sensors mounted in the grille area. While some DIY guides suggest it's possible to remove the bumper without requiring a costly ADAS recalibration, any disturbance of these sensors carries the risk of them needing professional recalibration to function safely.
Cost Comparison
Repair costs can vary significantly depending on whether you replace just the motor or the entire assembly.
| Part | Estimated Cost |
|---|---|
| New OEM Assembly | $350 - $510 |
| New OEM Actuator Motor Only | $50 - $75 |
| New Aftermarket Assembly/Actuator | $70 - $150 |
| Used OEM Assembly | $100 - $250 |
| Shop Labor | $600 - $1,200+ (dealership rates can be higher, with some quotes reaching $2,200 for the full assembly replacement) |
Frequently Asked Questions (FAQ)
Can I drive my Audi Q7 with a bad grille shutter actuator?
Yes, but it should be repaired soon. The check engine light will remain on, and the auto start/stop system will be disabled. If the shutter is stuck closed, there is a risk of the engine running hot in traffic, while a shutter stuck open will primarily affect fuel economy and engine warm-up time.
What is fault code P05A0?
P05A0 is the Diagnostic Trouble Code (DTC) for "Active Grille Air Shutter 'A' Stuck On." It means the Engine Control Module (ECM) has detected that the shutter is not in the commanded position, which is most often caused by a failed actuator motor.
Do I have to replace the whole shutter assembly or just the motor?
The most common failure is the electric motor, not the shutter vanes or frame. You can save a significant amount of money by replacing only the actuator motor. However, you should inspect the rest of the assembly for damage from road debris before making a decision.
Is programming required after replacing the actuator?
Yes, a calibration procedure, often called an "adaptation" or "basic setting," is mandatory. This must be done with a diagnostic tool like VCDS or OBDeleven. 🎬 Watch how to perform the shutter adaptation procedure Without this step, the system will not function correctly, and the check engine light will likely return.

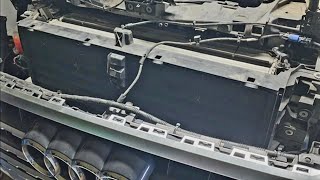

Helpful Videos
Technical Specifications
OEM Part Numbers: 4M0121219 4M0121219A 4M0121219B
Electronically controlled 12V DC motor. Requires post-installation calibration via a diagnostic tool.
