2017-2021 Mazda CX-5 Grille: A Guide to Sensor Compatibility and Replacement

Variant Differences: The Key to a Successful Repair

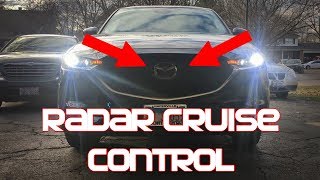

When replacing the grille on a 2017-2021 Mazda CX-5, understanding your vehicle's specific options is the most important step. The correct grille depends on two main features: Mazda Radar Cruise Control (MRCC), also known as Adaptive Cruise Control, and the 360° View Monitor 🎬 Watch: How Mazda's radar cruise control works (surround-view camera system).

• Without MRCC / Without 360° Camera: This is the base model configuration. The grille does not need to accommodate a radar sensor or a front camera. An example OEM part number for this version is KB8D-50-710J.
• With MRCC / Without 360° Camera: This is a very common configuration. The grille features a special, smooth-faced emblem that the radar waves can pass through. The grille itself is designed to mount this specific emblem and sensor assembly.
• With MRCC / With 360° Camera: This grille has both the special radar-compatible emblem and a small cutout or mounting point for the front-facing camera, which is part of the 360° view system.

Symptoms of a Damaged Grille

Grille failure is almost always the result of physical damage. Unlike mechanical parts, they don't wear out, but their location at the very front of the vehicle makes them vulnerable.

• Visible Cracks, Holes, or Broken Pieces: The most obvious symptom is physical damage from road debris, animals, or minor collisions. Even small cracks can compromise the structural integrity of the grille.
• Loose Fit or Rattling: Broken mounting tabs can cause the grille to become loose, leading to rattling noises, especially at speed.
• Advanced Driver-Assistance System (ADAS) Errors: If the grille is damaged, misaligned, or the emblem is dirty or blocked, you may see a "Front radar blocked" message on the instrument cluster. This will disable systems like Adaptive Cruise Control and Forward Collision Warning.
• Engine Overheating: In extreme cases, if the grille is severely blocked by debris (like mud or snow), it can restrict airflow to the radiator and potentially lead to the engine running hotter than normal.

Buying a Used 2017-2021 CX-5 Grille

A used OEM grille is often an excellent alternative to an expensive new part, but careful inspection is key. Here’s what to look for:

1. Verify Compatibility

Before anything else, confirm the donor vehicle had the same options as yours (MRCC and 360° Camera). Ask the seller to confirm or provide the VIN of the donor car so you can look up its original equipment. Inspect photos for the smooth-faced radar emblem and the camera cutout if your vehicle requires them.

2. Inspect All Mounting Tabs

Turn the grille over and carefully inspect every mounting tab and clip location. These are the most common failure points on a used grille. Even one broken tab can cause a poor fit or a rattle. Compare the back of the used part to photos of a new one to ensure all tabs are present and intact.

3. Check for Cracks and Stress Marks

Look for hairline cracks, especially around the screw holes and corners. Flex the grille slightly to see if any white stress marks appear, which indicate the plastic has been weakened from a past impact.

4. Examine the Finish

Most 2017-2021 CX-5 grilles have a gloss black mesh finish. Check for deep scratches, scuffs, or chemical stains that won't come out with polishing. Also, inspect any chrome or painted trim pieces for peeling or damage.

5. OEM vs. Aftermarket

Used OEM grilles are generally preferable to new, cheap aftermarket ones. OEM parts guarantee a perfect fit, proper material quality, and correct mounting points for sensors and cameras. Aftermarket parts can have issues with fitment, leading to gaps or difficulty during installation, and may not be made of materials compatible with the radar sensor.

Replacement Information

Replacing the grille on a 2017-2021 Mazda CX-5 requires removing the entire front bumper cover. 🎬 See this step-by-step front bumper removal guide While not overly complex, it is a time-consuming process.

• Difficulty: 3 out of 5
• Estimated Time: 2-3 hours
• Tools Required: Socket set (10mm), screwdrivers, plastic trim removal tools, and potentially rivet removal tools.

Basic Replacement Steps:

1. Open the hood and remove the upper radiator cover and several plastic clips holding the top of the bumper.
2. In each front wheel well, remove the screws and clips securing the bumper cover to the fender liner and fender.
3. Remove the bolts and clips securing the bottom of the bumper cover to the splash shield underneath the vehicle.
4. Carefully pull the sides of the bumper cover away from the fenders to release the clips.
5. With a helper, pull the bumper cover forward. Disconnect any fog light or sensor wiring harnesses before completely removing it.
6. With the bumper cover off, the grille is held to the inside of the cover with a series of screws and clips. Unscrew the old grille and detach it.
7. Transfer the emblem and any sensors to the new grille if they were not included.
8. Install the new grille onto the bumper cover and reinstall the bumper cover by reversing the steps above.
🎬 Watch: 2017+ CX-5 bumper and grille replacement walkthrough
