2019 Lincoln MKC Grille: A Guide to the One-Year-Only Facelift Design
This guide covers the unique upper and lower grilles for the 2019 MKC, focusing on how to find a quality used replacement and avoid common compatibility mistakes.
- The grille for the 2019 Lincoln MKC is a one-year-only design and is not compatible with any other model year.
- When buying a used grille, the most critical inspection is for broken mounting tabs on the back, as this will prevent a secure fit.
- The upper chrome grille (KJ7Z-8200-AA) and lower black grille (KJ7Z-17K945-AA) are separate parts and are sold individually.
- Replacement requires the complete removal of the front bumper cover, making it a moderately difficult DIY job.
Understanding the 2019 Lincoln MKC Grille
The 2019 Lincoln MKC features a distinct front-end design that was used for only one model year before the vehicle was replaced by the Lincoln Corsair. This makes finding the correct replacement grille crucial. The front end is comprised of two main grille components: the large, upper chrome mesh grille and a separate, lower grille insert finished in textured black plastic.
Part Number & Variant Guide
It's important to identify the correct part for your needs, as the upper and lower sections are sold separately.
| Part Name | OEM Part Number | Description |
|---|---|---|
| Upper Radiator Grille | KJ7Z-8200-AA | This is the main, large chrome mesh 'signature' grille assembly. |
| Lower Bumper Grille | KJ7Z-17K945-AA | This is the smaller, textured black plastic grille located in the lower section of the front bumper. |
Warning: The Lincoln star emblem is not included with a new or used grille. You must carefully transfer it from your old grille or purchase a new one separately.
Symptoms of a Failing or Damaged Grille
Grille failure is almost always due to physical damage or cosmetic deterioration. There are no moving parts, so failure is easy to spot.
- Visible Cracks or Holes: The most common symptom is damage from road debris or a minor collision. Large cracks or holes can compromise the protection of the radiator and A/C condenser.
- Peeling or Bubbling Chrome: The chrome finish on the upper grille can sometimes bubble, flake, or peel due to age and exposure to the elements, significantly impacting the vehicle's appearance.
- Faded or Discolored Plastic: The lower textured grille can fade from a deep black to a light gray over time due to UV exposure, making the front end look aged.
- Loose Fit or Rattling: If mounting tabs are broken, the grille may not sit securely in the bumper cover, leading to rattling noises or a visible gap.
Known Issues, TSBs, and Recalls
While there are no recalls or Technical Service Bulletins (TSBs) specifically for the grille itself, there are a few related items to be aware of for the 2019 MKC:
- NHTSA Recall 23V378: This significant recall addresses a potential for an under-hood fire due to the battery monitor sensor short-circuiting. This can happen while the vehicle is parked and turned off. Owners are advised to park outside and away from structures until the repair, which involves adding an in-line fuse, is completed by a dealer. While not directly related to the grille, it is a critical safety issue for all 2015-2019 MKC owners.
- Adaptive Cruise Control Sensor: Some MKC models are equipped with an adaptive cruise control (ACC) module located behind the grille. If the vehicle is in a front-end collision, this sensor or its mounting bracket may be damaged. Replacement or re-installation of the sensor requires calibration to function correctly. When inspecting a used grille, ensure any associated sensor mounting points are intact.
Pro Tip: One TSB (SSM 47379) notes that for satin chrome finishes, harsh cleaners like Motorcraft Custom Bright Metal Cleaner should not be used as they can cause staining or discoloration. Always use a gentle, pH-neutral car soap to clean the chrome grille.
Buying a Used 2019 MKC Grille: What to Check
Due to the high cost of a new OEM grille, a used part is an excellent value. However, careful inspection is key.
- Confirm the Year: First and foremost, ensure the grille is from a 2019 model. Grilles from 2015-2018 MKC models have a completely different 'split-wing' design and will not fit.
- Inspect All Mounting Tabs: This is the most critical inspection point. Flip the grille over and carefully check every single mounting tab and clip location around the perimeter. These plastic tabs are brittle and often break during removal or from a minor impact. A grille with broken tabs will not install securely, leading to poor fitment and potential rattling.
- Examine the Chrome Finish: Look for signs of peeling, bubbling, or deep pitting in the chrome. Minor surface scratches may be acceptable, but any lifting of the chrome layer means it will likely continue to peel.
- Check for Cracks: Inspect the mesh pattern and the main frame for any cracks. Even small cracks can worsen over time from vibration and temperature changes.
- Verify Sensor Mounts: If your MKC has adaptive cruise control, ensure the mounting brackets for the sensor are present and undamaged.
Cost Comparison for 2019 MKC Grilles
| Part | New OEM | New Aftermarket | Used OEM |
|---|---|---|---|
| Upper Grille (Chrome) | $950 - $1450 | $105 - $350 | $200 - $500 |
| Lower Grille (Black) | $125 - $190 | $40 - $80 | $50 - $100 |
Installation Guide
Replacing the grille on a 2019 Lincoln MKC requires removing the entire front bumper cover. While it does not require highly specialized tools, it is a moderately complex job.
- Difficulty: 3 out of 5
- Estimated Time: 2-3 hours
- Tools Required: 7mm, 8mm, and 10mm sockets, T30 Torx bit, trim removal tools, flathead screwdriver.
General Steps:
- Open the hood and remove the upper radiator cover and push pins holding the top of the bumper.
- Remove the screws inside the front of each wheel well that secure the bumper to the fenders.
- Remove the series of screws along the bottom edge of the bumper cover.
- If equipped, disconnect the wiring harness for fog lights and any parking sensors. This connector is typically located on the driver's side.
- Carefully pull the sides of the bumper cover away from the fenders to release the clips, then pull the entire assembly forward and off the vehicle.
- With the bumper cover removed and placed on a soft surface, you can access the clips and screws holding the upper and lower grilles in place.
- Swap the grilles, transfer the Lincoln emblem, and reinstall the bumper cover by reversing the steps above.
Will a grille from a 2018 MKC fit my 2019?
No. The 2019 MKC had a major front-end facelift, changing from the 'split-wing' grille of the 2015-2018 models to a new single-frame 'signature' grille. They are not interchangeable.
Does the grille come with the Lincoln emblem?
No, neither new OEM nor used grilles typically include the Lincoln star emblem. It is a separate part that must be carefully removed from the old grille and transferred to the new one.
Can I buy just the chrome trim around the grille?
The main chrome surround is an integrated part of the upper grille assembly (KJ7Z-8200-AA) and is not sold separately by Lincoln. Some aftermarket companies sell thin, stick-on chrome accent pieces, but these are not a replacement for the original frame.
Is it difficult to replace the grille myself?

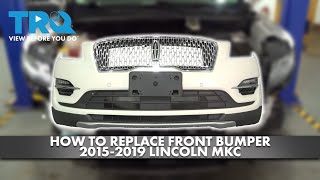

It is a moderately difficult job for a DIYer because the entire front bumper cover must be removed 🎬 Watch this step-by-step front bumper removal video to access the grille. It requires basic hand tools and careful work to avoid scratching paint or breaking clips. If you are not comfortable removing the bumper, a body shop can perform the labor.
Helpful Videos
Technical Specifications
OEM Part Numbers: KJ7Z-8200-AA KJ7Z8200AA KJ7Z-17K945-AA KJ7Z17K945AA KJ7B-8200-ADW
Upper Grille Material: Chrome-plated plastic. Lower Grille Material: Textured black plastic.
