2013-2019 Ford Escape Grille: A Buyer's Guide to Facelifts, Trims, and Active Shutters

Key Differences: Pre-Facelift (2013-2016) vs. Post-Facelift (2017-2019)

The most important factor when choosing a grille for a 2013-2019 Ford Escape is the model year. Ford performed a significant facelift for the 2017 model year, which completely changed the front end. Grilles are not interchangeable between these two generations.

• 2013-2016 Models: These feature a thinner upper grille and a large, trapezoidal lower grille section. The overall look is softer and more rounded.
• 2017-2019 Models: These have a much larger, more aggressive hexagonal upper grille that incorporates the Ford emblem within it. The lower grille is smaller and styled differently.
🎬 Watch: Step-by-step front bumper removal for 2017-2019 models.

Trim Level Variations

Beyond the model year, the grille's finish and style vary significantly by trim level (S, SE, SEL, Titanium). Using the wrong trim level grille can result in an improper fit or a mismatched appearance.

2013-2016 Trim Finishes:

• S Model: Typically features a basic, textured (grained) black plastic upper grille.
• SE Model: Often has a black grille with a chrome molding or frame.
• Titanium/SEL Models: Usually feature more elaborate finishes, sometimes with painted silver or additional chrome accents.

2017-2019 Trim Finishes:

• S Model: Comes with a simple black or dark gray grille.
• SE & Titanium Models: These often feature a gloss black finish, sometimes with chrome trim accents, especially on models with the 'Sport Appearance Package'. Part number GJ5Z-8200-AA is often associated with a black/chrome finish for these trims.

Symptoms of a Damaged or Failing Grille

• Physical Damage: The most common issue is cracking, chipping, or holes from road debris and minor impacts. This can detract from the vehicle's appearance and, if severe, affect the bumper's structural integrity.
• Broken Mounting Tabs: Tabs are critical for a secure, flush fit. A used grille with broken tabs will likely vibrate, sag, or have uneven gaps.
• Faded or Peeling Finish: The finish, especially chrome or gloss paint, can peel, fade, or become cloudy over time due to sun exposure and harsh chemicals.
• Check Engine Light (Active Grille Shutter models): If the active grille shutters behind the main grille are damaged, stuck, or the actuator motor fails, it will often trigger a Check Engine Light. Common diagnostic trouble codes include P05A2 and P059F.

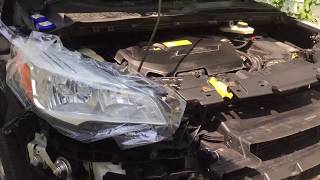

🎬 See how to install a new radiator shutter assembly.
• Engine Overheating: In rare cases, if the active grille shutters become stuck in the closed position, it can restrict airflow and lead to the engine running hot or overheating.

Known Issues, TSBs, and Recalls

While there are no major recalls for the grille assembly itself, there are related service bulletins and recalls concerning the active grille shutter (AGS) system.

• NHTSA Recall 22V-484 (Ford 22S47): This recall affects some 2020-2022 Escape Hybrid (HEV) and Plug-In Hybrid (PHEV) models, which are outside the 2013-2019 range but relevant to the technology. The recall addresses a fire risk where, after a specific type of engine failure, the design of the under-engine shield and AGS could trap flammable vapors. The fix involves modifying the shield and shutter assembly, not replacing it entirely.
• Customer Satisfaction Program 22P07 (related to TSB 21-2445): Some 2021 Escapes were built without a front isolator bracket, causing a fluttering noise at highway speeds. The dealer fix involves replacing the AGS upper and lower air deflectors. While this applies to a later model year, it highlights the complexity of the components in this area.

Buying a Used Grille: What to Check

Purchasing a used OEM grille is an excellent way to save money while ensuring a perfect factory fit. Aftermarket grilles can have issues with fitment, material quality, and color matching.

1. Confirm Year and Trim: First, double-check that the donor vehicle's year (2013-2016 or 2017-2019) and trim level (S, SE, Titanium) match your own.
2. Inspect All Mounting Tabs: Carefully examine the back of the grille. All mounting tabs and clip points must be intact. Even one broken tab can cause a poor fit.
3. Check for Cracks: Look for hairline cracks, especially around the mounting points and emblem area. Stress from a previous impact can cause hidden damage.
4. Examine the Finish: Check for deep scuffs, peeling chrome, or significant fading. Minor scuffs may be acceptable, but widespread finish failure means the part will need to be repainted.
5. Inspect Active Shutters (if applicable): If the grille comes with the active shutter assembly, check that the vanes are not bent or broken and that the plastic linkage connecting them is intact.

Replacement Difficulty

• Installation Difficulty: 3 out of 5
• Estimated Time: 2-3 hours

Replacing the Ford Escape grille is a moderately difficult job for a DIYer because it typically requires the complete removal of the front bumper cover. This involves removing numerous clips, screws, and bolts in the wheel wells, under the engine, and on top of the radiator support. Once the bumper is off, the grille itself is usually held to the cover with several clips and screws.

Cost Comparison

Frequently Asked Questions (FAQ)
