2011-2018 Ford Edge Grille: A Guide to Generations, Trims, and Options

A Tale of Two Generations: 2011-2014 vs. 2015-2018

The most important thing to understand when buying a grille for a 2011-2018 Ford Edge is that this period covers two distinct vehicle generations with completely different front-end designs. The grilles are not interchangeable between these two generations.

• First Generation (Facelift): 2011-2014 - This generation features a prominent, three-bar grille design. Variations are primarily based on engine size and optional features.
• Second Generation: 2015-2018 - This generation introduced a hexagonal grille design that varies significantly across trim levels and with optional equipment like front-facing cameras.

First Generation (2011-2014) Grille Variations

For the 2011-2014 models, compatibility depends on the engine and specific options. The most common issue for this generation is the chrome finish bubbling and peeling off over time.

Key Compatibility Points:

• Engine Size: For 2012-2014 models, grilles differ between vehicles with the 2.0L 4-cylinder EcoBoost engine and those with the 3.5L or 3.7L V6 engines. Ensure the grille you purchase matches your engine type.
• Adaptive Cruise Control (ACC): Models with ACC have a different lower bumper grille to accommodate the radar sensor, which is located behind the bumper on the driver's side. The main upper grille may also have differences.
• Tow Package: The presence of a factory tow package can also affect which lower grille is required.

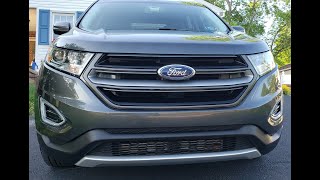

Second Generation (2015-2018) Grille Variations

The second-generation Edge saw a major increase in grille complexity, with different styles for almost every trim level.

Key Compatibility Points:

• Trim Level: The SE, SEL, Titanium, and Sport models each have a unique grille design. The Sport model features a gloss black mesh design, while the Titanium has a chrome-and-silver bar design.
• Front View Camera: Higher trims equipped with a 360-degree camera system have a small camera mounted in the grille, usually just below the Ford emblem. A grille for a vehicle without a camera will not have the necessary mounting point.
• Active Grille Shutters: Many 2015+ Edge models are equipped with active grille shutters located behind the main grille. These shutters are a separate component but can be damaged in a front-end impact. While not part of the grille itself, it's important to check them when the grille is removed.

Symptoms of a Bad or Failing Grille

Failure of a grille is almost always visual. Since it's a static cosmetic part, you don't need special tools to diagnose it.

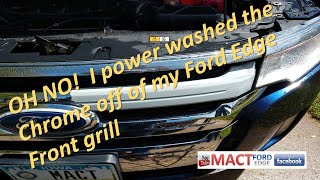

• Peeling or Bubbling Chrome: This is the most common issue on 2011-2014 models. Exposure to the elements and impacts from small road debris cause the chrome layer to separate from the plastic base.
• Cracks and Holes: Impacts from road debris or minor collisions can easily crack or break the plastic grille, leaving the radiator and condenser vulnerable to damage.
• Broken Mounting Tabs: The grille is held in place by a series of plastic tabs. These can become brittle and break during removal or from an impact, causing the grille to become loose, rattle, or fit poorly.
• Faded or Discolored Finish: On painted or black plastic grilles, UV exposure from the sun can cause the finish to fade and look chalky over time.

Buying a Used 2011-2018 Ford Edge Grille: What to Inspect

A used OEM grille can be an excellent value, offering better fit and durability than cheap aftermarket alternatives. However, a thorough inspection is crucial.

1. Confirm the Generation and Trim: First, ensure the grille is from the correct year range (2011-2014 or 2015-2018) and, for later models, the correct trim (SE, SEL, Titanium, Sport).
2. Check for a Camera Mount (2015-2018): If your Edge has a front camera, ensure the replacement grille has the correct mounting bracket. These are often molded into the grille and cannot be easily added.
3. Inspect ALL Mounting Tabs: This is the most critical inspection point. Carefully flip the grille over and check every single mounting tab and clip receiver. Even one broken tab can cause a poor fit, gaps, or rattling.
4. Examine the Finish: For chrome grilles, look for any signs of bubbling, peeling, or hazing. For painted or molded grilles, check for deep scratches, stress marks (white discoloration in the plastic), or significant fading.
5. Look for Hidden Cracks: Flex the grille slightly and inspect it under good light. Pay close attention to the areas around the mounting tabs and the emblem, as stress cracks often form there.

Known Issues, TSBs, and Recalls

While there are no direct recalls for the grille itself, there are related service bulletins.

• NHTSA Searches: Searches of the NHTSA database show no recalls specifically for the grille component on these models. There are numerous recalls for other components like airbags and brake hoses.
• TSB for Active Grille Shutters: For 2015+ models, Ford issued Technical Service Bulletins (like TSB 16-NA-203) related to the active grille shutters. They can become stuck due to ice/snow buildup or wiring issues, triggering a check engine light with code P059F. The fix often involves a software update to change the system's self-test parameters.
• TSB for Dirt/Ice Accumulation: TSB 18-2339 addresses an issue on 2015-2018 models where dirt, dust, or ice can accumulate inside the bottom of the doors due to driving on unpaved or slushy roads. The fix involves installing updated weatherstripping.

Replacement Overview & Difficulty

Replacing the grille on a Ford Edge is a straightforward job that is feasible for a DIYer with basic tools.

• Difficulty: 2 out of 5
• Estimated Time: 0.5 - 1.5 hours
• Process (General): The process typically involves removing the upper radiator sight shield (the plastic panel above the grille held by push-clips), removing several bolts or screws at the top of the grille, and then carefully pulling the grille forward to release the lower retaining clips. On some models or for easier access, removing the entire front bumper cover may be recommended. The Ford emblem is usually held on by two 10mm nuts and can be transferred to the new grille.
🎬 Watch: How to replace the front emblem
