2001-2005 Audi allroad Grille: Damage, Replacement, and Used Buying Tips
A guide to identifying common damage, understanding replacement costs, and what to inspect when buying a used OEM grille for your C5 Audi allroad.
- The most common failure is broken mounting tabs; inspect these carefully on a used part.
- Replacement is very easy (Difficulty 1/5) and requires only basic tools.
- A grille from a standard Audi A6 will NOT fit an allroad; you must buy a part specifically for the 2001-2005 allroad.
- Used OEM grilles offer significant savings over new OEM parts and are a good value if inspected for damage.
Symptoms of a Failing or Damaged Grille
Since the grille is a cosmetic and protective part, its failures are always visible. There are no associated sounds, smells, or diagnostic codes. Look for these common signs of damage:
- Cracks or Breaks: The most obvious sign of failure is physical damage. Impacts from road debris, parking lot bumps, or minor front-end collisions can cause the plastic to crack or shatter.
- Broken Mounting Tabs: The grille is held in place by a series of plastic tabs. These can become brittle with age and break during removal, installation, or even from engine vibration. Forum users frequently report using zip ties as a workaround for broken tabs.
- Faded or Peeling Finish: Over time, exposure to UV rays from the sun and weather can cause the grille's finish to fade. The black plastic may turn gray, and if it has a chrome surround, the chrome can peel or bubble.
- Missing Audi Emblem: The four-ring emblem is often attached to the grille. It can be stolen or fall off if its mounting points are damaged.
Known Issues, TSBs, and Recalls
There are no Technical Service Bulletins (TSBs) or recalls specifically for the grille on the 2001-2005 Audi allroad. However, several safety recalls were issued for this vehicle that owners should be aware of:
- Recall JY / 20L8: A recall was issued for a potential fuel leak from a cracked nipple on the fuel tank rollover valve. This affects 2001-2005 allroad models. A fuel leak in the presence of an ignition source increases the risk of a fire. 🎬 Watch this video on how to remove the front bumper.
- Recall JN: This recall addresses a defect in the headlight switch wiring harness that could lead to overheating and a potential fire in the dashboard area.
While these recalls don't involve the grille itself, they are important safety issues for any owner of a C5 allroad.
Buying a Used Grille: What to Look For
A used OEM grille is an excellent, cost-effective alternative to a new part, but careful inspection is key. Here’s what to check before you buy:
- Inspect All Mounting Tabs: This is the most critical inspection point. Carefully check the back of the grille for all the plastic tabs that secure it to the car. Ensure none are cracked, broken off, or show signs of a previous repair with glue. A grille with even one broken tab may not fit securely.
- Check for Cracks and Stress Marks: Examine the entire surface, especially around the edges and mounting points, for any cracks. Pay close attention to the thin vertical and horizontal bars, as these are most susceptible to impact damage.
- Verify the Part Number: The primary OEM part numbers are 4Z7853651 and 4Z78536513FZ. The '3FZ' suffix typically denotes a black finish. Always match the part number from your old grille to the used one to guarantee a perfect fit.
- Examine the Finish: Look for deep scratches, rock chips, and fading. While minor cosmetic issues are expected with a used part, ensure the finish is acceptable to you. A heavily faded grille will detract from your vehicle's appearance.
- Check the Emblem Mount: Make sure the mounting points for the Audi rings are intact. If you plan to transfer your old emblem, you'll need a solid place to attach it.
Pro Tip: Many forum users note that the C5 allroad grille is not a direct swap with the standard A6 grille of the same era due to differences in the hood and headlight openings. Stick to a grille specifically from a 2001-2005 allroad to avoid fitment issues.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $450 - $600+ |
| New Aftermarket | $100 - $250 |
| Used OEM | $75 - $225 |
| Shop Labor | $50 - $150 |
Replacement Guide (Difficulty: 1/5)
Replacing the grille on a C5 Audi allroad is a straightforward task that most DIYers can complete with basic tools. The estimated time is less than 30 minutes.

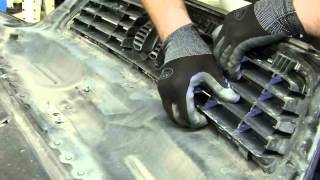

🎬 Watch this step-by-step Audi Allroad grille removal video.- Open the Hood: Access the top of the grille.
- Remove the Hood Latch: Loosen and remove the three 10mm nuts that secure the hood latch assembly. Carefully guide the release handle through the slot in the grille.
- Release the Locking Tabs: Using a large flathead screwdriver or a trim removal tool, carefully press in the eight locking tabs located around the top perimeter of the grille to release it.
- Remove the Grille: Once the top tabs are released, the bottom of the grille, which is held by hooks, can be tilted forward and lifted out.
- Installation: To install the new grille, first hook the bottom edge into place. Then, rock the grille back until the top tabs click securely into their slots. Re-install the hood latch assembly.
Warning: The plastic tabs are brittle, especially on an older vehicle. Apply steady, gentle pressure to avoid breaking them during removal.
Frequently Asked Questions
Can I drive with a broken grille?
Yes. A broken or damaged grille is primarily a cosmetic issue and does not affect the vehicle's drivability. However, a severely damaged grille may not adequately protect the radiator from road debris, so replacement is recommended.
Will a grille from a standard Audi A6 fit my allroad?

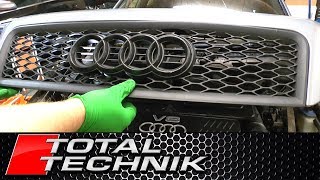

No, a grille from a standard C5 A6 (1998-2004) will not directly fit a 2001-2005 allroad. The hood, bumper, and headlight shapes are different, resulting in a different grille opening. 🎬 See how to remove the hood grille on a standard C5. You must use a grille specifically designed for the allroad.
What tools are needed to replace the allroad grille?
You will typically only need a 10mm socket or wrench to remove the hood latch bolts and a flathead screwdriver or plastic trim tool to release the grille's retaining tabs.
My grille's mounting tabs are broken. Can I repair them?
While some people attempt to repair broken tabs with epoxy or plastic welding, it is often not a durable solution. Forum members have reported more success using small black zip ties as a semi-permanent fix to hold the grille in place. However, for a secure and proper fit, replacing the grille is the best option.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4Z7853651 4Z78536513FZ
Material: Plastic. Finish: Black (3FZ) or with Chrome Trim.
