2009-2011 Audi A6 Grille: Decoding Facelift, S-Line, and ACC Fitment

Key Variants for 2009-2011 Audi A6 Grilles

When replacing the grille on a 2009-2011 Audi A6, it's crucial to understand that not all grilles are interchangeable. This model range represents the 'facelift' of the C6 generation, and its grilles are not compatible with pre-facelift (2005-2008) models. The main differences come down to two key vehicle options: the S-Line package and Adaptive Cruise Control (ACC).

Standard vs. S-Line Grille

The S-Line package is a sport-appearance trim that includes a different front bumper and grille design compared to the standard A6. While the overall shape is similar, the styling, finish, and sometimes the mounting points within the bumper cover can differ. It is essential to match the new grille to your vehicle's specific trim package to ensure proper fitment.

Adaptive Cruise Control (ACC) Compatibility

A major point of variation is the accommodation for the Adaptive Cruise Control (ACC) sensor. Vehicles equipped with ACC have a radar sensor mounted behind the grille. Grilles designed for these cars have a specific cutout or a specially designed emblem area to allow the radar to function correctly. Using a non-ACC grille on a vehicle with ACC will block the sensor, rendering the system inoperative and likely causing warning lights on the dashboard. Conversely, an ACC-compatible grille can be fitted to a non-ACC car, but it may have a visible cutout that looks out of place.

Symptoms of a Damaged Grille

Grille failure is almost always due to physical damage. Here’s what to look for:

• Visible Cracks and Holes: Impact from road debris is the most common cause of damage. Small stones can cause chips, while larger impacts can lead to significant cracks or holes, compromising protection for the radiator.
• Loose Fitment or Rattling: The grille is held in place by a series of plastic tabs and screws. Over time or due to impact, these tabs can break, causing the grille to become loose and rattle, especially at speed.
• Peeling or Faded Finish: The finish, whether it's chrome, gloss black, or matte, can degrade from sun exposure and road salt. This leads to a poor appearance and, in some cases, corrosion on underlying materials.
• ACC or Parking Sensor Errors: If the grille is damaged, misaligned, or improperly replaced, it can interfere with the function of the ACC radar or front parking sensors, triggering fault codes and warning messages.

Buying a Used 2009-2011 Audi A6 Grille: What to Inspect

A used OEM grille is often a better choice than a cheap aftermarket alternative due to superior fit, material quality, and durability. However, careful inspection is key.

1. Inspect All Mounting Tabs: This is the most critical check. Turn the grille over and carefully examine every single mounting tab and clip location. Even one broken tab can lead to a poor fit, rattles, or gaps.
2. Verify Part Number and Features: Cross-reference the OEM part number with your vehicle's requirements (S-Line, ACC). Ask the seller to confirm if it's for a car with or without Adaptive Cruise Control.
3. Check the Finish: Look for deep scratches, peeling chrome, or significant fading. Minor scuffs may be acceptable, but widespread finish failure means the part will need to be repainted.
4. Examine the ACC Sensor Area: For ACC-equipped grilles, ensure the plastic cover or specialized emblem area is free of cracks and that the mounting points for the sensor bracket are intact.
5. Confirm Included Parts: Ask if the Audi rings emblem and license plate holder are included. These are often separate pieces and can be expensive to buy new. The original rings often need to be carefully unclipped and transferred to the new grille.

Known Issues, Recalls, and TSBs

Searches of the National Highway Traffic Safety Administration (NHTSA) database show several recalls for the 2009-2011 Audi A6, most notably related to Takata airbag inflators. However, there are no specific recalls or widespread Technical Service Bulletins (TSBs) directly concerning the front grille itself. Any issues with the grille are typically related to wear, road damage, or incorrect installation rather than a manufacturing defect.

Replacement Overview

Replacing the grille on a C6 Audi A6 is an intermediate-level task because it requires removing the entire front bumper cover. While some forum users have attempted it without full bumper removal, the standard procedure provides the necessary access to unbolt the old grille and install the new one correctly.

• Difficulty: 3 out of 5
• Estimated Time: 2-3 hours
• Tools Required: Torx bit set (T25, T30), 10mm socket with extension, trim removal tools, flathead screwdriver.

General Steps:

1. Remove the plastic engine bay cover.
2. Unfasten screws in the front wheel wells connecting the bumper to the fenders.
3. Remove bolts on the top and underside of the bumper cover.
4. Carefully pull the sides of the bumper away from the body to release the clips.
5. Before fully removing, disconnect any wiring for fog lights, parking sensors, or the ACC sensor.
6. Place the bumper cover on a soft surface to prevent scratches.

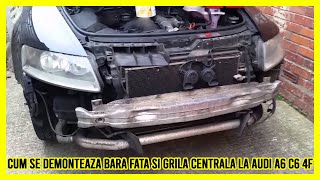

🎬 See how to remove the front bumper and center grille
7. The grille is secured to the inside of the bumper cover with numerous Torx screws. Remove these, swap the grilles, and reassemble.
