2023-2025 Genesis Electrified G80 Fusible Link & Battery Terminal Guide

Symptoms of a Failing Fusible Link Terminal

A problem with the 12V battery terminal fusible link on the Electrified G80 will typically manifest as a sudden and complete loss of 12-volt electrical power. Because this part is the main gateway for 12V power, its failure is often mistaken for a dead battery.

• Complete No-Start, No-Power Condition: The most common symptom is a car that appears completely dead. The doors may not unlock with the fob, and there will be no interior lights, dashboard illumination, or response when pressing the start button.
• Intermittent Electrical Issues: Before a total failure, a corroded or failing terminal can cause flickering lights, random warning messages on the dash, or accessories that work sporadically.
• Clicking Noise, But No Start: You might hear a single click from a relay when you press the start button, but nothing else happens. This indicates the start command is being sent, but the power isn't available to engage the main vehicle systems.
• Inability to Charge the 12V Battery: If the fusible link related to the charging circuit is blown, the 12V battery will not recharge from the car's high-voltage system, leading to a dead battery over time.

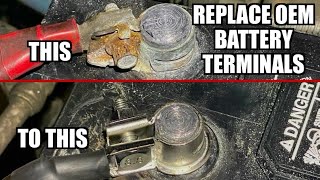

• Visible Damage: A visual inspection may reveal melted plastic, signs of arcing (black soot), or heavy corrosion (white or greenish powder) on the positive battery terminal assembly.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Safety Recall 025G: Integrated Charging Control Unit (ICCU)

A critical issue for all 2023-2025 Electrified G80 owners is a safety recall concerning the Integrated Charging Control Unit (ICCU). The ICCU is responsible for charging the 12V battery from the main high-voltage battery pack. The recall states that the ICCU can fail, which stops the 12V battery from charging. This will trigger warnings on the dash and put the car into a 'fail-safe' mode with reduced power. If you continue driving, the 12V battery will eventually be completely depleted, causing a total loss of motive power, which increases the risk of a crash.

The recall procedure involves a software update and, if necessary, a replacement of the ICCU and its associated fuse. While this is not a direct failure of the battery terminal fusible link, the symptoms—a dead 12V system—are nearly identical. Before replacing any parts for a no-power condition, a Genesis dealer must check if this recall has been performed on your vehicle.

Buying a Used Fusible Link Battery Terminal

Given the high cost of a new OEM assembly from the dealer, a used OEM part is an excellent value. However, careful inspection is crucial for this electrical component.

• Check for Physical Damage: The most important check is for any signs of overheating. Look closely at the plastic housing for any melting, warping, or discoloration. Examine the metal surfaces for black soot marks, which indicate electrical arcing. Do not buy a part that shows any signs of heat damage.
• Inspect for Corrosion: Avoid any terminals with significant white or green powdery corrosion. While minor surface dullness is okay, heavy corrosion can indicate the part was exposed to a leaking battery and may have internal damage.
• Verify All Posts and Connectors: Ensure all the threaded studs where wires attach are present, straight, and have clean threads. Check that any plastic clips or connector housings are intact and not cracked or broken.
• Why Used OEM is a Good Choice: The OEM terminal assembly is engineered with specific fuse ratings and materials designed to protect the sensitive electronics in your G80. A cheap, universal aftermarket terminal will not have the correct multi-circuit outputs and will not fit. A used OEM part provides the exact fit, function, and safety ratings of a new part at a lower cost.

Replacement Overview & Difficulty

Replacing the positive battery terminal is a straightforward job suitable for a DIY mechanic with basic tools.

• Difficulty: 1/5 (Easy)
• Estimated Time: 20-30 minutes
• Tools Needed: Ratchet with 10mm and 12mm sockets (verify sizes), wire brush.

Basic Replacement Steps

1. Locate the 12V battery in the trunk of the vehicle.
🎬 See how to access and jump start the battery
2. IMPORTANT: Always disconnect the negative battery terminal first. It's the black cable, typically marked with a (-) symbol. Use a 10mm wrench to loosen the nut and pull the clamp off the battery post. Tuck it aside to prevent accidental contact.
3. Remove the plastic cover from the positive terminal assembly.
4. Loosen the 10mm nut on the clamp that holds the assembly to the positive (+) battery post.
5. Using a 10mm or 12mm socket, remove the nuts holding the main power wires to the fusible link studs.
6. Lift the entire old assembly off the battery post and set it aside.
7. Clean the battery posts with a wire brush.
8. Place the new/used assembly onto the positive battery post. Do not tighten the clamp yet.
9. Re-attach the main power wires to the studs on the new assembly and tighten their nuts securely.
10. Tighten the 10mm nut for the clamp connecting the assembly to the battery post.
11. Replace the plastic cover.
12. IMPORTANT: Reconnect the negative battery terminal last.

Cost Comparison

Pricing for this integrated component can vary significantly. Aftermarket universal terminals are not a viable option.
