2019-2024 Toyota RAV4 Interior Fuse Box: A Guide to Replacement and Programming
This guide covers the common failures, replacement costs, and critical programming requirements for the 2019-2024 Toyota RAV4's interior fuse box, also known as the Body Control Module.
- The interior fuse box is also the Body Control Module (BCM) and requires mandatory programming to the vehicle's VIN and keys after installation.
- This part is NOT plug-and-play. A dealer or specialized locksmith with Toyota software is required for replacement.
- When buying used, you must match the part number exactly and ensure it comes from a gasoline model, not a hybrid.
- Symptoms of failure are often widespread and confusing, such as multiple unrelated electrical systems failing at once.
Understanding the 2019-2024 RAV4 Fuse Boxes
The 5th generation Toyota RAV4 has two primary fuse box locations that owners and technicians need to be aware of. While both distribute power, they have very different functions and replacement requirements.
- Engine Compartment Fuse Box: Located in the engine bay near the battery, this box contains high-amperage fuses and relays for components like the starter, cooling fans, and headlights. It is a relatively simple power distribution center. Failures are rare and usually involve individual relays or fuses, not the entire box.
- Instrument Panel Junction Block (Interior Fuse Box): Located under the driver's side dashboard, this is the main subject of this guide. This part is not just a fuse panel; it integrates the Body Control Module (BCM), a computer that manages a vast array of vehicle functions. This integration means that replacing it is a complex job that requires electronic programming.
Known Issues, TSBs, and Recalls
For gasoline-powered 2019-2024 RAV4 models, there are no widespread recalls or technical service bulletins (TSBs) specifically for failure of the interior fuse box/BCM itself. Most issues are isolated incidents caused by water damage, electrical shorts from improper accessory installation, or internal component failure.
Hybrid Model Warning: The RAV4 Hybrid has a well-known Customer Support Program for a corroded high-voltage cable that connects to the rear motor, an issue often called "Cablegate". This issue does not apply to the gasoline-powered models covered in this guide.
While there isn't a specific TSB for fuse box failure, Toyota has issued related bulletins, such as T-SB-0013-24, which details the procedure for resetting the immobilizer and smart key system when all keys are lost. This highlights the link between the BCM (within the fuse box) and the vehicle's security system, which is a key factor during replacement.
Symptoms of a Failing Interior Fuse Box / BCM
Because the interior fuse box controls so many different systems, symptoms can be varied and seem unrelated. A failing unit often causes confusing electrical problems.
- Multiple Unrelated System Failures: You might experience issues like the power windows, radio, and interior dome lights all malfunctioning at the same time.
- Intermittent Problems: Functions may work one moment and fail the next. This can be caused by failing internal relays or cracked solder joints within the module.
- No-Start Condition: The BCM is a critical part of the immobilizer system. If it fails to recognize the key, the vehicle will not start, and you may see a security light on the dashboard.

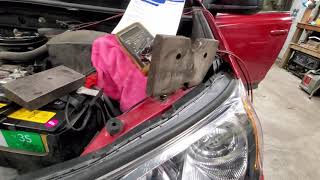

- Battery Drain: A faulty BCM can fail to go into "sleep mode" when the car is off, causing a parasitic draw that drains the battery overnight.
- Communication DTCs: A common sign of a failing module is the presence of "U" codes (e.g., U0100, U0140) when scanned with an OBD-II tool. These codes indicate a loss of communication between different computers in the vehicle. 🎬 Watch: 5 common signs of a failing Body Control Module.
Pro Tip: Before condemning the fuse box, always check the vehicle's main battery and ground connections. A weak battery or a corroded ground strap can cause many of the same flickering lights and erratic electrical symptoms as a bad BCM.
Programming and Installation Requirements
Warning: This module MUST be programmed to the vehicle after installation. It is not a plug-and-play part. Failure to program the module will result in a no-start condition and malfunctioning electronics.
The Instrument Panel Junction Block / BCM is electronically tied to your vehicle's Vehicle Identification Number (VIN) and the unique codes in your smart keys.
- Immobilizer Reset: When a new or used BCM is installed, it must be programmed to recognize the existing keys. Without this step, the anti-theft system will prevent the engine from starting.
- Configuration: The module must be configured for the specific options on the vehicle (e.g., sunroof, power tailgate, lighting packages). A mismatch in configuration can cause certain features to not work.
- Who can program it? This procedure requires Toyota's Techstream diagnostic software or an equivalent high-end professional scan tool. A Toyota dealership is the most reliable option. Some specialized independent shops or automotive locksmiths may also have this capability. A standard DIY mechanic or a general repair shop will likely not be able to perform the programming.
Buying a Used Fuse Box / BCM
Purchasing a used OEM Instrument Panel Junction Block is a great way to save money, but careful verification is essential due to the programming requirements.
- Match the Part Number Exactly: The primary part number for gasoline models is typically 82730-0R210. However, there can be other numbers. You must match the number from your original part exactly. Do not rely on visual similarity.
- Gasoline vs. Hybrid: While some parts catalogs show the same part number (82730-0R210) fitting both gas and hybrid models, the internal programming is different. You must source a part from a gasoline model to ensure it can be correctly reprogrammed for your vehicle. Installing a hybrid-programmed unit in a gas vehicle will likely fail.
- Physical Inspection: When you receive the used part, inspect all connectors for any signs of corrosion (green or white powder), bent pins, or melted plastic. Water intrusion is a common killer of these modules, so any sign of moisture damage is a major red flag.
- Factor in Programming Costs: Remember that the price of the used part is not the final cost. You must budget for professional programming, which can add a few hundred dollars to the total repair.
Cost Comparison
Prices can vary by location and supplier, but here is a general estimate for replacing the Instrument Panel Junction Block / BCM.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $245 - $360 |
| Used OEM | $75 - $200 |
| New Aftermarket | Not commonly available |
| Shop Labor (Installation & Programming) | $250 - $450 |
Frequently Asked Questions
Does a 2019-2024 RAV4 fuse box need to be programmed?
Yes, absolutely. The interior fuse box contains the Body Control Module (BCM) and is linked to the vehicle's anti-theft system. It must be electronically programmed to the car's VIN and keys by a dealer or a specialized shop with Toyota Techstream software.
🎬 See how to program keys to the ECU using Techstream.Where are the fuse boxes on a 2019-2024 RAV4?
There are two main locations. The first is in the engine compartment, on the driver's side. The second, which is also the Body Control Module, is located inside the cabin, under the dashboard to the left of the steering column.
🎬 Watch: See exactly where to find both RAV4 fuse boxes.Can I drive with a bad fuse box?
It is not recommended. If the failure affects critical systems like exterior lighting, wipers, or the anti-theft system, the vehicle could be unsafe or leave you stranded. If multiple, seemingly random electrical components are failing, you should have the vehicle diagnosed immediately.
Why are multiple warning lights on my dash?
While this can be caused by many issues, a failing BCM is a possible culprit. When the BCM malfunctions, it can stop communicating with other modules in the car, causing a cascade of warning lights and error messages on the instrument cluster. A diagnostic scan for communication ("U") codes is the first step.
Helpful Videos
Technical Specifications
OEM Part Numbers: 82730-0R210 89221-0R160
Integrates the Body Control Module (BCM) and Instrument Panel fuse/relay panel. Controls lighting, security, power accessories, and network communication.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
