2025 Toyota Camry Fuse Box & Body ECU: A Guide to Programming, Options, and Replacement

Understanding the 2025 Camry's Integrated Fuse Boxes

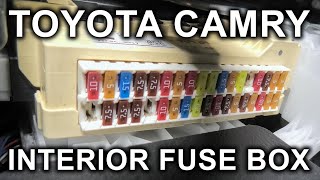

The 2025 Toyota Camry is equipped with at least two main fuse and relay centers, which are actually intelligent electronic modules. One is typically located in the engine compartment, and another is inside the cabin, usually on the driver's side under the dashboard. These are not interchangeable, and they control different functions. The provided part numbers correspond to two distinct, critical components:

• 82730A6020 (Distribution Box / Power Distributor): This part is often located in the instrument panel area and is critical for power distribution. It may have variations depending on options like front parking aids.
• 89221-33E60 (Multiplex Module / Computer Multiplex): This is a more complex Body ECU, also located in the instrument panel. Crucially, its compatibility is tied to specific high-end features, most notably the surround view camera system.

Symptoms of a Failing Fuse Box or Body ECU

As a new model, widespread failure of these modules on the 2025 Camry is not expected unless caused by external factors like water damage, a collision, or a significant electrical event (like improper jump-starting). However, if a problem does occur, the symptoms are often widespread and confusing. Because the Body ECU controls so many unrelated systems, you might notice several strange issues at once.

• Multiple, Unrelated Electrical Failures: For example, the power windows, interior lights, and radio might all stop working simultaneously.
• Erratic or Intermittent Problems: Lights may flicker, the horn might sound randomly, or wipers could activate on their own.
• Dashboard Warning Lights: A failing module can trigger a cascade of warning lights, sometimes for systems that are mechanically fine. This can include SRS Airbag, Hybrid Malfunction, and Parking Brake alerts.
• Parasitic Battery Drain: The module may fail to shut down a circuit, causing the battery to drain overnight.
• Starting Issues: A faulty Body ECU can prevent the car from recognizing the key fob or activating the starter.
• OBD-II Communication Codes: A scan tool may show 'U' codes (e.g., U0140), which indicate a loss of communication with the Body Control Module.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As the 2025 Camry is a new generation, there are no specific recalls or widespread TSBs issued for the failure of these particular fuse box modules at this time. However, early owners have reported various electrical glitches, such as infotainment system freezes and false warning lights, which can sometimes be related to Body ECU software. Toyota has issued recalls for other issues on the 2025 Camry, such as a software error that could cause the instrument panel display to go blank and a potential issue with a bolt in the hybrid inverter. 🎬 Watch: Important 2025 Camry electrical and mechanical issues to watch. It is always recommended to check the official NHTSA website or Toyota's owner portal for the most current recall information for your specific vehicle.

Programming and Calibration: A Critical Step

A replacement fuse box or Body ECU for a 2025 Toyota Camry MUST be programmed to the vehicle. This is not an optional step. The module's software needs to be configured to match your car's unique Vehicle Identification Number (VIN) and its specific set of options (like the surround view camera, parking sensors, etc.).

This process is typically done by a Toyota dealership or a qualified independent shop using Toyota's proprietary diagnostic software, called Techstream. The software connects to the vehicle, identifies the new module, and allows a technician to download the correct configuration and synchronize it with the car's other computers, including the anti-theft immobilizer system. Failure to program the module will likely result in some features not working, persistent warning lights, or even a no-start condition.

Buying a Used 2025 Camry Fuse Box

Buying a used OEM module is often the only cost-effective alternative to a new dealer part, as aftermarket options for a vehicle this new are virtually nonexistent. Here’s what to look for:

• Match the Part Number Exactly: This is the most important rule. Do not deviate from the original part number on your failed unit.
• Verify Vehicle Options: The buyer warning is critical. If your Camry has the surround view camera system, you MUST source a replacement module (specifically 89221-33E60) from a vehicle that also had that option. Mismatched options will cause programming problems.
• Inspect for Damage: Carefully check all connectors for corrosion (a sign of water damage), bent pins, or melted plastic (a sign of a short circuit or heat damage). Ensure the plastic housing is not cracked from a collision.
• Low Mileage is a Plus: While these are not typically high-wear items, a part from a lower-mileage vehicle is always preferable.
• Plan for Programming Costs: Remember that the price of the used part is not the final cost. Factor in the expense of having it professionally programmed and installed.

Replacement Cost Comparison

Prices can vary by location and supplier. The following is an estimate of what you can expect to pay.
