2015-2021 Tesla Model X High-Voltage Pyro Fuse: The Critical Battery Disconnect

What is the High-Voltage Pyro Fuse?

The 2015-2021 Tesla Model X uses several fuse systems. While there are conventional low-voltage fuse boxes for interior electronics and accessories, the part number 1094405-02-F refers to the main High-Voltage (HV) Pyrotechnic Fuse, sometimes called a pyro-disconnect or underhood fuse box. Think of it as the ultimate emergency shut-off switch for the car's powerful battery.

In a crash, the airbag control module sends a signal to the pyro fuse. A tiny explosive charge fires, instantly breaking the main electrical connection from the battery pack. This is essential for safety, as it removes high voltage from the vehicle's chassis and cables. However, because it is a one-time-use device, it will render the car completely inoperable until it is replaced.

Symptoms of a Blown or Failing Pyro Fuse

The symptoms of pyro fuse failure are typically clear and severe. They differ depending on whether the fuse has blown suddenly or is nearing its end of life.

• Complete Loss of Power: The most common symptom of a deployed pyro fuse is a vehicle that will not power on, start, or charge. The car will be completely dead, similar to having the main battery disconnected.
• Dashboard Warning Messages: As the internal, non-rechargeable battery within the pyro fuse assembly ages, the vehicle's Battery Management System (BMS) will detect it. You may see alerts on the screen such as "Battery fuse requires replacement soon" or "BMS_u031_ReplaceSmartFuseSoon". These warnings indicate the fuse has a limited lifespan remaining (typically less than six months) before it fails, potentially disabling the vehicle.
• Diagnostic Trouble Codes (DTCs): A technician can pull specific codes related to the pyro fuse. A deployed fuse will log a code like BMS_f027 (Pyrotechnic Fuse Blown). An end-of-life warning is associated with codes like BMS_u031 or BMS_u032.

Known Issues, Recalls, and Technical Bulletins

While there are no widespread recalls specifically for unintended pyro fuse deployment on the Model X, there are several known issues and service points to be aware of.

• End-of-Life Failure: The pyro fuse assembly contains its own small battery that has a lifespan of approximately eight years. Vehicles approaching this age are likely to display the "replace soon" warning as a matter of course. This is considered a maintenance item, not a defect.
• Spurious Deployment: Though rare, the fuse can blow without a collision due to a severe electrical event, such as a major isolation fault (a short in the high-voltage system).
• Connector Mismatch on Replacement Parts: A Tesla service document notes that some replacement fuse boxes (part number 1094405) may have a mirrored electrical connector compared to the original part. The official procedure involves swapping the lower housing from the old fuse box onto the new one to ensure a correct fit.
• Recalls: Broader electrical system recalls for the 2015-2021 Model X have focused on software issues, such as warning light font sizes or backup camera displays, not the pyro fuse itself.

Replacement Procedure and Programming Requirements

Replacing the pyro fuse is a complex task that requires specialized tools and software.

1. Vehicle Disablement: A technician must follow a strict procedure to de-energize the high-voltage system.
2. Physical Access: Depending on the vehicle's battery pack version (e.g., Battery 1.0 vs. 2.0), the fuse may be located on top of or underneath the main battery pack. This often requires raising the vehicle on a lift and may involve partially or fully lowering the heavy battery pack for access.

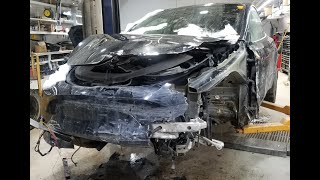

🎬 Watch this walkthrough of the physical pyro fuse replacement process
3. Installation: The old, deployed fuse is unbolted and the new unit is installed. The bolts are typically single-use and must be replaced.
4. System Reset (Programming): The fuse itself does not store data, but the vehicle's Battery Management System (BMS) must be reset after the new part is installed. This is a critical step. A technician uses Tesla's diagnostic software (Toolbox) to enter a special service mode, unlock the vehicle's gateway, and run a routine called "Set Pyro-Fuse Type". This clears the fault codes and informs the vehicle that a new, functional fuse is present. Without this software reset, the vehicle will not power on even with a new fuse.
🎬 See how a technician performs the software reset after installation

Buying a Used 2015-2021 Model X Pyro Fuse

Given the high cost of new OEM parts and labor, a used pyro fuse can be a cost-effective option. However, extreme caution is necessary.

• Verify It Is Not Deployed: This is the single most important factor. A used fuse must be guaranteed to be from a vehicle where it was not deployed. A deployed fuse is a paperweight. Purchase only from reputable recyclers who test and guarantee their parts.

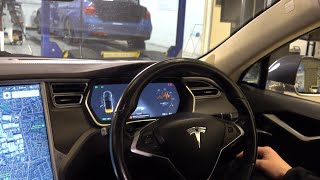

🎬 Watch: How to check if a pyro fuse is good or bad
• Match the Part Number Exactly: Tesla used several different pyro fuses across the Model X lifespan, corresponding to different battery pack sizes and designs (e.g., 1094405-02-F, 1111313-00-F). Using the wrong fuse can result in incompatibility. Always match the part number from your original unit.
• Inspect for Damage: Check for any signs of corrosion, water damage, or physical cracks in the housing. The fuse cover seal is known to sometimes corrode, which can allow water into the battery pack.
• Age Consideration: Remember the 8-year lifespan of the internal battery. A used fuse from an older vehicle may have limited life remaining. Ask the seller for the VIN or build date of the donor vehicle if possible.

Cost of Replacing a Model X Pyro Fuse

Costs can vary based on your vehicle's specific battery configuration and local labor rates. Older models may require more labor to access the fuse.
