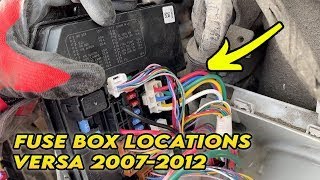

2007-2012 Nissan Versa Fuse Box (IPDM): Solving Crank-No-Start and Electrical Issues

Symptoms of a Failing IPDM

A failing IPDM can create a variety of electrical issues that may seem unrelated at first. Because it controls so many different systems, symptoms can range from a minor annoyance to leaving you stranded.

1. Engine Cranks But Will Not Start

This is the most common and definitive symptom of IPDM failure in this generation of Nissan Versa. The starter will turn the engine over, but the engine won't fire up. This is typically caused by a failure of the non-serviceable, internal fuel pump relay soldered onto the IPDM's circuit board. When this relay fails, it doesn't send power to the fuel pump, and the engine starves for fuel.

2. Intermittent Stalling

Similar to the no-start issue, a failing internal relay for the ECM (Engine Control Module) or fuel pump can cause the vehicle to stall unexpectedly while driving, often at low speeds. The vehicle may or may not restart immediately afterward.

3. Erratic Accessory Behavior

You may notice accessories controlled by the IPDM behaving strangely. This can include:

• Headlights, taillights, or fog lights not working, flickering, or staying on.
• Windshield wipers not turning on or stopping in the middle of the windshield.
• The A/C compressor not engaging.
• Engine cooling fans running constantly, even with the engine off, or not turning on at all, leading to overheating.

4. Battery Drain

A faulty IPDM can cause a parasitic battery drain, where a component like the cooling fan relay sticks in the 'on' position, draining the battery overnight.

Known Issues, Recalls, and TSBs

While there are no specific recalls for the IPDM itself on the 2007-2012 Versa, several recalls exist for other issues like Takata airbag inflators and corroding front coil springs. It's important to distinguish IPDM failure symptoms from these other known problems.

Technical Service Bulletins (TSBs) for later model Nissans highlight issues like a "crank no start" or "no throttle response" in freezing temperatures, which were resolved by replacing the IPDM. Another TSB for newer models points to a "Key System Error" message and DTC B26FE being caused by a faulty IPDM. While not directly applicable to the 2007-2012 models, these bulletins show a history of IPDM-related issues in Nissan vehicles.

Diagnosis and Troubleshooting

Many Nissan vehicles with an IPDM have a built-in self-test (auto active test) that can help diagnose the module. This test cycles through various outputs like the wipers, lights, and A/C compressor clutch, allowing you to see if the IPDM is capable of commanding them on.

To perform the IPDM self-test:

1. Sit in the driver's seat and close all doors.
2. Turn the ignition ON (do not start the engine). For push-button start, press the button twice without your foot on the brake.
3. Within 20 seconds, press the driver's door switch 10 times. The door switch is the black rubber-covered button in the door jamb that tells the car if the door is open or closed.
4. Turn the ignition OFF.
5. Turn the ignition back ON. 🎬 See a demonstration of the Nissan IPDM self-test The horn should honk once to signal the start of the test.

The vehicle will then begin cycling various components on and off. If a component like the A/C compressor clutch clicks on during the test but doesn't work during normal operation, it suggests the IPDM is functional and the problem lies elsewhere (like the control panel or a sensor). If the test won't start or a component doesn't activate during the test, it points towards a faulty IPDM.

Buying a Used Fuse Box (IPDM)

Purchasing a used OEM IPDM is often the most cost-effective solution. These units are generally reliable, and since they do not require programming for this vehicle generation, a used part offers significant value.

What to Inspect:

• Match the Part Number: It is critical to match the OEM part number exactly. Look for the number printed on the side of your original unit. Common part numbers include 284B7-EM30A and 284B7-EM33A.
• Check for Water Damage: The IPDM is located in the engine bay, making it susceptible to moisture. Carefully inspect the electrical connector pins for any signs of green or white, chalky corrosion. Avoid any unit with evidence of water intrusion.
• Look for Heat Damage: Check the plastic housing and connectors for any signs of melting, warping, or discoloration. This can indicate an internal short circuit.
• Verify Intact Connectors: Ensure all plastic connector housings and locking tabs are intact and not cracked or broken from improper removal.

Programming and Installation

For the 2007-2012 Nissan Versa, the IPDM is a plug-and-play component. It does not require any programming, flashing, or dealer visit after installation. This makes it an excellent candidate for DIY replacement.

While later model Nissans do require IPDM configuration with a dealer scan tool after replacement, this generation does not.
