2020-2025 Nissan Sentra Engine Fuse Box (IPDM): Electrical Problems, Diagnosis, and Replacement

Understanding the 2020-2025 Sentra IPDM (Engine Fuse Box)

The main fuse and relay box located in the engine compartment of the 2020-2025 Nissan Sentra is officially known as the Intelligent Power Distribution Module/Engine Room (IPDM E/R). Unlike older, simpler fuse boxes, the IPDM is an active electronic module that plays a critical role in managing the vehicle's electrical systems. It houses standard blade fuses, but also contains non-serviceable internal relays and a microprocessor that controls them based on commands from other vehicle computers. Failure of the IPDM can cause a wide range of confusing and seemingly unrelated electrical problems.

Common Symptoms of a Failing IPDM

A faulty IPDM can manifest in numerous ways. Because it controls so many different components, symptoms can be intermittent and difficult to diagnose. Owners often report strange electrical gremlins that appear without a clear cause.

• Multiple, Unrelated Warning Lights: The dashboard may light up with various warnings simultaneously.
• Intermittent No-Start or Stalling: The engine may crank but not start, or it may stall unexpectedly while driving. This can be caused by a failure of the internal ECM relay.

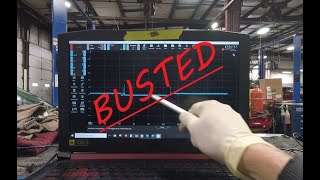

🎬 Watch: How a faulty IPDM causes no-start and no-crank conditions.
• Electrical Components Acting Erratically: Headlights, wipers, horn, or cooling fans may turn on by themselves, not work at all, or operate at the wrong times.
• Rough Idling: The IPDM's failure to properly manage power to engine control relays can lead to an uneven or shaky idle.
• Battery Drain: A faulty IPDM can cause a parasitic draw that drains the battery overnight, even when the car is off.
• Burnt or Melted Fuse Contacts: In some cases, poor connections within the fuse box can cause fuses to look burnt, even if they aren't blown.

Associated OBD-II Codes

While a failing IPDM might not always set a specific trouble code pointing to itself, it can cause communication errors between modules. Look for "U" codes (Communication Network codes) which can indicate that the IPDM is not communicating correctly with the BCM or other modules.

Diagnosing the IPDM: The Auto Active Test

Nissan vehicles equipped with an IPDM have a built-in self-diagnostic function called the "Auto Active Test." This test can be initiated without any special scan tools 🎬 Watch: This video shows you how to start the self-test. and commands the IPDM to cycle through its outputs, allowing you to visually confirm if it can power the various components.

1. Ensure the vehicle is off and lift the windshield wipers off the glass if you don't want them to scratch a dry windshield.
2. Get in the car and turn the ignition ON (engine off). For push-button start models, press the button twice without your foot on the brake.
3. Within 20 seconds, open the driver's door and press and release the driver's door jamb switch 10 times.
4. Turn the ignition OFF, then turn it back ON.
5. If successful, the horn will chirp once, and the test will begin.

The IPDM will then cycle through the following components in sequence, repeating the whole test three times: rear defroster, wipers (low and high speed), parking lights/fog lights, headlights (low and high beam), A/C compressor clutch, and cooling fan. If a component fails to activate during this test, it helps confirm that the issue is with the component itself or the wiring to it, rather than the switch or command module. If multiple components fail to activate, the IPDM itself is the likely culprit.

Known Issues, Recalls, and TSBs

As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) directly targeting the IPDM on the 2020-2025 Nissan Sentra. However, some related recalls and TSBs for this generation include:

• Inner Tie Rods: A recall was issued for some 2020-2021 Sentra models to inspect and replace bent inner tie rods (Campaign ID: PM985).
• Windshield Bubbles: A non-compliance recall was issued for some 2025 models for air bubbles in the windshield laminate (Recall No.: 25V807).
• Electrical TSBs: Various TSBs exist for electrical issues like inaccurate fuel gauges (NTB22-026) and false activation of the Automatic Emergency Braking (AEB) system, which may involve software updates.

While not specific to the IPDM, these demonstrate that electrical system updates and revisions are common. Always check for the latest TSBs when diagnosing complex electrical faults.

Programming and Configuration Requirements

This is a critical topic for the 2020-2025 Sentra. While some older Nissan IPDMs were plug-and-play, newer models often require configuration after installation.

A Technical Service Bulletin for the 2014-2015 Nissan Rogue (NTB14-024c) explicitly states that a new IPDM will cause a no-start condition until it is configured using the dealer's CONSULT-III plus scan tool. The configuration process involves selecting the correct part number from a list within the software to match the vehicle's specific options (e.g., LED vs. Halogen headlights). It is highly probable that the 2020-2025 Sentra follows a similar procedure.

You should assume that a replacement IPDM, whether new or used, will require dealer or specialist configuration to function correctly. An independent shop with an advanced, capable scan tool may be able to perform the configuration, but it is not guaranteed. Simply swapping the unit may result in the vehicle not starting or having multiple features that do not work correctly.

Buying a Used Fuse Box (IPDM)

Purchasing a used IPDM is a great way to save money, but careful inspection is key. Used OEM units are generally preferable to new aftermarket ones due to better build quality and guaranteed fitment.

What to Inspect:

• Match the Part Number Exactly: The part number on the replacement unit MUST match your original unit. The primary known part number is 243116LA0A. Even a single digit difference can mean incompatibility.
• Check for Corrosion: Carefully inspect all electrical pins and connectors, both male and female. Look for any signs of green or white powder, which indicates water damage. A water-damaged unit should be rejected immediately.
• Inspect for Physical Damage: Look for cracks in the plastic housing, broken connector tabs, or any signs of melting around the fuse or relay sockets. This indicates a past short circuit or overheating.
• Verify the Source: If possible, choose a part from a vehicle with lower mileage and no signs of collision or water damage.

Cost Breakdown

Prices can vary based on location and availability. The following are estimates as of early 2026.
