2013-2019 Nissan Sentra IPDM Fuse Box: Why It Needs Programming After Replacement
This guide covers the common failures, replacement costs, and critical programming steps for the Intelligent Power Distribution Module (IPDM) in your Sentra.
- The main fuse box is an electronic module called an IPDM and it MUST be configured by a dealer or specialist after replacement.
- A 'crank, no start' condition is the most common symptom, often due to a failed internal fuel pump relay.
- When buying a used IPDM, you must match the part number from your original module, not the plastic covers.
- You can perform a simple IPDM self-test at home by pressing the driver's door switch 10 times to help diagnose the issue.
Symptoms of a Failing Sentra IPDM
A bad IPDM can cause some of the most frustrating and difficult-to-diagnose issues. Because it controls so many different systems, symptoms can seem random. One of the most common failure points is the internal, non-serviceable fuel pump relay, which leads to a classic 'crank, no start' condition.
- No Start or Intermittent Starting: The engine will turn over (crank) but won't fire up because the fuel pump isn't getting power.
- Engine Stalling: The car may stall unexpectedly while driving, especially at low speeds, if the IPDM cuts power to the fuel pump or ignition system.
- Multiple Random Electrical Failures: You might notice that the headlights, wipers, horn, or air conditioning stop working intermittently or all at once.
- Cooling Fans Run Constantly or Not at All: The IPDM controls the cooling fan relays. A faulty module can cause the fans to run at full blast even when the car is off, draining the battery, or not turn on when needed, leading to overheating.
- Associated OBD-II Codes: While the IPDM itself may not set a specific code, its failure often causes communication errors with other modules, commonly resulting in a U1000 (CAN Communication Circuit) code. You may also see codes related to the components it controls, like P0463 (Fuel Level Sensor) or P0230 (Fuel Pump Primary Circuit).
Pro Tip: Nissan has a built-in IPDM self-test that you can perform without any tools. With the ignition off, sit in the driver's seat and close the door. Turn the ignition ON (don't start the engine), then within 20 seconds, press the driver's door jamb switch 10 times. The car will then begin a test, cycling the wipers, lights, and A/C compressor clutch five times. If these components activate during the test, it confirms the IPDM's output circuits and internal relays are likely working, and your problem may be elsewhere.
🎬 Watch: How to perform the Nissan IPDM auto active testKnown Issues, Recalls, and TSBs
While there are no recalls specifically for the IPDM on this generation of Sentra, there are related electrical issues to be aware of.
- NHTSA Recall #16V485000: Affecting a small number of 2016 Sentra models, this recall was for an oversized terminal pin in the engine room harness that could cause a poor connection to the main computer (ECU), leading to a stall or no-start. This highlights the sensitivity of the electrical connections in this area.
- NHTSA Recall #21V135: A widespread recall for 2016-2019 Sentras involves a faulty brake light switch that can fail to activate the brake lights. While not an IPDM issue, it's a critical electrical safety failure on these vehicles.
- Internal Relay Failure: It is widely documented on forums and by mechanics that the internal relays, particularly for the fuel pump, are a common failure point. Nissan does not sell these relays separately and officially advises against replacing them, as removing them can damage the IPDM's internal connections.
Compatibility Warning: This IPDM fits 2013-2019 Nissan Sentra models equipped with the 1.8L engine only. It is not compatible with models that have the 1.6L Turbo engine, such as the SR Turbo and Nismo trims, which use a different module due to different vehicle options.
The #1 Question: Does a Replacement IPDM Need to be Programmed?
Yes, absolutely. A replacement IPDM, whether it is a new or used OEM unit, must be configured to your specific vehicle. This is not a plug-and-play part.
The process is called 'Configuration,' not full programming. Using a Nissan-specific diagnostic tool like the CONSULT-III plus, a technician must manually select your vehicle's configuration (e.g., with or without Intelligent Key, with or without fog lights) and write that data to the replacement IPDM. Failure to perform this step will result in certain features not working correctly or the vehicle not starting at all.
Most independent shops and DIY mechanics do not have the specific software required to do this. This procedure often requires a visit to a Nissan dealership or a specialty shop with dealer-level tools. Some shops may install the part and then have you take the vehicle to the dealer for the final configuration step.
🎬 Watch: How to operate the Nissan Consult III diagnostic toolBuying a Used 2013-2019 Sentra IPDM
A used OEM IPDM is an excellent, cost-effective alternative to an expensive new unit, especially since aftermarket versions are not widely available. However, you must buy carefully.
- Verify the Part Number: The most important step. Do not rely on the numbers on the plastic covers. You must match the part number on the sticker of the main IPDM unit itself. Common part numbers for the 1.8L Sentra include 284B7-3RA1A and 284B7-3RA3B. Always match the number exactly or have the seller confirm compatibility with your VIN.
- Physical Inspection: When you receive the used IPDM, inspect it closely. Look for any signs of water intrusion, which appears as white or green crusty corrosion on the pins or connectors. Check for any melted plastic around the fuse sockets or any signs that the case has been opened.
- Why Used OEM is a Good Choice: A used OEM module has the correct factory relays and circuit protection, ensuring reliable operation. Given that a new unit still requires expensive dealer configuration, sourcing a low-mileage, inspected used IPDM and factoring in the cost of programming can save you hundreds of dollars.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $250 - $400+ (Part only) |
| Used OEM | $50 - $100 |
| New Aftermarket | Not commonly available |
| Shop Labor (Installation) | $50 - $100 (Installation is quick) |
| Shop Labor (Configuration) | $100 - $250 (Requires dealer or specialist) |
Frequently Asked Questions (FAQ)

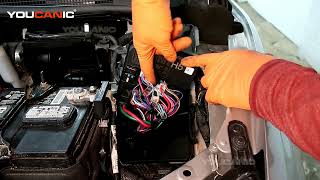

Where are the fuse boxes located on a 2013-2019 Nissan Sentra?
There are three fuse box locations. The main one, the IPDM, is in the engine bay on the driver's side, near the battery. Accessing some of its fuses may require removing the air intake duct. A second, smaller fuse box is also in the engine bay. The third is the interior fuse panel, located on the driver's side of the dashboard, accessible when you open the driver's door.
🎬 See this video for all Sentra fuse box locationsCan I just replace a bad relay in the IPDM?
Officially, no. Nissan considers the IPDM a non-serviceable unit and does not sell the internal relays. While some advanced technicians or electronics specialists may be able to desolder a bad relay and replace it, it is not recommended for the average mechanic. Attempting to remove the relays can damage the circuit board, turning a repairable problem into a necessary replacement.
Is the fuse box the same as the IPDM?
Yes and no. The main fuse and relay center in the engine bay is the IPDM (Intelligent Power Distribution Module). While it serves the function of a traditional fuse box, it is also a computer module. The smaller panel inside the car is a more traditional fuse block. It's important to use the term IPDM when searching for parts or talking to a mechanic to ensure you're referring to the correct component.
Will a bad IPDM cause a 'crank but no start' problem?
Yes, this is one of the most common symptoms of a failed IPDM. The internal relay that controls the fuel pump often fails, preventing the engine from getting fuel. The starter will still crank the engine, but it will not start. If you are experiencing this, the IPDM is a primary suspect.
Part Numbers and Specifications
The part numbers listed in the initial data (24370C9900, 243823SG0A, 24382EW70B) are for individual components like fusible links and plastic covers, not the complete IPDM assembly.
When searching for a replacement, you must match the number on the main module itself. Known IPDM part numbers for the 2013-2019 Sentra (1.8L) include:
- 284B7-3RA1A
- 284B7-3RA3B
Warning: Always verify the part number from your original unit before ordering a replacement. Part numbers can vary based on model year and vehicle options like Intelligent Key.
Helpful Videos
Technical Specifications
OEM Part Numbers: 284B7-3RA1A 284B7-3RA3B 24370-C9900 (Fusible Link Only) 24382-3SG0A (Cover Only) 24382-EW70B (Cover Only)
Intelligent Power Distribution Module (IPDM) for 1.8L engine models. Requires post-installation configuration with Nissan CONSULT or equivalent diagnostic tool.
