2004-2006 Nissan Maxima Fusible Link Box: Solving Electrical Gremlins and No-Start Issues

Primary Failure Point: The Fusible Link Holder

The main electrical distribution center in the engine bay of a 2004-2006 Nissan Maxima is a common source of electrical issues. This unit is technically a Fusible Link Holder that often integrates with or is located next to the Intelligent Power Distribution Module (IPDM E/R). While sometimes generically called a 'fuse box,' its failure symptoms are often more severe than a simple blown fuse.

Known Issues and Common Failure Modes

• Internal Failure: The fusible links, which are essentially high-amperage fuses designed as slow-blow wires, can burn out from age, a short circuit elsewhere in the vehicle, or a sudden voltage spike. This can cut power to one or more critical systems.
• Corrosion: Located in the engine bay, the terminals and internal connections are susceptible to moisture and corrosion. This increases resistance, causing voltage drops, intermittent power, and heat buildup that can melt the housing.

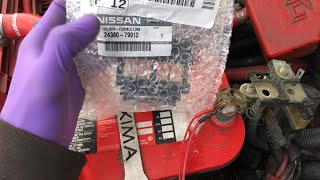

• Physical Damage: The plastic housing can become brittle over time and crack. In some cases, improper jump-starting procedures can damage the fusible links connected directly to the battery terminal.

Symptoms of a Failing Fusible Link Box

Failure of the fusible link box can manifest in several ways, ranging from intermittent annoyances to a completely dead vehicle.

• Crank, No-Start Condition: The engine turns over but will not fire up. This can happen if the fusible link for the fuel pump or engine control systems has failed.
• No-Crank, No-Start Condition: Turning the key does nothing, or you only hear a single click. This may indicate a failure of the main fusible link or the starter relay circuit housed within the assembly.
• Multiple Unrelated Electrical Failures: Systems like headlights, interior lights, radio, and power windows may stop working simultaneously.
• Dimming Lights: Headlights and interior lights may appear dim or flicker due to increased resistance and voltage drop across a failing link.
• Visible Damage: A visual inspection may reveal melted plastic around the main links, a burning smell, or significant corrosion on the terminals.
• Communication (U-prefix) OBD-II Codes: While the box itself may not store codes, its failure can cause various control modules to lose power and communication with each other, resulting in codes like U1000 (CAN Communication Circuit).

Buying a Used 2004-2006 Maxima Fuse Box

A used OEM fusible link box is often a reliable and cost-effective solution. Because this part does not contain complex electronics that wear out, a unit from a low-mileage vehicle can provide excellent service life. Here’s what to look for:

• Verify Part Numbers: Match the OEM part number from your original unit exactly. Common part numbers for this assembly and its components include 24370-C9900, 24381-C9900, 24382-7Y000, and 24382-8J011. Using the wrong part can lead to incompatible connections or missing circuits.
• Physical Inspection is Key: Carefully inspect the used part for any signs of overheating, such as melted plastic or discolored terminals. Check all connection points for corrosion (white or green powder). Ensure the plastic housing and covers are intact and not cracked.
• Check the VIN Digit: The original buyer warning to 'Verify your VIN 4th digit is B' suggests there may be variations based on trim or equipment packages. While searches did not confirm the exact meaning of this digit for the fuse box, it highlights the importance of matching your original part precisely.
• Why Used OEM is a Good Choice: Original Nissan parts are built to high standards for material quality and electrical conductivity. A used OEM unit is generally superior to a new, cheap aftermarket part which may use lower-grade plastics and metals that can't handle the electrical load, leading to premature failure.

Replacement Overview

Replacing the fusible link box is a straightforward task for a DIY mechanic with basic tools. The process generally involves disconnecting the battery, removing the covers, unbolting the main power feeds from the battery, unplugging the wiring harnesses, and swapping the unit.

Cost Comparison

Recalls and Technical Service Bulletins (TSBs)

While there are no specific recalls for the fusible link box itself on the 2004-2006 Maxima, there was a recall (NHTSA ID: 05V512000) for a pinched wire harness under the driver's seat that could cause a short circuit and, in some cases, a fire. This highlights the sensitivity of the vehicle's electrical system. There is also a TSB (NTB05-067) related to high idle and code P0507, which involves complex electrical diagnosis but is not directly related to the fuse box itself.
