2005-2006 Mazda Tribute & Ford Escape Fuse Box: Solving Electrical Gremlins

Understanding the Tribute and Escape Connection

The 2005-2006 Mazda Tribute is a mechanical twin to the Ford Escape of the same years. They were built on the same platform and share most of their parts, including the primary interior fuse box. Ford refers to this part as the Smart Junction Box (SJB), and it's the main culprit behind many frustrating electrical problems on these SUVs. This guide applies to both vehicles, as the symptoms, causes, and repair procedures are identical.

Symptoms of a Failing Smart Junction Box (SJB)

When the SJB starts to fail, it can create a host of bizarre electrical issues that may seem unrelated. Because the SJB controls so many different systems, symptoms can vary widely. Common signs of a bad SJB include:

• Erratic Lights: Headlights, interior lights, or taillights may flicker, stay on continuously, or fail to turn on at all.
• Power Window and Lock Malfunctions: Windows may refuse to go up or down, and door locks might cycle randomly or not respond to the switch or key fob.
• Parasitic Battery Drain: A very common complaint is a battery that dies overnight. A faulty SJB can fail to let other modules go to "sleep" when the vehicle is off, causing a slow but steady power drain.
• No-Start or Intermittent Start: The SJB is part of the vehicle's anti-theft and starting circuits. A failure can prevent the engine from cranking or starting.
• Wipers or Horn Activating Randomly: The windshield wipers may turn on by themselves, or the horn might sound unexpectedly.
• False Dashboard Warnings: You may see multiple warning lights for systems like ABS or airbags, even if the systems themselves are fine. This is due to communication errors originating from the failing SJB.

The #1 Cause of Failure: Water Intrusion

The primary reason for SJB failure in these vehicles is water damage. The SJB is located in the passenger-side kick panel area, right next to the center console. This position makes it extremely vulnerable to water leaking into the cabin from several common points:

• Clogged cowl drains (at the base of the windshield)
• A poorly sealed windshield replacement
• Cracked body seams under the plastic cowl panel
• Clogged sunroof drains
🎬 Watch this video to see how water leaks reach the floorboard.

Water drips down from behind the dashboard directly onto the SJB and its connectors, causing corrosion on the internal circuit board. This corrosion leads to short circuits and the unpredictable electrical problems listed above.

Programming and Installation: This is NOT a Plug-and-Play Part

A replacement Smart Junction Box, whether new or used, must be programmed to your vehicle's specific configuration. The SJB needs to know which options your vehicle has (e.g., power moonroof, keyless entry, automatic headlights) to control them correctly. If you install an unprogrammed SJB, many features will not work, and the vehicle may not start.

There are three main ways to get a replacement SJB programmed:

1. Dealership: This is the most reliable, but also the most expensive, option. A dealer technician will use Ford's Integrated Diagnostic System (IDS) to install the module and program it with your vehicle's original "As-Built" data.
2. Independent Repair Shop: Many independent shops that specialize in domestic vehicles have the tools (like high-end Autel or Snap-on scanners) and subscriptions needed to program Ford modules. This is often cheaper than the dealer.

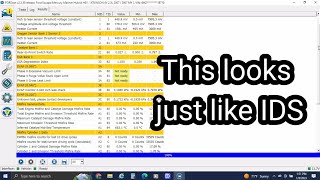

3. DIY with FORScan: For the advanced DIY mechanic, it is possible to program a used SJB using a laptop, a compatible OBD-II adapter (like the OBDLink EX), and FORScan software. This powerful tool allows you to copy the configuration data from your old, failing SJB (if it can still communicate) and write it to the replacement unit. This is the most cost-effective method but carries risk; an error during programming could disable the vehicle.

Buying a Used 2005-2006 Tribute or Escape Fuse Box

Given the high cost of new units, a quality used SJB is an excellent choice for this repair. Here’s what to look for:

• Verify the Part Number: The most important step is to match the part number exactly. The number is printed on a sticker on the side of the SJB. Common Ford part numbers for this era start with 5L8T-14A067-xx or 6L8T-14A067-xx. The Mazda part number is ZZC667010. While getting a module from a vehicle with identical options is helpful, the key is an exact part number match.
• Thoroughly Inspect for Corrosion: This is non-negotiable. Carefully examine all the connector pins on the module. Look for any signs of white, green, or blue crusty residue, which indicates water damage. Check the plastic case for water stains or discoloration. Do not buy any unit that shows even minor signs of corrosion.
• Source from a Dry Climate: If possible, purchase a part from a recycler located in a dry, southern or western state. These parts are far less likely to have been exposed to the moisture and road salt that cause corrosion.
• Why Used OEM is a Good Choice: A clean, used OEM module that has been inspected for water damage is often more reliable than a new aftermarket part, which may have quality control or programming issues. Since the failure is almost always external (water), a dry OEM unit is a solid repair part.

Cost Comparison

Associated Recalls and Technical Service Bulletins (TSBs)

While there are no direct recalls for the Smart Junction Box itself on the 2005-2006 Tribute, several recalls for other issues exist. Notably, Ford has issued TSBs for other models regarding water intrusion into fuse boxes (called Battery Junction Boxes or BJBs in those cases) due to improperly seated covers, which causes similar electrical problems. This highlights a known issue pattern with Ford-designed electrical components and water leaks.
