2016-2024 Mazda MX-5 Miata Engine Fuse Box: Part Numbers, Diagnosis, and Replacement
This guide covers common failure symptoms, part number variations, and how to choose the right used engine bay fuse box for your ND Miata.
- The engine fuse box requires NO programming; it is a simple plug-and-play replacement.
- This part is the housing only. Fuses, relays, and fusible links must be purchased separately or transferred from the old unit.
- Mazda has updated this part. The newest part number is N243-66-76YC, which supersedes older versions but remains compatible.
- Failure of the box itself is rare; symptoms often involve multiple, unrelated electrical systems failing at once.
Symptoms of a Failing Fuse Box
A problem with the fuse box itself is much rarer than a simple blown fuse. However, when the box does fail, it can create confusing and widespread electrical issues. Look for these signs:
- Multiple, Unrelated Electrical Failures: If several systems that are not on the same circuit stop working at once (e.g., headlights, radio, and a fuel system component), it could point to a problem within the fuse box's internal connections or bus bars. A Reddit user with a 2017 model experienced limp mode accompanied by engine, tire pressure, and traction control lights, with forum members suggesting a fault where these systems converge, such as the fuse box.
- Melting, Burning Smell, or Discoloration: Physical damage is the most obvious sign of failure. A strong electrical burning smell from the engine bay is a major red flag. Upon inspection, you might find that a fuse holder has melted, the plastic housing is warped, or there is discoloration around one of the main power terminals. This is often caused by a poor connection creating high resistance and heat, or a major short circuit.
- Engine Won't Crank or Start: While many issues can cause a no-start, a failure in the main fuse box can cut power to the starter relay, fuel pump, or engine computer. One ND Miata owner with a modified car traced a recurring no-start issue that generated 17 different error codes back to a single fuse circuit within the box. 🎬 Watch how this single circuit triggered 17 error codes.
- Specific Systems Inoperative After Checking Fuses: If a component like the headlights won't work and you've confirmed its fuse is good, the problem may lie in the contacts or wiring within the fuse box itself. Corrosion or a broken internal trace can prevent power from reaching the fuse.
Associated OBD-II Codes
A failing fuse box will not typically generate a code for itself. Instead, you will see codes for the components or modules that have lost power or communication. These are symptoms, not root causes.
- U-Series Codes: Codes like
U0140: Lost Communication with Body Control Moduleindicate that a major computer has lost power or cannot communicate on the vehicle's network. Power for these modules runs through the fuse box. - Multiple P, B, and C-Series Codes: A flood of seemingly unrelated codes from the powertrain (P), body (B), and chassis (C) systems can sometimes be traced back to a single power distribution failure at the fuse box.
Pro Tip: Before condemning the fuse box, always check the battery terminals for tightness and corrosion, and inspect the main ground connections. A loose or corroded ground can cause many of the same widespread electrical gremlins.
Known Issues, TSBs, and Recalls
As of mid-2024, there are no recalls or widespread Technical Service Bulletins (TSBs) issued by Mazda or the NHTSA specifically for the engine bay fuse box on 2016-2024 MX-5 Miata models. Recalls for this generation pertain to other components like airbag control module software, fuel pumps, and automatic transmission controls. The fuse box assembly has proven to be a reliable component.
Does the Fuse Box Need to be Programmed?
No. The engine bay fuse box on the 2016-2024 Mazda MX-5 Miata is a non-programmable, "dumb" part. It is a plastic housing with metal bus bars to distribute power. It does not contain any software or microprocessors. Replacement is a direct, physical swap and does not require any programming, flashing, 🎬 See a complete step-by-step fuse box swap walkthrough. or a visit to a dealer for calibration. This is in contrast to other electronic modules in the car, like the instrument cluster or infotainment system, which do have software and may require special procedures.
Buying a Used Fuse Box: What to Look For
Since new aftermarket versions of the specific housing are generally not available, a used OEM part is an excellent, cost-effective option. Here’s what to inspect:
- Check for Physical Damage: Carefully inspect the entire housing for cracks, especially around the mounting tabs. Look closely at all fuse and relay sockets for any signs of melting, warping, or black/brown burn marks.
- Inspect for Corrosion: Look for any white or green crusty buildup on the terminals where fuses and relays plug in. More importantly, inspect the large connector ports on the bottom or sides of the box where the main vehicle harnesses connect. Clean terminals are essential for proper function.
- Verify Part Numbers (Supersession): Mazda has updated this part over the years. The part numbers have superseded as follows: N243-66-76YA → N243-66-76YB → N243-66-76YC. While all versions will fit, the latest version, N243-66-76YC, is the most current revision and is the preferred choice. However, a clean, undamaged 'YA' or 'YB' version will work perfectly.

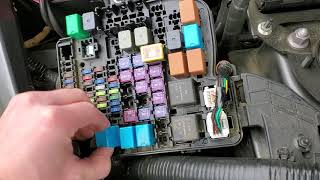

- What's Included: Remember that a used fuse box is typically sold as the housing only. Do not expect it to come with a full set of fuses, relays, or fusible links. You will likely need to transfer these components from your old fuse box. Always use fuses with the correct amperage rating as specified on the fuse box cover. 🎬 Watch how to safely change fuses with the correct type.
Warning: The part being sold is the fuse and relay *housing*. It does not include the fuses, relays, or the main wiring harness, which are all sold separately.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $50 - $75 |
| New Aftermarket | Not Generally Available |
| Used OEM | $45 - $100 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Does a replacement fuse box for a 2018 Miata need to be programmed?
No, the engine bay fuse box does not require any programming or dealer intervention. It is a simple plug-and-play component.
Are fuses and relays included with a new or used fuse box?
Typically, no. Both new and used fuse boxes are sold as the housing only. You must purchase fuses and relays separately or transfer them from your original unit. Always verify the condition of old relays and fuses before transferring them.
What is the difference between the engine fuse box and the interior fuse box?
The 2016-2024 Miata has two main fuse panels. The one in the engine bay, which this article covers, handles high-current systems like the engine, cooling fans, and headlights. The second fuse box is located in the passenger compartment, typically in the driver's or passenger's footwell area, and handles interior circuits like the radio, interior lights, and power outlets.
Can a bad fuse box cause the car to go into limp mode?
Yes. If the fuse box has an internal fault that cuts or intermittently supplies power to critical engine sensors or the transmission control module, it can trigger the vehicle's computer to enter a protective "limp mode," which severely limits engine power and speed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9970-51-320 997051320 N243-66-76YA N243-66-76YB N243-66-76YC N2436676YB
Houses main vehicle fuses, relays, and fusible links. Located in the engine compartment.
