2013-2019 Lexus RX450h Engine Fuse Box: Decoding Part Numbers and Programming

Key Symptoms of a Failing RX450h Fuse Box

A problem with the main engine fuse box is often more complex than a single blown fuse. It can create a variety of confusing and seemingly unrelated electrical issues. Look for these warning signs:

• Multiple Unrelated System Failures: This is the most common symptom. For example, the radio, headlights, and power windows may stop working simultaneously. 🎬 Watch: Main fuse replacement for no-crank and power loss issues This points to a problem with the power source (the fuse box) rather than the individual components.
• Frequently Blowing Fuses: If you find yourself replacing the same fuse repeatedly, it could indicate a short circuit within the fuse box's internal wiring.
• Loose Fuses: The terminals that hold the fuses can wear out or corrode, leading to a poor connection. A loose fuse can cause intermittent power loss to that circuit.
• Visible Damage or Corrosion: A physical inspection may reveal obvious problems. Look for white or green powdery corrosion on the metal terminals, melted plastic around fuse slots, or discoloration from overheating.
• Burning Smell: A smell of burning plastic coming from the engine bay can be a sign of a short circuit or an overloaded connection within the fuse box, which is a serious fire hazard.

Known Issues, Recalls, and TSBs

The engine fuse box assembly on the 2013-2019 Lexus RX450h is a generally reliable component. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific safety recalls or widespread technical service bulletins (TSBs) related to fuse box failure for these model years. While recalls exist for other components on the RX450h, the absence of any for the fuse box suggests that failures are typically isolated incidents caused by external factors like water intrusion or electrical shorts, rather than a manufacturing or design defect.

Buying a Used 2013-2019 RX450h Fuse Box: Your Checklist

A used OEM fuse box can be a smart, cost-effective solution. Because this part has no common moving parts and is generally reliable, a clean, undamaged unit from a donor vehicle is an excellent alternative to a costly new part. Aftermarket versions are not commonly available, making used OEM the primary alternative.

How to Verify Compatibility

This is the most important step. The fuse box for the 2013-2019 RX450h is not a one-size-fits-all part. There are different part numbers used throughout this generation. You MUST match the part number from your original fuse box exactly.

• Early Models (approx. 2013-2015): Often use part number 82720-48090 (referred to as Block Assy, Engine Room Junction).
• Later Models (approx. 2016-2019): Often use part numbers like 82620-48230 (Block Assy, Fusible Link) or 82742-48030.

Physical Inspection Checklist

When your used fuse box arrives, inspect it carefully before installation:

• Check for Cracks: Inspect the plastic housing for any cracks or signs of impact, especially around the mounting tabs.
• Look for Heat Damage: Pay close attention to the slots where fuses and relays plug in. Any melted, warped, or discolored plastic is a major red flag.
• Inspect Terminals for Corrosion: All metal terminals inside the connectors and fuse slots should be clean and bright. Any sign of green or white powder indicates corrosion and the part should be rejected.
• Confirm It's a Bare Box: As noted from the factory, these assemblies are typically sold as a bare housing. You will need to carefully transfer all of your existing fuses, relays, and fusible links to the replacement unit. Make sure the used part you are buying is the main block assembly itself.

Programming and Installation Guide

Does the Fuse Box Need Programming?

Possibly. While a fuse box is primarily a power distribution component, modern vehicles integrate them into the vehicle's communication network. There is no official statement from Lexus confirming if a replacement is always plug-and-play. Anecdotal evidence suggests that some vehicles may require programming or calibration with a dealer-level tool (like Toyota/Lexus Techstream) to ensure all systems communicate correctly. The fuse box powers the immobilizer system, and an incorrect installation or incompatible part could result in a no-start condition.

Installation Tips

Replacing the fuse box is feasible for an experienced DIY mechanic. The difficulty is moderate, primarily due to the number of connections.

1. Disconnect the 12V Battery: This is the first and most important safety step. Locate the 12V auxiliary battery in the cargo area and disconnect the negative terminal.
2. Remove Covers: Take off the main engine fuse box cover.
3. Document Everything: Before removing anything, take clear photos of the fuse box showing the location of every fuse and relay. This will be your guide for reassembly.
4. Disconnect Power Feeds: Carefully unbolt the main power cables attached to the fuse box's bus bars.
5. Release Wiring Harnesses: Unplug the large multi-pin connectors from the bottom and sides of the fuse box. These have locking tabs that must be pressed to release them.
6. Swap the Box: Unbolt the old fuse box from the vehicle and install the new one.
7. Transfer Fuses and Relays: One by one, carefully transfer every fuse and relay from your old box to the exact same position in the new one. Use your photos as a guide. A fuse puller tool is recommended to avoid damage.

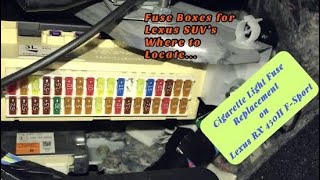

🎬 See how to replace a blown fuse on an RX450h
8. Reconnect and Test: Reconnect all wiring harnesses and main power feeds. Reconnect the 12V battery and test all vehicle functions.

Cost Comparison

Prices can vary based on supplier and condition. Here are some typical cost ranges:

Frequently Asked Questions (FAQ)

Part Numbers and Specifications

The following OEM part numbers are associated with the engine fuse box assembly for the 2013-2019 Lexus RX450h. Always confirm the number on your specific part before ordering a replacement.
