2019-2023 Jeep Wrangler Fuse Box: Solving Electrical Gremlins and Matching the Right Part

The Critical Matching Game: Which Fuse Box Fits Your Wrangler?

Unlike many other parts, the fuse box for a 2019-2023 Jeep Wrangler (JL) is not a one-size-fits-all component. Matching the correct part is critical, as installing the wrong one can lead to non-functioning systems or even damage. Compatibility depends entirely on your Wrangler's specific engine and powertrain. The original part number is printed on a sticker on the side of your existing fuse box; always use this number to find a replacement.

Fuse Box Variants

Below is a breakdown of the common variants based on the initial data and verified through part searches. Always confirm the part number from your specific vehicle before purchasing.

• 3.6L V6 (With or Without eTorque): These models use specific Power Distribution Centers. For example, part number 68370552AC is listed for 2019-2020 Wranglers with the 3.6L V6 engine, including those with the eTorque mild-hybrid system.
• 2.0L I4 Turbo (Non-eTorque): These engines require a different fuse box. The compatibility is very specific and will not interchange with eTorque or other engine sizes.
• 2.0L I4 Turbo (With eTorque): Models equipped with the 2.0L engine and the eTorque mild-hybrid system have their own dedicated fuse box.

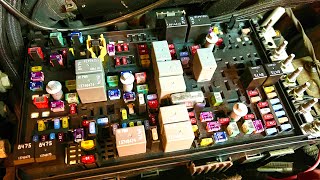

• 4xe Plug-in Hybrid (PHEV): The 4xe models have a unique electrical architecture and require a specific fuse box (also called a Pre Fuse Block). Part number 68520857AA is specified for 2022-2023 Wrangler 4xe models.

Symptoms of a Failing Fuse Box

A problem with the fuse box itself is different from a single blown fuse. While a blown fuse affects one component (like the radio or a power outlet), a failing fuse box can cause widespread and confusing electrical problems.

• Multiple, Unrelated Electrical Failures: The most common sign. For example, the wipers, radio, and power windows may all stop working at the same time.
• Engine No-Start or Stalling: A damaged PDC can fail to power the fuel pump, ignition system, or Engine Control Module (ECM), preventing the engine from starting or causing it to shut down while driving.
• Visible Damage or Corrosion: Open the lid and inspect the fuse box. Look for white or green crusty deposits (corrosion from water intrusion), melted plastic around fuse or relay terminals, or any signs of burning.
• Burning Plastic Smell: A strong smell of burning plastic from the engine bay can indicate a short circuit is overheating the fuse box housing or internal wiring.
• Fuses Blow Immediately: If you replace a fuse and the new one blows instantly, it often points to a short circuit in that component's wiring. However, if multiple fuses in different circuits do this, the fuse box itself may have internal shorts.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Common Problem: Unseated Fuses from the Factory

A widely reported issue on Jeep Wrangler JL forums is that fuses and relays are not fully seated from the factory. This poor connection can cause intermittent and bizarre electrical problems, mimicking a failing module. Before diagnosing a bad fuse box, it is a common practice to open the lid and press down firmly on every fuse and relay to ensure they are fully seated. Many owners have resolved complex electrical gremlins with this simple, free step.

Water Intrusion

Wranglers are known for potential water leaks, and the fuse box is not immune. While the box has a cover, water can find its way in, especially from a clogged cowl drain or a bad seal. Water causes corrosion on the internal metal bus bars and fuse terminals, leading to poor connections and eventual failure. Some forum users have traced water leaks to holes in the firewall near the cowl that allow water to enter the cabin and potentially affect electrical components.

Recalls and TSBs

• Recall 57B (NHTSA): A very small recall was issued for four 2024 Wrangler units equipped with the trailer tow option. These vehicles were built with an incorrect Power Distribution Center that prevented trailer lights from working.
• Recall 22V768000 (NHTSA): Affecting 2022-2023 Wrangler 4xe models, this recall addresses incorrect fasteners used for the 200-amp fuse in the high-voltage battery, which could cause excessive heat and a loss of power. Dealers will inspect and replace the fuse as needed.
• Forum Reports of Melted Fuse Arrays: Some owners have reported a major fuse array blowing, sometimes due to a failing auxiliary battery. 🎬 Watch: How to test and replace the high amp fuse array In some cases, this has led to a complete vehicle shutdown.

Buying a Used Fuse Box: What to Look For

A used OEM fuse box from a reputable recycler can be a cost-effective solution. Since these units do not require programming, a clean, verified part is an excellent alternative to an expensive new one.

1. Verify the Part Number: This is the most important step. The part number on the used fuse box MUST exactly match the one on your original unit. There is no interchangeability between different engine and powertrain configurations.
2. Inspect for Physical Damage: Check for any cracks in the housing, broken mounting tabs, or damage to the main connector ports.
3. Look for Signs of Heat: Carefully examine the slots where fuses and relays plug in. Any melted or discolored plastic is a major red flag, indicating a previous short circuit or overload.
4. Check for Corrosion: Look for any white, green, or blueish powder or crust on the metal terminals. This indicates water or moisture damage, and the part should be rejected.

Programming and Setup

The fuse box (Power Distribution Center) on the 2019-2023 Jeep Wrangler is a non-integrated module. It is fundamentally a sophisticated junction box that directs power. It does not contain software and does not need to be programmed or flashed after installation. This makes replacement a straightforward mechanical job that does not require a visit to the dealer for software configuration.
