2018-2023 Jeep Wrangler (JL) Fuse Box: Decoding Failures, Part Numbers & Water Leaks

Crucial 2018 Model Year Information

Is Programming Required After Installation?

No. A replacement fuse box (Power Distribution Center) does not need to be programmed or flashed when installed in a 2018-2023 Jeep Wrangler. It is a direct, plug-and-play component swap. This is a major advantage for DIY replacement and for using a recycled OEM part, as it does not require a trip to the dealership for software configuration.

Symptoms of a Failing Fuse Box

A single blown fuse is a simple fix, but a failing fuse box is a much larger problem that can cause confusing and widespread issues. Look for these key symptoms:

• Multiple, Unrelated Electrical Failures: This is the most common sign. For example, your power windows, radio, and wipers might all stop working at once, or you may see random warning lights for systems that seem fine. This happens because the internal connections (bus bars) that supply power to multiple circuits have corroded or failed.
• Engine No-Start or Intermittent Stalling: The fuse box powers critical engine components like the fuel pump, ignition system, and Engine Control Module (ECM). A bad connection can prevent the engine from starting or cause it to shut off unexpectedly while driving.
🎬 Watch: How to fix a cranking but no-start issue.
• Dashboard Lights Up Like a Christmas Tree: Many owners report seeing numerous, random warning lights appear on the instrument cluster simultaneously. While this can indicate a failing fuse box, it is also a very common symptom of a weak or failing main or auxiliary battery.
• Visible Corrosion or Melting: A physical inspection may reveal a white or greenish powder (corrosion) on the terminals, or melted plastic around a specific fuse or relay socket. This is a clear sign of water damage or a severe electrical short.

Known Issues: Water Intrusion is the #1 Killer

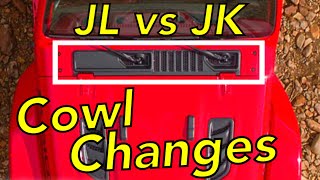

The primary cause of fuse box failure in the Jeep Wrangler JL is water intrusion. While the box has a cover, water can find its way inside, typically from a clogged cowl drain located under the windshield wipers. 🎬 See how the cowl drain design changed on the JL. When leaves and debris clog this drain, rainwater overflows and can run down the firewall, potentially entering the fuse box and other electronics. This water leads to corrosion on the internal metal bus bars and terminals, creating high resistance, poor connections, and eventual circuit failure.

Buying a Used Fuse Box: A Buyer's Checklist

A used OEM fuse box is an excellent, cost-effective alternative to an expensive new unit, especially since no programming is required. However, careful inspection is key to getting a good part.

1. Match the Part Number EXACTLY: This is the most important rule. Fuse boxes are specific to the engine (3.6L V6, 2.0L Turbo) and powertrain (standard, eTorque, or 4xe Hybrid). Using a box from a different configuration will result in system malfunctions. The part number is printed on a sticker on the side of the housing.
2. Inspect for Corrosion: Look closely at all fuse and relay terminals, both top and bottom if possible. Avoid any unit with signs of white or green crusty deposits. This indicates past water damage that will lead to future failure.
3. Check for Heat Damage: Examine the plastic housing around each fuse socket. Any discoloration, melting, or warping is a red flag indicating a previous short circuit that may have damaged the internal wiring.
4. Verify Physical Integrity: Ensure the plastic housing is not cracked and that all mounting tabs and connector clips are intact. Broken clips can lead to loose connections, which is often what causes these units to fail in the first place.
5. Transfer Your Fuses and Relays: Most used fuse boxes are sold as bare housings. You will need to carefully transfer all the fuses and relays from your old unit to the replacement. Take a clear photo of your original fuse box layout before you begin.

Cost of Replacement

Replacing a Wrangler JL fuse box can vary in cost depending on the part source and labor.

Important Recalls and Technical Bulletins (TSBs)

While there are no major recalls specifically for the fuse box itself, there are critical electrical system recalls for this generation of Wrangler.

• NHTSA Recall 26V363: Affects some 2021-2025 Wranglers and Gladiators. An electrical connection at the Electric Hydraulic Power Steering (EHPSP) pump can develop high resistance, overheat, and pose a fire risk, even when the vehicle is off. Owners are advised to park outside until the repair is performed.
• NHTSA Recall 25V-741: Affects 2020-2025 Wrangler 4xe (PHEV) models. The high-voltage battery pack may have an internal defect that can lead to a fire. Owners are advised to park outside and refrain from charging the vehicle until it is repaired.
• Forum-Reported TSBs: Owners on forums frequently mention TSB 18-092-19, which involves a PCM software update to address widespread electrical issues, often in conjunction with replacing weak batteries.

Jeep Wrangler JL Fuse Box Part Number Guide

Compatibility is critical. The part number must match your vehicle's exact engine and options. This list is a reference based on verified data, but you should always confirm the number on your original part before ordering.

Frequently Asked Questions (FAQ)
