2015-2023 Jeep Renegade Fuse Box (TIPM): Solving Electrical Gremlins and No-Start Issues

Is It Your Battery or the Fuse Box?

Before suspecting a bad fuse box, it's critical to check your vehicle's battery. A weak or failing battery is the most common cause of widespread electrical problems in the Jeep Renegade. The vehicle's electronics are highly sensitive to voltage, and a battery that is on its way out can cause symptoms that perfectly mimic a faulty fuse box, even if it still has enough power to start the engine.

Symptoms like flickering dashboard lights, random warning messages, and systems shutting down can often be traced back to a battery that can no longer provide stable voltage. Always test your battery with a quality multimeter (it should read around 12.6 volts when the vehicle is off) and ensure the terminals are clean and tight. If you replace the battery, use a high-quality replacement, as many owners report that budget batteries do not resolve these sensitive electrical issues.

Common Symptoms of a Failing Fuse Box (TIPM)

If a new, fully charged battery doesn't solve your electrical issues, the engine bay fuse box (TIPM) is the next logical component to inspect. A failing TIPM can create bizarre and intermittent problems that may seem unrelated.

• Widespread Electrical Chaos: Multiple warning lights may appear on the dashboard simultaneously, gauges can flicker or drop to zero, and the radio may shut off unexpectedly.
• No-Start or Stalling: The engine may crank but refuse to start, or it may stall suddenly while driving. This can be caused by the TIPM failing to power the fuel pump or engine computer.
• Loss of Power: The accelerator pedal may become completely unresponsive, forcing you to pull over.
• Component Failure: Individual systems may stop working, such as headlights, power windows, door locks, or windshield wipers. In some cases, these components may activate on their own.
• Shifter and Brake Issues: You might hear the shifter interlock clicking repeatedly or be unable to shift the vehicle out of Park. The dashboard might also display a message that it doesn't detect your foot on the brake.

Key OBD-II Code: P0688

A strong indicator of a fuse box-related failure is the diagnostic trouble code (DTC) P0688: ECM/PCM Power Relay Sense Circuit Open. This code means the main engine computer (ECM/PCM) has detected a problem with the relay that supplies its power. In many Jeep vehicles, this critical relay is integrated directly into the TIPM/fuse box and is not a separate, replaceable part. A P0688 code, especially when combined with the symptoms above, points directly to a fault within the fuse box assembly itself.

Buying a Used 2015-2023 Renegade Fuse Box: What to Check

A used OEM fuse box is an excellent, cost-effective alternative to an expensive new unit. Since no programming is required, it's a straightforward swap. However, you must verify you are buying the correct part and that it is in good condition.

1. Match the Engine and Part Number

This is the most critical step. The Renegade uses different fuse boxes for the 2.4L Tigershark and 1.3L Turbo engines. The internal wiring and fuse capacities are different. Installing the wrong one will cause electrical problems. Always match the part number from your original fuse box to the one you are buying. The part number is typically printed on a sticker on the side of the unit.

2. Physical Inspection is Key

When your used part arrives, inspect it carefully before installation:

• Check for Corrosion: Look for any white or greenish chalky residue on the pins, terminals, or anywhere on the circuit board. This is a sign of water damage, and the part should be returned.
• Inspect for Melted Plastic: Check the areas around the fuse and relay sockets for any signs of melting or discoloration. This indicates a past short circuit or overload.
• Verify No Broken Tabs: Ensure all plastic mounting tabs and the cover locking mechanism are intact.

Recalls and Technical Service Bulletins (TSBs)

While there are no widespread recalls specifically for the fuse box assembly on the 2015-2023 Renegade, there is one related recall to be aware of. Recall NHTSA #U87 was issued for some 2018 models because the Powertrain Control Module (PCM) could fail, causing a stall or no-start condition. The symptoms are very similar to a bad fuse box, so it's worth checking if your vehicle was affected by this recall. Other TSBs for this generation often relate to software updates or specific component issues like battery drain, but not a wholesale replacement of the fuse box.

Programming and Installation

Does the fuse box need to be programmed?

No. The engine bay fuse box (TIPM) on the 2015-2023 Jeep Renegade does not require any programming or flashing after installation. It is a direct-swap component. The vehicle's identity and security information are stored in other modules, like the Body Control Module (BCM) and Powertrain Control Module (PCM).

Installation Tips

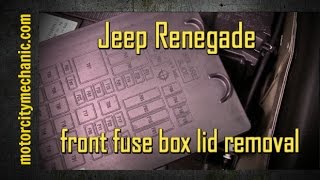

The main fuse box is located in the engine bay, next to the battery. Accessing the fuses 🎬 Watch this quick guide to find all fuse box locations and relays is unusual; the cover slides off the side of the unit, not the top. 🎬 See how to properly remove the front fuse box lid To remove it, you'll typically need to use a flathead screwdriver to turn a spring-loaded lock at the bottom, then slide the cover up and off. For better access, the windshield washer fluid filler neck can often be unclipped and moved aside.
