2020-2025 Hyundai Palisade Fuse Box: Failures, Recalls, and Replacement Guide

Symptoms of a Failing Fuse Box

A problem with a fuse box can cause a wide range of confusing electrical issues. Because it controls so many different systems, symptoms can be intermittent and difficult to diagnose. Look for these common warning signs:

• Multiple Unrelated Electrical Failures: One of the most common signs is when several unrelated systems stop working at once. For example, your power windows, radio, and interior lights might all fail simultaneously. This often points to a fault within the fuse box itself rather than individual component failures.
• No Power to Specific Components: If a single component like a headlight or fuel pump isn't receiving power and you've confirmed its fuse is good, the fault may lie in the internal circuitry of the fuse box.
• Visible Damage or Corrosion: A visual inspection can reveal a lot. Look for melted plastic around fuse or relay terminals, which indicates a severe overload or poor connection. Green or white crusty deposits are a clear sign of water intrusion and corrosion, which can create short circuits.
• Engine Starting Issues: The engine bay fuse box powers critical components like the fuel pump and Engine Control Module (ECM). A fault can prevent the engine from cranking or starting. 🎬 Watch: Troubleshoot a Palisade no-start and no-crank issue Some owners have reported intermittent no-start conditions that were traced back to a faulty battery or electrical system issues.
• Burning Plastic Smell: A strong smell of burning plastic from under the hood or dash is a critical warning sign. Pull over immediately and disconnect the battery if it's safe to do so. This often indicates a short circuit is generating intense heat within the fuse box.
• Diagnostic Trouble Codes (DTCs): A failing Smart Junction Box can trigger a variety of DTCs, often starting with 'B' (Body) or 'U' (Network Communication). Codes related to power relay failures (like P0689) or communication errors can point to a faulty junction box.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While the fuse boxes themselves have not been the subject of a direct recall, the Palisade's electrical system has been impacted by significant safety campaigns.

NHTSA Recall 22V-633: Tow Hitch Wiring Harness Fire Risk

Other Electrical System Recalls & TSBs

• Electric Oil Pump Fire Risk: A recall was issued for some 2025 Palisade models due to an insufficient seal on the electric oil pump controller, which could allow moisture in and cause a short circuit, increasing the risk of fire.

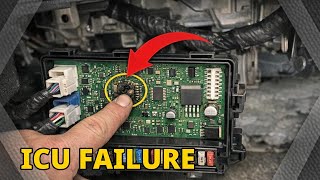

• Electrical System TSBs: Hyundai has issued several TSBs for electrical issues, though not all are directly related to the fuse box. These include updates for the Integrated Central Control Unit (ICU) software to resolve haptic motor warnings (TSB 22-BE-002H) and troubleshooting for abnormal camera displays (TSB 21-BE-005H).

Buying a Used Fuse Box: What to Look For

Purchasing a used OEM fuse box is a cost-effective way to solve complex electrical problems. However, it's crucial to get the exact right part to avoid further issues. Follow these guidelines to ensure compatibility and quality.

1. Match the Part Number EXACTLY

This is the most important rule. The Palisade uses many different fuse boxes depending on the model year, trim level, and installed options. Do not rely on visual comparison alone. The original part number is printed on a sticker on the side of the fuse box housing. You must match this number precisely with the replacement part.

Common Part Numbers Include:

• 91940-S8010 (Engine Bay)
• 91950-S8040 (Cabin/Instrument Panel)
• 91950-S8041 (Cabin/Instrument Panel)
• 91951-S8661 (Cabin/Instrument Panel)
• 91952-S8240 (Engine Bay)
• 91956-S8010 (Engine Bay)
• 91956-S8020 (Engine Bay)
• 91959-S8000 (Engine Bay)

2. Inspect for Physical Damage

Before purchasing, carefully inspect photos of the used fuse box for:

• Heat Damage: Look for any melted plastic, discoloration, or warped areas on the housing or around the terminals where fuses and relays plug in. This indicates a past short circuit or overload.
• Water Intrusion: Check all connectors and terminals for green or white corrosion. Water damage is a major red flag and can cause unpredictable, long-term problems.
• Cracks or Broken Tabs: Ensure the housing is intact and all mounting tabs are present. A cracked case can allow moisture and dirt to enter, leading to future failures.

3. Fuses and Relays Are Not Included

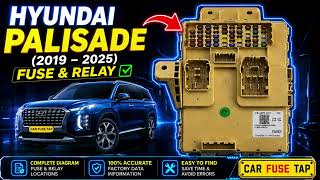

Remember that you are typically buying the fuse box housing and its internal circuitry only. You will need to carefully transfer all fuses and relays from your old unit to the new one. Take a clear photo of your original fuse box layout before you begin removing them to ensure everything goes back in the correct spot 🎬 Watch: Locate your Palisade's cabin and engine fuse boxes with the correct amperage rating.

Programming and Installation

For the engine compartment fuse box, replacement is generally straightforward and does not typically require programming. It is a direct swap.

However, the interior cabin fuse box (Smart Junction Box) is a different story. This module often contains logic related to the vehicle's options, security system, and body controls. While some sources suggest a simple reset procedure by disconnecting the battery might work for some issues, a replacement Smart Junction Box may require dealer-level programming or configuration to recognize the vehicle's specific features. It is best to assume that a replacement cabin junction box will need to be configured with a compatible scan tool to ensure all systems function correctly.

Cost Comparison
