Ford Escape, Focus, MKC & More Fuse Box BCM: Solving Issues & Replacement Guide (2008-2019)

Understanding This Part: It's a Computer, Not Just a Fuse Box

Before attempting to diagnose or replace what appears to be the interior fuse box, it's critical to understand that this is a Body Control Module (BCM). In many Ford, Lincoln, and Mazda vehicles, this component is also called the Smart Junction Box (SJB). It is a computer that controls most of your vehicle's electrical accessories. Failure to recognize this can lead to a failed repair and a vehicle that won't start. Because these vehicles span different platforms and generations, they use different BCMs. We've broken them down into two main groups.

Group 1: 2008-2012 Ford Escape, 2008-2011 Mazda Tribute, 2008-2012 Mercury Mariner

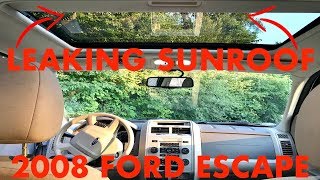

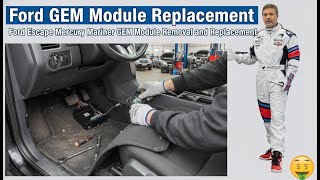

For this group, the BCM is located in the passenger-side kick panel area, near the floor. Before replacing the module, it is essential to find and fix the source of the water leak. 🎬 Watch how to clear a blocked sunroof drain tube Otherwise, the new module will be damaged as well.

Group 2: 2013-2019 Ford Escape, 2015-2019 Lincoln MKC, 2012-2018 Ford Focus, 2014-2018 Ford C-Max, 2014-2015 Ford Transit Connect

These newer vehicles, built on Ford's global platform, feature a more complex BCM. While still susceptible to water damage if leaks occur, failures are also caused by internal electronic issues. The BCM is typically located behind the glove box or in the passenger footwell area. Problems with parasitic battery drain are particularly common in this group, where a faulty BCM fails to let other modules go to "sleep," draining the battery overnight.

Symptoms of a Failing BCM / Smart Junction Box

Because the BCM controls so many different functions, a failure can present in many ways. Often, you will experience multiple symptoms at once.

• Erratic Lights: Headlights, interior lights, or dash lights flickering, staying on, or not working at all.
• Power Accessories Malfunction: Power windows, door locks, or windshield wipers working intermittently or not at all.
• No-Start Condition: The engine refuses to crank even with a good battery. This is often because the BCM is a key part of the PATS (Passive Anti-Theft System) and has failed to recognize the key.
• Parasitic Battery Drain: The battery dies overnight or after a few days of sitting. The faulty BCM prevents the vehicle's electronics from shutting down properly.
• Dashboard Warning Lights: Multiple, unrelated warning lights may illuminate on the instrument cluster.
• Key Fob Inoperable: The remote lock/unlock functions stop working.
• Communication Codes: An OBD-II scan may show "U" codes, such as U0140 (Lost Communication With Body Control Module), indicating a network problem.

Buying a Used Fuse Box / BCM: The Most Important Section

Purchasing a used BCM is a great way to save money, but it requires careful attention to detail. A mistake here can result in a part that will never work with your vehicle.

1. Match the Part Number EXACTLY: This is the most critical rule. The part number is printed on a sticker on the module's housing. Even a one-digit or letter difference can mean the part is for a different set of vehicle options (e.g., with or without a sunroof, different lighting packages) and will not work correctly. Do not rely on visual appearance alone.
2. Inspect for Corrosion: Carefully examine the electrical pins in all connectors. Look for any signs of green or white crusty buildup, which indicates water damage. If you see any corrosion, do not buy the part. Also, check the casing for any signs of water stains.
3. Source from a Reputable Supplier: Buy from a seller that specializes in recycled auto parts and offers a warranty. This gives you recourse if the part is dead on arrival.
4. Why Used OEM is Better: Aftermarket BCMs are generally not available. A used OEM module is often a better choice than a new one for independent shops or DIYers. A new module is a "blank slate" that requires extensive programming from scratch. A used module already has firmware, and the programming process is often simpler.

Programming and Installation: This is NOT Plug-and-Play

Programming involves several steps to configure the module to your car's specific Vehicle Identification Number (VIN) and options. Crucially, it also involves a security procedure called a PATS Parameter Reset. This syncs the new BCM with the Powertrain Control Module (PCM) and your existing keys.

• Dealer: A Ford or Lincoln dealership can always perform the programming using their proprietary IDS or FDRS software. This is the most reliable, but also the most expensive, option.
• Qualified Independent Shop: Many independent auto repair shops that specialize in vehicle electronics will have the necessary J2534 pass-thru tools and a software subscription to program Ford modules.
• DIY with FORScan: For advanced DIY mechanics, it is possible to program a BCM using software called FORScan and a compatible OBD-II adapter. This involves saving the "As-Built" data from your original module (if possible), writing it to the new module, and then performing the PATS parameter reset. 🎬 Watch this step-by-step FORScan BCM programming video This process is complex, requires having two programmed keys, and involves a mandatory 10-minute security wait. Mistakes in this process can lock the module, making the vehicle inoperable.
• Cloning Services: Some companies offer a service where you mail in your original BCM and the replacement unit. They will copy the data from the old module to the new one, making it plug-and-play when you receive it back. This only works if your original module is still able to communicate.
