2024 Lexus GX550 Engine Fuse Box: Function, Location, and Replacement Guide
An in-depth look at the engine bay fuse and relay box for the 2024 Lexus GX550, covering its function, potential issues, and what you need to know before replacement.
- The 2024 GX550 is too new for common fuse box failures; issues are likely isolated incidents.
- Part numbers must be matched exactly when replacing the fuse box due to variations in vehicle options.
- A new OEM fuse box costs between $140 and $225, but used parts are not yet common.
- Replacement may require a visit to a dealer or specialist for electronic initialization to ensure all systems function correctly.
Symptoms of a Failing Engine Fuse Box
Because the 2024 GX550 is a new model, widespread fuse box failures are not a known issue. However, if a problem does occur, it will likely manifest as general electrical issues rather than a specific, predictable symptom. Failures could result from a manufacturing defect, water intrusion, or physical damage.
- Multiple Unrelated Electrical Failures: One of the most common signs of a failing fuse box is when several different electrical components stop working at once. For example, the headlights, windshield wipers, and fuel pump might all fail simultaneously.
- Fuses Repeatedly Blowing: While a single fuse blowing is normal, a fuse that blows repeatedly immediately after being replaced points to a short circuit, potentially within the fuse box itself.
- Visible Damage or Corrosion: A visual inspection may reveal melted plastic around fuse or relay terminals, indicating excessive heat from a poor connection. Green or white crusty deposits are a clear sign of water intrusion and corrosion, which can create short circuits and open circuits.
- No-Start or Intermittent Start: If the fuse box has an internal fault affecting the starter relay, fuel pump circuit, or engine control unit power supply, the vehicle may fail to start or start unreliably.
- Associated OBD-II Codes: A failing fuse box may not set a specific trouble code pointing to itself. Instead, you may see a variety of communication codes (U-codes) as different modules lose power or communication. You might also see codes related to specific circuits that are no longer receiving power.
Known Issues, TSBs, and Recalls for the 2024 Lexus GX550
As of mid-2024, there are no recalls or widespread Technical Service Bulletins (TSBs) specifically related to the engine fuse box for the 2024 Lexus GX550. Most early TSBs for this new model address other minor issues like brake squeal or multimedia screen behavior.
There is a significant recall concerning machining debris in the 3.4L twin-turbo V6 engine, which can lead to engine failure. While this is a serious issue, it is not related to the vehicle's electrical system or the fuse box.
Pro Tip: During vehicle pre-delivery service (PDS), technicians install a 30A "D/C CUT" fuse to activate many of the vehicle's systems that are dormant during shipping. If multiple interior systems are dead, checking that this fuse is properly installed in the engine bay fuse box is a good first step.
Buying a Used 2024 GX550 Engine Fuse Box
Given the newness of the GX550, finding a used engine fuse box will be challenging. Most will come from vehicles damaged in collisions. If you do find one, careful inspection and verification are critical.
- Match Part Numbers Exactly: This is the most important rule. Lexus may use several different fuse boxes depending on the vehicle's trim level (Premium, Luxury, Overtrail) and optional equipment. Part numbers like 82741-60240 and 82741-60260 have been associated with the 2024 GX550, but you must match the number from your original part exactly. Using a box from a vehicle with different options can cause compatibility issues.
- Inspect for Physical Damage: Carefully check the entire housing for cracks or breaks, especially around mounting tabs. Ensure all connector sockets are clean and the pins are straight and free of corrosion.
- Look for Signs of Water Intrusion: Any chalky white or green residue on the connectors or inside the box is a major red flag. Do not buy a fuse box that shows any sign of having been wet.
- Check for Heat Damage: Look for any melted plastic around the fuse or relay terminals. This indicates a previous short or overloaded circuit that could have damaged the internal circuit board.
Programming and Installation
Replacing a modern fuse box is often not a simple plug-and-play operation. While searches did not confirm a specific programming requirement for the GX550's fuse box, it is highly probable that some form of dealer-level initialization or configuration is necessary after installation. This is because the fuse box is an intelligent module that communicates with other vehicle systems. A Pre-Delivery Service bulletin notes that the seating position control ECU requires initialization after a specific fuse is installed, indicating the complexity and interconnectedness of the electrical system. Failure to perform these steps could result in certain features not working correctly. For this reason, while the physical swap may be possible for a DIYer, a visit to a dealer or a specialized independent shop with access to Lexus Techstream software may be required to complete the job.
Cost Breakdown
Pricing for a brand-new 2024 Lexus GX550 engine fuse box can vary, but you can expect to pay between $140 and $225 for the part itself from a Lexus dealership. Used and aftermarket options are not yet readily available on the market due to the vehicle's recent release.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $140 - $225 |
| New Aftermarket | Not Yet Available |
| Used OEM | Not Yet Widely Available |
| Shop Labor | $150 - $300 |
Frequently Asked Questions (FAQ)
Does the 2024 GX550 engine fuse box need to be programmed?
While not explicitly confirmed in search results, it is highly likely. Modern fuse boxes are integrated modules. Replacing one often requires initialization or configuration with dealer-level software to ensure all vehicle systems communicate correctly. A TSB for the GX550 mentions that other ECUs need initialization after fuse installation, suggesting the system is highly integrated.
Where is the engine fuse box located on the 2024 Lexus GX550?

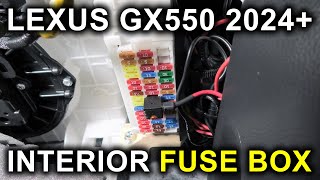

The 2024 GX550 has fuse boxes under the hood, typically on the passenger side near the battery, and also an interior fuse box located under the glove box on the passenger side.
🎬 Watch this quick guide to locate the interior fuse boxCan I just replace a relay, or do I need the whole box?
It depends. The fuse box contains both plug-in relays, which can be replaced individually, and relays that are permanently soldered to the internal circuit board. If a soldered relay fails, the entire fuse box assembly must be replaced.
What causes an engine fuse box to fail?
The most common causes of failure for any fuse box are water intrusion leading to corrosion, and heat from a short circuit or overloaded wire melting the plastic and damaging internal connections. On a new vehicle like the GX550, a manufacturing defect would also be a possibility, though this is uncommon.
Helpful Videos
Technical Specifications
OEM Part Numbers: 82741-60240 82741-60260
Houses mini low-profile fuses.
