2002-2005 Ford Excursion Engine Fuse Box & Harness: Solving Electrical Gremlins and No-Start Issues

Key Symptoms of a Failing Engine Fuse Box & Harness

A problem with the engine fuse box and harness can cause a wide range of confusing electrical issues. Because this single assembly connects to nearly every system in the engine bay, symptoms can be intermittent and difficult to diagnose. Failures often stem from years of heat, vibration, and especially water intrusion.

1. Engine Cranks But Will Not Start

This is one of the most common symptoms, often caused by a failed internal fuel pump relay. This relay is soldered directly to the circuit board inside the fuse box and is not designed to be replaced separately. When it fails, it can no longer send power to the fuel pump, leading to a lack of fuel pressure. You may hear the engine turn over strongly, but it will never fire up. This can also be caused by a bad Camshaft Position Sensor or wiring, a known issue on 7.3L and 6.0L diesel models.

2. Multiple, Unrelated Electrical Problems

If you experience several random electrical issues at once, it's a strong sign of a fuse box problem. This can include headlights not working, the horn staying on or not working at all, the radio staying on after the key is removed, or power windows acting erratically. These problems are often caused by corrosion inside the fuse box, where water has created short circuits between different electrical paths.

3. Specific Components Not Working & Blown Fuses

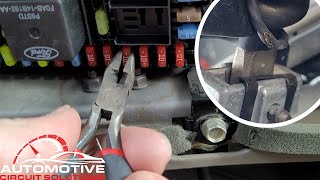

A single, non-functional component, like the air conditioning or power mirrors, can be traced back to a specific circuit within the harness or fuse box. Wires can chafe against engine components, causing a short to ground that will repeatedly blow a fuse as soon as it's replaced. 🎬 See how to diagnose and fix a blown Ford Super Duty fuse. A visual inspection of the harness for worn insulation or melted connectors is a key diagnostic step.

4. Engine Stalling While Driving

A sudden engine stall can be caused by a short in the wiring harness or an intermittent connection inside the fuse box. For 2004-2005 Excursions with the 6.0L diesel engine, a specific recall (NHTSA ID: 05V270000, Ford Recall No. 05S34) was issued for the Fuel Injection Control Module (FICM) wire harness chafing on engine bolts, which could lead to stalling.

Buying a Used Fuse Box & Harness Assembly

Due to the complexity and high cost of a new harness (which is often discontinued), a quality used OEM assembly is the most practical solution for most owners. However, careful selection is critical to avoid buying another bad part.

The Golden Rule: Match The ID Tag!

This is the most important step. Every harness has a specific engineering ID tag or sticker on it. This number, often beginning with a prefix like `2C7T-12A581-xx` or `3C3T-14A067-xx`, is the only way to guarantee 100% compatibility. Do not buy a harness based on vehicle year or engine size alone. A harness from a truck with different emissions equipment or accessories (like A/C) may not work. Always get a clear photo of the ID tag from the seller and match it to your original harness.

Engine Compatibility is Crucial

The wiring harnesses are completely different for each engine type. They are not interchangeable under any circumstances.

• 5.4L V8 / 6.8L V10 Gasoline: These two gas engines share a harness design.
• 7.3L Power Stroke Diesel: Used in 2002 and early 2003 models.
• 6.0L Power Stroke Diesel: Used in late 2003, 2004, and 2005 models.

What to Inspect on a Used Harness

• Check for Corrosion: Look for any white or green powder on the fuse box terminals, inside the fuse slots, and within the electrical connectors. This indicates water damage, and the part should be rejected.
• Inspect for Cut or Spliced Wires: A harness with cut wires or shoddy-looking repairs is a major red flag. Repairs should be professionally done with heat-shrink tubing, not just electrical tape.
• Look for Physical Damage: Check for melted plastic, broken connector clips, or areas where the protective loom is worn away, exposing the wires.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

• Recall 05S34 (NHTSA ID: 05V270000): Affects 2004-2005 Excursions with the 6.0L diesel engine. The Fuel Injector Control Module (FICM) harness could chafe on engine bolts, causing a short and leading to an engine stall. The fix involved inspecting, repairing, or replacing the harness and installing a protective kit.
• Recall 09S09 (NHTSA ID: 09V399000): Affects 2002-2003 models. The speed control deactivation switch could leak brake fluid, leading to corrosion and a potential fire, even with the vehicle off. The fix was to install a fused wiring harness for the switch.
• Internal Fuel Pump Relay Failure: This is a widespread issue across many Ford trucks of this era, including the Excursion. The relay inside the fuse box fails, causing a no-start condition. Many companies offer a mail-in repair service for this specific problem, which can be an alternative to replacing the entire harness if this is the only issue.

Programming & Installation

Anti-Theft System (PATS)

The Ford Passive Anti-Theft System (PATS) is not integrated into the engine fuse box or its harness. The PATS control functions are typically located in the instrument cluster or the Powertrain Control Module (PCM). Swapping the engine harness will not affect the anti-theft system or require you to reprogram your keys.

Replacement Difficulty

Replacing the entire engine wiring harness is a labor-intensive job. It connects to dozens of sensors, actuators, and modules throughout the engine bay. While it is feasible for an experienced DIY mechanic, it requires patience and careful labeling of each connector. Expect the job to take several hours.

Cost of Replacement

The cost can vary significantly based on the part source and labor.
