2015-2020 Dodge Durango Fuse Box: Solving Stalling, Electrical Gremlins, and Start-Stop Issues

Programming and Calibration: The #1 Question Answered

Whether a replacement fuse box, or Power Distribution Center (PDC), needs programming is the most critical question for the 2015-2020 Durango. The answer is not a simple yes or no; it depends on the replacement part and the tools available.

• New OEM Unit: A brand new PDC from a Dodge dealer will require programming and configuration by the dealership's diagnostic tools to integrate it with your vehicle's specific options and VIN.
• Used OEM Unit: This is the most common scenario for recycled parts buyers. While the vehicle may start and run after swapping in a used PDC from an identical vehicle, full functionality is not guaranteed. A procedure called Proxy Alignment is often required. This process uses an advanced scan tool (like AlfaOBD or a high-end shop scanner) to make all the different computers in the vehicle recognize and communicate correctly with the replacement PDC. 🎬 Watch: Step-by-step guide on performing a Proxi Alignment Without this step, you may experience issues with features like remote start, power windows, or see persistent warning lights.
• Remanufactured Unit: Some companies sell remanufactured PDCs that can be pre-programmed to your vehicle's VIN before shipping. These are often advertised as a 'plug-and-play' solution, though it's wise to confirm if any final setup, like a proxy alignment, is needed.

Critical Compatibility: Start-Stop vs. Non-Start-Stop

The single most important factor when purchasing a replacement fuse box for your 2015-2020 Durango is whether your vehicle is equipped with the Automatic Engine Start-Stop feature. This system automatically shuts down the engine when the vehicle is stopped to save fuel.

• Vehicles WITH Start-Stop have a different PDC than vehicles WITHOUT it.
• These two types of fuse boxes are NOT interchangeable. Installing the wrong type will result in electrical failures and warning lights.
• How to check: The easiest way to know if you have this feature is to look for a button on your center console below the climate controls that shows an 'A' with a circular arrow around it. If you have this button, you have the Start-Stop system.

Symptoms of a Failing 2015-2020 Durango Fuse Box

A failing PDC can be difficult to diagnose because its symptoms can be intermittent and appear unrelated. Here are the most common signs:

• Engine Stalls While Driving: The most dangerous symptom is the engine shutting off unexpectedly, often causing a loss of power steering and creating a significant safety risk.
• No-Crank, No-Start: You turn the key or press the start button, and nothing happens, or the engine cranks but refuses to start. This can be due to a failure of the non-serviceable internal fuel pump or starter relays.
🎬 See how to test and bypass a faulty fuel relay
• Multiple, Random Warning Lights: The dashboard may light up with numerous unrelated fault lights for systems like ABS, traction control, and airbags.
• Specific Systems Not Working: One or more systems may fail completely, such as headlights, power windows, radio, or windshield wipers.
• Burning Plastic Smell or Melted Fuses: A strong burning odor from the engine bay or visible melting on the fuse box itself is a clear sign of a severe internal short or overload.
• Dead Auxiliary Battery: For models with the start-stop system, a failing PDC can create a parasitic drain that kills the smaller auxiliary battery.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there has not been a specific, large-scale recall for the PDC on the 2015-2020 Durango, these vehicles are part of a family with a history of electrical module issues.

• Water Intrusion: This is a primary cause of fuse box failure. Water can leak into the engine bay or interior from clogged sunroof drains, a bad windshield seal, or a faulty antenna gasket, causing corrosion and short circuits on the PDC's internal board.
• NHTSA Campaign 18V332000: A major recall was issued for 2018 Durangos (among many other FCA vehicles) for a software issue that could prevent the cruise control from being disengaged. The fix was a software update performed by the dealer, not a hardware replacement.
• TSB S2008000023: While not for this exact model year range, a TSB for a 'No Crank No Start' condition on later models points to ongoing electrical diagnosis challenges that can be related to the power distribution system.

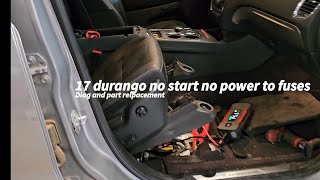

🎬 Watch: Professional diagnosis of a Durango no-start condition

Buying a Used Durango Fuse Box: A Buyer's Guide

A used OEM fuse box is an excellent, cost-effective solution if you follow these guidelines:

1. Verify Compatibility First: Before you buy, confirm if your Durango has the automatic start-stop feature. You must buy a fuse box from a donor vehicle with the exact same configuration.
2. Match Part Numbers: The surest way to guarantee compatibility is to match the Mopar part number on your original fuse box to the number on the used unit. Superseding part numbers are common, so check for compatibility lists.
3. Perform a Thorough Physical Inspection:
   • Check for Melting: Look closely at all fuse and relay sockets. Any signs of melted plastic, especially around high-current locations, is a major red flag.
   • Look for Corrosion: Inspect the terminals on the underside where the large harnesses connect. Any white or green crusty buildup indicates water damage, and you should reject the part.
   • Inspect the Housing: Ensure all plastic connector housings and locking tabs are intact and not brittle or broken.
4. Why Used OEM is a Smart Choice: A clean, inspected used OEM Mopar fuse box is often more reliable than a cheap new aftermarket alternative. The internal bus bars, circuit boards, and plastics are built to factory standards, ensuring proper fit and electrical conductivity that aftermarket parts may not match.

Replacement Cost Comparison

Frequently Asked Questions (FAQ)
