2004-2013 Malibu Fuse Box: Decoding Generations, Part Numbers & Failures

Critical Compatibility Warnings: Malibu Generations Explained

The 2004-2013 Chevrolet Malibu spans three distinct vehicle generations, and their underhood fuse boxes (UBECs) are NOT interchangeable. Ordering the wrong part is a common and costly mistake. Before purchasing, you must identify your exact vehicle generation.

2004-2008: 6th Generation (and the 'Classic' Trap)

This generation has the most confusing overlap. Pay close attention to your model year and VIN.

• 2004-2005 Malibu: Two versions exist. The 'New Style' body is identified by the 4th digit of the VIN being a 'Z'. The 'Old Style' or 'Malibu Classic' has a different VIN identifier. These parts are not interchangeable. Always verify your VIN before ordering.
• 2006-2007 Malibu: These years are more straightforward, but you must still match part numbers to your vehicle's engine and options.
• 2008 Malibu Classic: For the 2008 model year, GM sold the previous generation body style as the 'Malibu Classic'. This vehicle uses the 6th generation fuse box. 🎬 Watch: 2004-2007 Malibu fuel pump relay and fuse locations It is completely different from the new body style 2008 Malibu.

2008-2012: 7th Generation

This is the all-new body style that debuted in 2008. These models are known to have specific issues, such as heat-related failures and water intrusion. While there is less confusion than the 6th generation, multiple fuse box versions exist based on engine size (e.g., 2.4L vs. 3.6L) and trim level options. Matching the OEM part number is essential.

2013: 8th Generation

The 2013 model year marked the beginning of the 8th generation Malibu. This fuse box is a completely different design and is not backward-compatible with any earlier models. For 2013 models, it is crucial to verify the part number, as these units are more integrated with the vehicle's electronics.

Symptoms of a Failing Malibu Fuse Box

A faulty fuse box can create some of the most frustrating and difficult-to-diagnose electrical problems. Because it powers so many unrelated systems, symptoms can appear random.

• Multiple, Unrelated Electrical Failures: This is the most common sign. For example, the radio, power windows, and interior lights may all stop working at the same time.
• Engine Will Not Crank or Start: The fuse box contains relays and fuses for the starter and fuel pump. A failure can prevent the engine from cranking or starting. Sometimes this failure only occurs when the engine bay is hot.
• Engine Stalls While Driving: An intermittent connection within the fuse box can cut power to the fuel pump or engine 🎬 See: 2008-2012 Malibu fuel pump relay and fuse locations computer, causing the engine to shut off unexpectedly.
• Dim or Flickering Lights: Unstable power from a failing fuse box can cause headlights and dashboard lights to flicker or appear dim.
• Visible Corrosion or Melting: A physical inspection may reveal green or white crusty corrosion from water damage, or melted plastic around high-amperage fuses or relays, which are clear signs of failure.
• Communication (U-prefix) OBD-II Codes: While the fuse box itself may not set a specific code, its failure can cause a loss of communication between various vehicle modules, resulting in a flood of U-codes.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Heat-Related No-Start (2008-2012 Models)

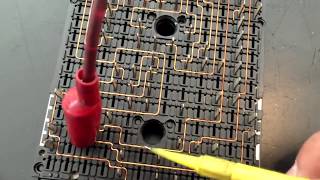

A well-documented issue on 7th generation Malibus is a no-crank condition that only happens when the engine is hot. Owners report the car starts fine when cold, but after driving for 20-30 minutes, it will not restart until it has cooled down for several hours. This is often caused by a hairline crack in an internal circuit trace within the underhood fuse box. As the engine bay heats up, the metal expands, opening the crack and breaking the circuit for the starter relay. A common related trouble code is P0615 (Starter Relay Control Circuit).

Water Intrusion and Corrosion

On some models, particularly the 7th generation, water can leak from clogged sunroof drains or degraded cowl seals and drip onto the fuse box. This leads to corrosion on the internal board and external connectors, causing intermittent electrical problems that often worsen after rain.

Recalls and TSBs

While there have been numerous electrical system recalls for the Malibu over this period, none specifically target the underhood fuse box itself for direct replacement. However, related recalls exist:

• NHTSA Recall 14V153 (Campaign 12292A): For some 2013 Malibu models, the knock sensor wiring harness connections could be reversed, leading to reduced engine performance. The fix involves reworking the harness, not replacing the fuse box.
• NHTSA Recall 04V285 (Campaign 04030): On certain 2004 models, an issue with erratic wheel speed sensor signals could cause unwanted ABS activation. The remedy was to reprogram the ABS controller, which communicates through the fuse box.
• There have also been investigations into faulty connectors causing issues with brake lights and cruise control across multiple model years.

Buying a Used Fuse Box: A Step-by-Step Guide

A used OEM fuse box is a cost-effective solution, but you must be diligent to get the right one. Aftermarket options are available but may not have the same durability or exact internal configuration as the original.

1. Confirm Your Malibu's Identity: Know your exact year, generation (e.g., 2008 Classic vs. 2008 New Style), and engine size.
2. Match the OEM Part Number EXACTLY: This is the most critical step. Locate the part number on your existing fuse box. It's usually on a white or silver sticker. Do not buy a part with a different number, even if it looks identical.
3. Inspect for Physical Damage: Before buying, carefully inspect the used unit. Look for any signs of green or white corrosion on the terminals, both on top and especially on the connector pins underneath. Check for melted plastic around the fuse and relay sockets, which indicates a past short circuit or overload.
4. Ask About the Donor Vehicle: If possible, find out the mileage of the vehicle the part came from. A lower-mileage part is always preferable. Avoid parts from flood-damaged vehicles at all costs.

Programming and Installation Notes

However, do not confuse the UBEC with the interior fuse box, which is often integrated with the Body Control Module (BCM). The BCM is the component that requires programming to the vehicle's VIN for security and options. If you are replacing the interior fuse panel, a dealer or qualified shop with GM programming tools is required.

For 2013 and newer models, the underhood fuse box is a more integrated module and may require programming upon installation. Failure to program it can result in a no-start condition.

Installation is straightforward for 2004-2012 models: disconnect the battery, remove the cover, unbolt the main power wire, release the clips holding the large connectors, and swap the unit. It's often a good idea to transfer your old fuses and relays to the new box, as the used unit may have them missing or in different configurations.
