2012-2015 Camaro Interior Fuse Box: Solving Electrical Gremlins Without Programming
This guide covers common failures, diagnosis, and replacement for the instrument panel fuse block, clarifying why it's a simple plug-and-play repair.
- The 2012-2015 Camaro interior fuse box requires NO programming or dealer visit for installation.
- Most failures are caused by water intrusion; always inspect a used unit for corrosion before buying.
- Symptoms of sudden, total power loss can be caused by the ignition switch recall (NHTSA 14V346000), not the fuse box.
- This guide is for the interior fuse box on the driver's side dash, not the fuse boxes in the engine bay or trunk.
Location and Identification
The interior fuse box on the 2012-2015 Camaro is located on the driver's side of the instrument panel. To access it, you must open the driver's door and remove a plastic trim panel on the side of the dashboard. The diagram for the fuses is typically found on the back of this cover panel. It's important to distinguish this fuse box from the Underhood Bussed Electrical Center (UBEC) in the engine bay and the fuse block in the trunk, as they control different vehicle functions.

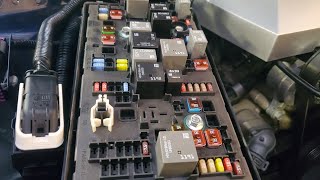

🎬 Watch: A quick guide to all three fuse box locations.Symptoms of a Failing Interior Fuse Box
When the interior fuse box begins to fail, it can create a variety of confusing electrical issues. Because it powers many unrelated components, symptoms often appear random.
- Multiple, Unrelated Electrical Failures: This is the most common sign. For example, the radio, power outlets, and instrument cluster may stop working simultaneously.
- Intermittent Problems: A loose internal connection or corrosion can cause systems to work one moment and fail the next. You might notice flickering dashboard lights or a radio that cuts in and out.
- Specific Systems Are Dead: While a single blown fuse is the most likely cause for one system failure (like the power windows), if replacing the fuse doesn't solve the problem, the fault may lie in the fuse box terminal itself.
- Visible Damage or Corrosion: A visual inspection may reveal melted plastic around fuse terminals or a white/green powdery substance from water damage. A burning plastic smell is a serious indicator of a short circuit within the box.
Pro Tip: The fuse box itself does not generate OBD-II trouble codes. However, its failure can cause other modules to report communication errors (U-codes) or body fault codes (B-codes) because they are losing power.
Known Issues, Recalls, and TSBs
Ignition Switch Recall (NHTSA 14V346000)
A major issue to be aware of is not with the fuse box itself, but with the ignition switch. On 2010-2014 Camaros, the driver's knee could bump the key, causing the ignition to switch out of the 'run' position. This would cause a sudden loss of engine power, power steering, and disable airbags. These symptoms can easily be misdiagnosed as a catastrophic fuse box or BCM failure. Before replacing the fuse box for sudden power loss issues, ensure this critical recall has been performed. 🎬 See how an ignition issue can mimic a fuse failure. A follow-up recall (NHTSA 19E064000) was issued for replacement keys that had the same defect.
TSB for Poor Terminal Tension
General Motors issued Technical Service Bulletin (TSB) PI0745, which notes that insufficient terminal tension in the instrument panel fuse block can cause intermittent electrical problems. This can lead to symptoms like flickering lights and erratic operation of various accessories, directly pointing to a potential manufacturing flaw in the fuse box itself.
Warning: Water intrusion is a common cause of fuse box failure. If you find corrosion, it is critical to identify and fix the source of the leak—often a clogged sunroof drain, a bad windshield seal, or a leaking cowl—before installing a replacement part.
Programming and Installation
Does this fuse box need to be programmed?
No. The 2012-2015 Camaro interior fuse box is a simple power distribution block and does not contain any software. It does not need to be programmed, flashed, or coded to the vehicle. It is a direct, plug-and-play replacement. The vehicle's VIN, options, and security information are stored in other modules like the Body Control Module (BCM) and Engine Control Module (ECM).
Buying a Used Fuse Box
A used OEM fuse box is an excellent, cost-effective alternative to an expensive new part. Since this is a passive component without complex electronics, a clean, undamaged used unit is functionally identical to a new one.
- Inspect for Corrosion: Carefully check every pin, terminal, and fuse socket for any sign of white, green, or bluish powder. This indicates water damage, and the part should be rejected.
- Check for Melted Plastic: Look at the plastic housing around each fuse and relay location. Any melting or charring is a sign of a severe overload or poor connection, and the box is not safe to use.
- Verify Part Numbers: While matching the part number is always best practice, the primary part numbers for this fuse box, 22760635 and 92229383, are generally interchangeable. Part number 92229383 has been discontinued. Part number 22760635 fits all 2012-2015 Camaro models including LS, LT, SS, and Z/28, but excludes the ZL1.
- Check for Physical Damage: Ensure the plastic housing is not cracked and that all mounting tabs are intact for a secure installation.
Cost Comparison
| Part Type | Estimated Price Range |
|---|---|
| New OEM | $400 - $750 |
| New Aftermarket | Not commonly available |
| Used OEM | $60 - $250 |
| Shop Labor | $120 - $180 |
Frequently Asked Questions (FAQ)
Do I need a dealer to install this fuse box?
No. Because no programming is required, a DIY-savvy owner or any independent mechanic can replace this part. The process involves disconnecting the battery, removing a trim panel, unbolting the old unit, swapping the electrical connectors, and bolting in the new one.
Where is the interior fuse box on a 2012-2015 Camaro?
It is located on the driver's side of the dashboard, accessible only when the driver's door is open. You must remove the side dash trim panel to see it.
Why are my radio and power windows not working?
This could be due to individual blown fuses, a failing Body Control Module (BCM), or a problem with the interior fuse box. First, check the specific fuses for those systems using the diagram on the fuse box cover. If the fuses are good, inspect the fuse box for signs of corrosion or damage.
What's the difference between the interior, underhood, and trunk fuse boxes?
The underhood fuse box (UBEC) primarily handles engine and high-power functions like cooling fans, headlights, and the starter. The interior fuse box manages cabin electronics like the radio, cluster, and HVAC controls. The trunk fuse box often handles components like the fuel pump, amplifier, and convertible top.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22760635 92229383
Location: Instrument Panel, Driver's Side. Fits Coupe and Convertible models with V6 or V8 engines (excluding ZL1).
