2010-2016 Cadillac SRX Underhood Fuse Box: A Guide to Variants and Replacement

Symptoms of a Failing Fuse Box

A problem with the underhood fuse box can manifest in many ways, from a simple non-starting issue to bizarre electrical behavior. Because it controls so many different systems, symptoms can often be confusing and misdiagnosed.

• Multiple Unrelated System Failures: One of the most common signs is when several different electrical components stop working at once. For example, the radio, power windows, and interior lights might all fail simultaneously. This points to a power distribution problem rather than an issue with each individual component.
• Engine Will Not Crank or Start: The fuse box contains relays and fuses essential for the starter, fuel pump, and ignition system. A poor connection or internal failure can prevent the engine from starting, sometimes intermittently. 🎬 Watch: Diagnose a Cadillac SRX no crank no start issue You might hear a click but the starter won't engage, or the engine may crank but never start due to a lack of fuel or spark.
• Visible Corrosion or Melting: A physical inspection can reveal a lot. Look for white or greenish crusty deposits on the terminals and connectors, which indicates water intrusion. Any signs of melted plastic around fuses or relays suggest a severe overload or a poor connection that has generated excessive heat.
• Dim or Flickering Lights: Unstable power delivery from a faulty fuse box can cause headlights, interior lights, or dashboard lights to flicker or appear unusually dim.
• Parasitic Battery Drain: A faulty relay or an internal short circuit within the fuse box can cause a continuous power draw even when the vehicle is turned off, leading to a dead battery overnight or after a few days of sitting.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no widespread recalls specifically for the fuse box itself on the 2010-2016 Cadillac SRX, several electrical issues and TSBs are relevant to diagnosing problems in this area.

• TSB PI0745B: General Motors issued this preliminary information bulletin regarding intermittent electrical issues for components routed through the instrument panel fuse block. Symptoms included flickering lights, erratic operation of exterior lights, and inability to shift from Park. The diagnostic procedure involves wiggling specific fuses with the vehicle running to identify poor terminal connections within the fuse block.
• Water Intrusion: Like many vehicles, the SRX can be susceptible to water leaks, particularly from clogged sunroof drains or damaged seals. This water can find its way into various electronic modules, including fuse boxes, causing corrosion and short circuits.
• Poor Connections: Some owners have reported that intermittent no-start conditions can be traced back to poor connections at the main fuse box connectors. Wiggling the large wiring harnesses entering the fuse box could temporarily resolve the issue, pointing to a problem with the terminals or the box itself.

Decoding SRX Fuse Box Variants: The Key to Compatibility

The most critical aspect of replacing this part is ensuring the replacement unit matches the specific options your vehicle was built with. The internal wiring and connections differ based on features. Using the wrong fuse box can result in certain features not working or, in a worst-case scenario, cause electrical damage.

Key Options Affecting Fitment:

• Fog Lamps: Vehicles equipped with factory fog lamps have different wiring and require a specific fuse box configuration.
• Pre-Crash System: Also known as the Forward Collision Alert system, this optional safety feature uses radar and requires its own dedicated circuits that run through the fuse box.

Because of these variations, you must match the part number from your original fuse box to the replacement unit. Do not rely on the year and model alone.

Buying a Used 2010-2016 SRX Fuse Box

A used OEM fuse box is often a reliable and cost-effective solution. Since these are primarily power distribution blocks without complex internal software, a good-condition used unit from a reputable supplier can be just as effective as a new one.

What to Inspect:

• Match the Part Number EXACTLY: Find the OEM part number on the sticker of your original fuse box and ensure the replacement has the identical number. Common part numbers include 15896995, 20934803, 22764324, 22880546, and 22880545.
• Check for Corrosion: Carefully inspect all the metal pins and terminals where the wiring harnesses connect. Look for any signs of green or white powder, which indicates water damage. Do not buy a fuse box with any visible corrosion.
• Look for Heat Damage: Examine the plastic housing, especially around the larger fuse and relay sockets. Any discoloration, warping, or melting is a major red flag indicating a past electrical overload.
• Ensure No Physical Damage: Check for cracks in the housing or broken connector clips. The unit needs to be sealed and secure to prevent future moisture intrusion.

Programming and Installation

The underhood fuse box on the 2010-2016 Cadillac SRX is a non-integrated power distribution module. This means it does not require any programming, flashing, or relearning procedures after installation. It is a direct plug-and-play replacement, provided you have sourced the correct part number for your vehicle's options.

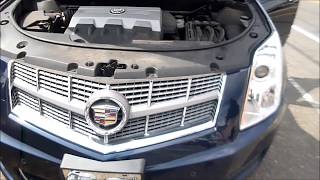

Installation is straightforward for a DIY mechanic with basic tools. The fuse box is located in the engine compartment. The process generally involves disconnecting the battery, releasing the locking tabs on the cover, unplugging the main wiring harness connectors, and unbolting the unit itself.
