2017-2023 BMW 5-Series (G30) Fuse Box & BDC Guide: Solving Electrical Faults

Symptoms of Failure by Location

Diagnosing an electrical issue in a G30-platform BMW often starts with identifying which electrical center is most likely at fault. Symptoms can range from a single non-working accessory to a car that won't start.

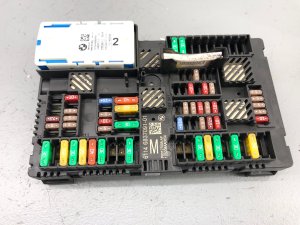

Front (Engine Bay) or Rear (Trunk) Power Distribution Box Failure

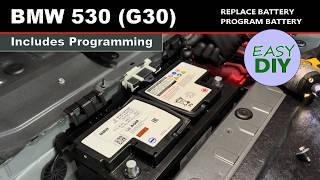

• Complete loss of power: A sudden and total electrical failure, sometimes while driving, often points to the rear power distribution box connected to the battery. This creates a critical safety issue as the engine will stall, and power steering will be lost.
• No-start condition: You may have power to the interior lights and radio, but the car goes dark and refuses to crank when you press the start button. This happens when a degraded connection in the rear box cannot handle the high current draw from the starter motor.
• Failure of a specific high-current system: Issues with components like the electric cooling fan, fuel pump, or other engine bay systems can sometimes be traced to a failed relay or internal fuse within the front power distribution box.

Body Domain Controller (BDC) Failure

As the central computer for body electronics, BDC failure often causes multiple, seemingly unrelated problems:

• Multiple warning lights: The instrument cluster may light up with various system faults simultaneously.
• Erratic lighting: Exterior or interior lights may stay on, flicker, or not work at all.
• Power window, lock, and wiper issues: Failure of one or more of these systems is a common sign.
• Key fob not detected: Since the BDC is linked to the car's security and access system, it can cause problems with key recognition.
• Water Damage: The BDC's location in the passenger footwell makes it vulnerable to water intrusion from clogged sunroof drains or leaking windshield seals, which is a leading cause of failure.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While these models have not had a specific recall for the fuse boxes themselves, there are notable electrical system issues to be aware of:

• Recall 26V-096 (A/C Wiring Harness): Affecting some 2024-2026 models, this recall addresses an issue where the A/C wiring harness can be damaged during a routine cabin air filter replacement. This can cause a short circuit and increase the risk of a fire. The repair involves inspection and securing the harness.
• Software-Related Issues: Many electrical gremlins, such as a malfunctioning reverse camera or iDrive screen glitches, are often caused by software bugs. Dealers frequently resolve these issues by performing a vehicle-wide software update, as outlined in various Technical Service Bulletins (TSBs).
• Hybrid-Specific Problems (530e): Owners of the 530e model have reported issues related to the high-voltage battery, charging systems, and malfunctions within the hybrid control module.

Programming and Calibration Requirements

This is the most critical information for anyone replacing one of these components. Failure to follow these rules will result in a non-functional vehicle.

Body Domain Controller (BDC)

The BDC is the vehicle's immobilizer. It is VIN-locked and contains your car's specific key data. A BDC MUST BE PROGRAMMED.

• New BDC: A new module from a dealer must be installed and programmed by a BMW-certified technician using factory software (ISTA).

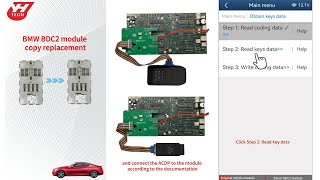

• Used BDC: A used BDC cannot be simply installed and programmed. It must be 'cloned'. This involves a specialist technician reading the data from your original, failed BDC and writing it onto the used replacement module. This makes the replacement 🎬 See this step-by-step BDC cloning walkthrough an exact copy, allowing it to work in your car without issue.

Front and Rear Power Distribution Boxes

These units (including part number 61149353742) are generally considered plug-and-play and do NOT require programming or coding. They are primarily composed of fuses and relays. However, it is absolutely essential to match the OEM part number exactly when ordering a replacement to ensure compatibility.

Buying a Used Fuse Box or BDC

Purchasing a used component can offer significant savings, but careful inspection and verification are key.

What to Inspect on a Used Part:

• Check for Corrosion: Look for any white, green, or bluish powder or residue on the terminals and connectors. This is a clear sign of water damage, and the part should be rejected.
• Look for Melted Plastic: Inspect the housing and around the fuse/relay sockets for any signs of melting or discoloration. This indicates a severe short circuit or overload, and the unit's integrity is compromised.
• Verify Part Numbers: Double and triple-check that the OEM part number on the used unit exactly matches the one you are replacing. For BMWs, even a single digit difference can mean it won't work with your vehicle's options.
• Plan for Programming (BDC only): Before you buy a used BDC, find an independent BMW specialist or automotive locksmith who can perform the cloning service. Do not buy the part until you have a confirmed plan for programming it.

Replacement Cost Breakdown

The cost to replace these components varies significantly based on which unit has failed and the labor involved.
