2014-2015 Impala Fuse & Relay Center: Solving Electrical Issues Without Dealer Programming

Understanding the 2014-2015 Impala Engine Fuse Block

The engine bay fuse and relay center is a critical component in your Impala's electrical system. When it functions correctly, you don't know it's there. But when it fails, it can cause some of the most confusing and difficult-to-diagnose problems, often mimicking the failure of other expensive modules. A failing fuse block can lead to intermittent electrical issues, a no-start condition, or multiple unrelated system failures at once.

Symptoms of a Failing Fuse and Relay Center

A bad fuse block can be tricky to diagnose because its symptoms often overlap with other electrical problems. Be on the lookout for these common signs:

• Multiple, Unrelated Electrical Failures: This is the most common symptom. You might experience the radio, interior lights, power windows, and turn signals failing simultaneously or intermittently.
• Engine Won't Start or Cranks Slowly: A faulty connection inside the fuse block can prevent power from reaching the starter motor or ignition system, even with a good battery. This may be especially noticeable when the engine is hot.
• Intermittent Stalling: Poor terminal connections or cracked internal wiring within the fuse block can cause the engine to shut off while driving, sometimes without warning.
• Flickering Dashboard Lights: Unstable power delivery can cause the instrument cluster and other interior lights to flicker or dim unexpectedly.
• Visible Damage or Burning Smell: A clear sign of failure is a distinct electrical burning smell near the fuse box. Upon inspection, you may find melted plastic around a fuse or relay socket, or signs of scorching on the terminals.

Does This Part Require Programming?

No. The 2014-2015 Chevrolet Impala engine fuse and relay center does not need to be programmed, flashed, or coded to the vehicle. It is a non-intelligent, passive component that simply distributes power. It does not store the vehicle's VIN or have any link to the anti-theft or immobilizer system. This makes it an excellent candidate for a simple, DIY-friendly swap with a used OEM part. While other electronic modules on the vehicle, like the Power Steering Control Module (PSCM) or the Engine Control Module (ECM), do require programming, the fuse block itself is plug-and-play.

Buying a Used Fuse and Relay Center: What to Look For

Because this part doesn't require programming, a high-quality used OEM unit is often the best value. Aftermarket versions are not common for this specific component, making a reliable used part a smart choice over a costly new one. Here’s what to inspect:

1. Confirm the Part Number: The most critical step is to match the part number. The primary OEM part number for this assembly is 20981711. While some sources may list it as fitting only the 3.6L engine, official GM catalogs confirm it fits all engine sizes for the 2014-2015 Impala. Always verify the number on your existing unit before ordering.
2. Inspect for Heat Damage: Carefully check all the sockets where fuses and relays plug in. Look for any signs of melted or warped plastic, which indicates a previous short circuit or overloaded component.
3. Check for Corrosion: Examine all metal terminals, both on the top where the fuses plug in and especially on the bottom where the main wiring harnesses connect. Any green or white powdery residue is a major red flag, indicating water intrusion or environmental damage.
4. Examine the Connectors: Ensure the large connector sockets on the underside of the block are clean and that all pins are straight and free of damage.
5. Source from a Reputable Seller: Purchase from a recycler that offers a warranty and guarantees the part is from a vehicle that was not in a flood or fire.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no major recalls for the fuse block itself, several significant electrical recalls and TSBs for the 2014-2015 Impala are important to be aware of, as their symptoms can be related.

• NHTSA Recall 14330: Loss of Power Steering Assist. This was caused by a poor electrical ground connection for the Power Steering Control Module (PSCM) located on the strut tower. Symptoms include a sudden loss of power steering. The fix involves cleaning the ground point and reprogramming the PSCM, not replacing the fuse block.
• NHTSA Recall 15100: Electronic Parking Brake Drag. An issue with the Electronic Parking Brake Control Module software could cause the rear brakes to drag, leading to excessive heat and a potential fire risk. The remedy was a software update to that specific module.
• General GM TSBs: Other GM vehicles have had issues with poor terminal tension inside the fuse block causing stalling and setting codes like P1682 or P0689. This highlights the importance of internal connections within the block as a potential failure point.

Replacement Overview

Replacing the engine fuse and relay center is a straightforward job that a DIY mechanic can typically complete in about an hour.

1. Locate the Fuse Block: It is in the engine bay on the driver's side, next to the battery.
2. Remove the Cover: Release the tabs holding the top cover on.
3. Disconnect Harnesses: Carefully unplug the large electrical connectors from the bottom and sides of the fuse block. These usually have locking tabs that need to be released.
4. Unbolt the Unit: Remove the bolts securing the fuse block assembly to the vehicle's chassis.
5. Transfer Fuses and Relays: This is the most critical step. One by one, move every fuse and every relay from your old fuse block to the exact same position in the replacement unit. Using a fuse puller or small pliers can help. This ensures all circuits are correct for your vehicle's specific options.
6. Install the New Block: Installation is the reverse of removal. Bolt the new block in place, reconnect the wiring harnesses, re-attach the battery terminal, and test all functions.

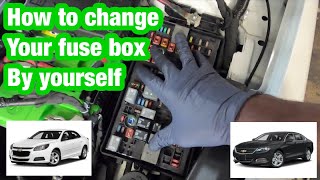

🎬 Watch this step-by-step walkthrough on replacing the fuse box

Cost Comparison

Prices for the 2014-2015 Impala Fuse and Relay Center can vary significantly depending on the source.
