VW EPC Light & Limp Mode: 2014-2017 Jetta, Passat, Beetle Throttle Body Guide

Symptoms of a Failing Throttle Body

A problem with the throttle body on the 2014-2017 Volkswagen Jetta, Passat, Beetle, and 2015-2017 Jetta GLI will be immediately obvious. The car's computer, sensing a problem with the air-fuel mixture or its ability to control engine power, will trigger several warnings and performance issues.

• EPC Light: The most common symptom is the illumination of the Electronic Power Control (EPC) light on your dashboard. This light specifically indicates a problem within the throttle system, which includes the throttle body, accelerator pedal, and associated sensors.
• Check Engine Light: The EPC light will almost always be accompanied by the standard Check Engine Light. The ECU will store specific diagnostic trouble codes related to the failure.
• Reduced Power / Limp Mode: To prevent potential engine damage, the vehicle will enter a reduced-power state known as "limp mode". Acceleration will be severely limited, and the car may struggle to exceed 40 mph or 4,000 RPM. This is a safety feature but can be dangerous in traffic.
• Rough or Unstable Idle: The engine may shake, idle at an unusually high or low RPM, or stall completely when you come to a stop. This is often caused by carbon buildup preventing the throttle plate from closing properly or an electronic fault.
• Hesitant or No Acceleration: When you press the gas pedal, the car may feel sluggish, jerk, or not respond at all. This happens because the throttle plate isn't opening correctly to allow more air into the engine.

Common Diagnostic Trouble Codes (DTCs)

Using an OBD-II scanner is the first step in any diagnosis. Codes related to throttle body failure include:

• P0121, P0122, P0123: Throttle/Pedal Position Sensor 'A' Circuit Range/Performance, Low Input, or High Input
• P0221, P0222: Throttle/Pedal Position Sensor 'B' Circuit Range/Performance or Low Input
• P0638, P2101: Throttle Actuator Control Range/Performance or Circuit Range/Performance
• P1545: Throttle Position Control Malfunction

Known Issues, TSBs, and Recalls

While there are no official safety recalls for throttle body failure on these specific models, Volkswagen has issued a Technical Service Bulletin (TSB) that addresses identical symptoms.

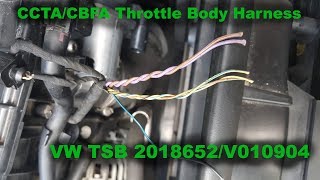

TSB for Faulty Wiring Connector

Volkswagen TSB 01-17-05 (also numbered 2018652) points to a common issue where the electrical connector to the throttle body develops high contact resistance. This can cause an intermittent and faulty signal, leading the ECU to believe the throttle body has failed. Symptoms are identical to a complete throttle body failure, including EPC light, limp mode, and various throttle position sensor codes. Before replacing the entire throttle body, it is critical to inspect this connector and consider the TSB, which involves splicing in an updated wiring harness repair kit.

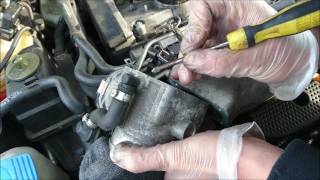

Carbon Buildup

The 1.8T and 2.0T TSI engines are direct-injection engines, which can be prone to carbon buildup on the intake valves and throttle body. A significant layer of carbon can restrict the movement of the throttle plate, causing it to stick. This can lead to a rough idle, hesitation, and stalling. In some cases, a thorough cleaning can restore proper function without needing to replace the part.

Legal & Emissions Requirements

While the throttle body itself is not an emissions-control device like a catalytic converter, its proper function is essential for passing a state emissions inspection. Any fault that triggers the Check Engine Light is an automatic failure in nearly every state that requires OBD-II emissions testing. You will not be able to register your vehicle until the issue causing the light is repaired and the code is cleared.

There are no specific CARB (California Air Resources Board) or Federal emissions variants for this part. The key legal requirement is simply that the part must be functioning correctly to ensure the Check Engine Light remains off.

Buying a Used Fuel Injection Throttle Body

Given the high cost of a new OEM throttle body, a used OEM unit is an excellent value. Because these are electronic parts, cheap aftermarket versions can have compatibility and quality issues. A recycled original equipment part is often a more reliable choice.

What to Inspect:

• Electrical Connector: Carefully inspect the plastic connector housing and the pins inside. Look for any signs of corrosion, bent pins, or cracks in the housing. This is a known weak point.
• Throttle Plate & Bore: Look inside the throttle body bore. A thin, dry layer of black soot is normal. However, avoid units with thick, gummy, or oily carbon buildup that could cause the plate to stick.
• Physical Damage: Check the housing for any cracks or signs of impact. Ensure all mounting holes are intact.
• Part Number Verification: Match the OEM part number exactly or confirm it is a valid supersession. The primary part numbers for this application are 06K133062AA, 06K133062C, 06K133062D, 06K133062E, and 06K133062AH.

Cost of Replacement

The cost to replace the throttle body can vary significantly based on the part source and labor rates.

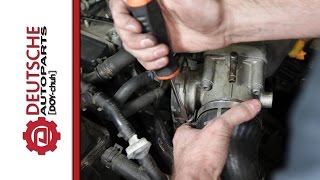

Replacement & Calibration Procedure

Replacing the throttle body is a feasible DIY job for those with basic mechanical skills. Access is straightforward on the 2014-2017 Jetta, Passat, and Beetle, as the throttle body is located at the front of the engine, connected to the intake manifold.

1. Disconnect the battery.
2. Remove the engine cover and air intake ducting connected to the throttle body.
3. Disconnect the electrical connector from the throttle body.
4. Remove the four bolts (typically 5mm Allen or T30 Torx) holding the throttle body to the intake manifold.
5. Remove the old throttle body and gasket. Clean the mounting surface on the intake manifold.
6. Install the new throttle body with a new gasket. Torque the bolts to specification (approx. 7 ft-lbs).
7. Reconnect the electrical connector and all intake piping.
8. Reconnect the battery.

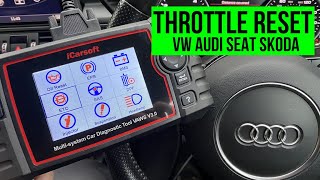

CRITICAL FINAL STEP: Throttle Body Alignment (TBA)

After the new part is installed, the ECU needs to learn the new throttle plate's closed, open, and partial positions. Skipping this step will likely result in a very high or erratic idle, and the EPC light may remain on. This procedure requires a compatible diagnostic scan tool, such as VCDS (VAG-COM) by Ross-Tech or other professional-grade scanners. The process is typically found in the 'Basic Settings' menu for the Engine Control Module.
