2003-2010 Porsche Cayenne V8 Mass Air Flow Sensor: Diagnosing Hesitation and Stalling
This guide covers the common failure symptoms, diagnostic procedures, and buying advice for the dual MAF sensors found on 4.5L and 4.8L V8 Porsche Cayenne models.
- All 2003-2010 V8 Porsche Cayennes have two identical and interchangeable Mass Air Flow sensors, one for each cylinder bank.
- Before replacing the sensors, always inspect the intake system for vacuum leaks, as a simple cracked hose can cause the exact same symptoms.
- Always choose a genuine OEM Bosch sensor. Inexpensive aftermarket MAF sensors are notoriously unreliable and can cause persistent performance issues.
- Replacement is a very easy DIY job but may require a special 5-point tamper-proof Torx bit to separate the sensor from the housing.
Symptoms of a Failing MAF Sensor on Your Cayenne
When a Mass Air Flow sensor begins to fail, it sends incorrect data to the engine's computer, leading to an improper air-fuel mixture. This can cause a range of noticeable problems. On a V8 Cayenne, since there are two sensors, a single failure can sometimes cause issues that seem isolated to one side of the engine. However, the symptoms are often more general.
- Rough Idle and Stalling: The engine may shake, vibrate, or idle erratically. In more severe cases, the engine may stall when coming to a stop or shortly after starting.
- Hesitation and Poor Acceleration: When you press the gas pedal, the vehicle may hesitate, stumble, or jerk before accelerating. You'll notice a significant loss of power, and the engine may feel sluggish.
- Decreased Fuel Economy: An incorrect air-fuel mixture is inefficient. You'll likely notice you're getting fewer miles per gallon than usual.
- Black Smoke from Exhaust: If the sensor causes the engine to run "rich" (too much fuel, not enough air), unburned fuel can exit through the exhaust, creating visible black smoke.
- Check Engine Light (CEL): A failing MAF sensor will almost always trigger a Check Engine Light.
Common Diagnostic Trouble Codes (DTCs)
If your Check Engine Light is on, a diagnostic scanner will likely show one or more of the following codes related to the MAF sensors. Codes P1080, P1094, and P1097 have been specifically noted by owners in forums.
| Code | Definition |
|---|---|
| P0101 | Mass or Volume Air Flow Circuit Range/Performance Problem |
| P0102 | Mass or Volume Air Flow Circuit Low Input |
| P0103 | Mass or Volume Air Flow Circuit High Input |
| P0171 | System Too Lean (Bank 1) |
| P0174 | System Too Lean (Bank 2) |
Pro Tip: Before you replace a MAF sensor, always check the entire intake system for air leaks. A cracked intake boot or a loose hose clamp downstream of the sensor can allow un-metered air into the engine, which can mimic the symptoms of a bad MAF sensor and trigger the same error codes.
Buying a Used Cayenne MAF Sensor: What to Look For
A used OEM MAF sensor can be a reliable and cost-effective alternative to an expensive new part, especially when compared to cheap, new aftermarket sensors which are known to be problematic.
1. Insist on OEM Bosch
Bosch is the Original Equipment Manufacturer (OEM) for Porsche for this part. Aftermarket MAF sensors have a poor reputation for reliability and accuracy. A used, low-mileage OEM Bosch sensor is almost always a better choice than a new, non-OEM part. Ensure the part you are buying has the Bosch logo and part number stamped on it.
2. Verify Compatibility and Part Numbers
The V8 Cayenne uses two MAF sensors. While they are physically identical and generally interchangeable for the left and right banks, part numbers did change through the years. Always match the part number on your original sensor to the one you are buying. Key OEM part numbers include:
- Bosch: 0280218198, 0280218071
- Porsche: 7L5906461, 95560612300, 95560612301, 95560612330, 95560612331, 95560612340, 95560612341
This part fits both the 4.5L V8 (2003-2006 Cayenne S & Turbo) and the 4.8L V8 (2008-2010 Cayenne S & GTS) non-turbo models.
3. Physical Inspection Checklist
When inspecting a used MAF sensor, look for:
- No Cracks or Damage: Check the black plastic housing for any cracks or signs of damage.
- Clean Connector Pins: The electrical pins in the connector should be straight and free of corrosion.
- Intact Sensor Element and Screen: Look inside the sensor's bore. There is a fine mesh screen designed to protect the delicate sensor wires. Ensure this screen is intact and not clogged with debris. Avoid any sensor where the internal wires appear damaged or contaminated with oil.
Installation Guide (Difficulty: 1/5)
Replacing the MAF sensors on a V8 Cayenne is a very simple DIY job that typically takes less than 30 minutes for both.

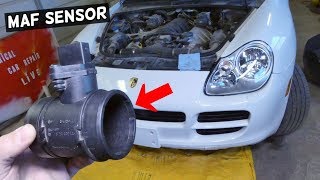

🎬 Watch: A quick walkthrough on removing and replacing your MAF sensors.Special Tool Required: You will need a set of 5-point tamper-proof Torx bits (often a T20 or T25 size) to remove the sensor from its housing, if you are only replacing the sensor element itself. A standard 6-point Torx bit will not work.
- Locate the MAF Sensors: Open the hood. You will see two identical MAF sensor housings, one on each side of the engine, connected to the air filter boxes and the intake tubes.
- Disconnect the Electrical Connector: Press the tab on the electrical plug and pull it straight off the sensor.
- Loosen Hose Clamps: Using a flathead screwdriver, loosen the hose clamps that secure the intake boot to the MAF sensor housing.
- Remove the Housing: Pry up the wire retaining clip that holds the housing to the airbox and wiggle the entire assembly free.
- Swap the Sensor (if needed): If your replacement part is just the sensor element, use the 5-point Torx bit to remove the two screws holding it into the housing and swap it with the new one. Pay attention to the arrow on the sensor indicating the direction of airflow. 🎬 See this detailed replacement guide for 2004-2008 Cayenne models.
- Reinstall: Installation is the reverse of removal. Ensure the hose clamps are tight to prevent vacuum leaks.
After installation, the Check Engine Light may turn off on its own after a few drive cycles. For immediate results, you can clear the codes with a standard OBD-II scanner.
Cost Comparison: Cayenne MAF Sensor
| Part Type | Estimated Cost (Per Sensor) |
|---|---|
| New OEM (Bosch) | $250 - $450 |
| New Aftermarket | $65 - $150 |
| Used OEM | $50 - $190 |
| Shop Labor | $65 - $100 |
Known Issues, TSBs, and Recalls
While MAF sensor failure is a relatively common issue on the 2003-2010 Porsche Cayenne, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Porsche or the NHTSA for this problem on the V8 gasoline models. The failures are generally due to age, heat cycles, and contamination from dirt or oil over time.
Frequently Asked Questions
How many MAF sensors does my 2003-2010 Cayenne have?
If you have a V8 model (Cayenne S, GTS, Turbo), your vehicle has two MAF sensors—one for each cylinder bank. If you have a V6 model, it only has one.
🎬 Watch: MAF sensor replacement steps specifically for the V6 base model.Are the left and right MAF sensors the same part?
Yes, for the V8 models, the left and right MAF sensors are physically identical and use the same part number. They can be interchanged. When purchasing, you simply need to buy two of the same part.
Can I just clean my MAF sensor instead of replacing it?
You can try cleaning the sensor as a first step. You must use a dedicated MAF sensor cleaning spray. Never touch the delicate internal wires. While cleaning sometimes works, it is often a temporary fix, and if the sensor's electronics have failed internally, cleaning will not help. Some newer "hot film" style sensors are also considered non-serviceable and cannot be effectively cleaned.
Do I need to reset the computer after replacing the MAF sensor?
It is recommended to clear the diagnostic trouble codes with an OBD-II scanner after installation. If you don't have a scanner, the Check Engine Light should go off on its own after several driving cycles once the ECU confirms the sensor is operating correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0280218198 7L5906461 95560612300 95560612301 95560612330 95560612331 95560612340 95560612341
V8 models require two sensors. V6 models require one sensor.
