2023-2025 Ford Escape ST-Line Headrests: Fitment, Swaps, and Part Numbers
This guide covers the unique red-stitched ST-Line headrests, how they differ from other trims, and what to check before buying a used set.
- The headrest set with part number PJ6Z-58611A08-BB features Ebony leatherette with red stitching and is specific to ST-Line, ST-Line Select, and ST-Line Elite trims.
- While these headrests will physically fit any 2023-2025 Escape, the appearance will not match the interior of non-ST-Line models.
- Failure is almost always physical (damage to fabric, foam collapse) or mechanical (broken adjustment button); there are no electronics or common recalls.
- Replacement is a simple DIY job that takes less than 5 minutes and requires a paperclip or small pin to unlock the secondary release.
Variant Differences: ST-Line vs. Other Trims
The most important factor when purchasing a front headrest set for a 2023-2025 Ford Escape is understanding the trim-specific interior styling. While the headrests are physically interchangeable across all trim levels, their appearance is not.
The headrest set identified by part number PJ6Z-58611A08-BB is finished in Ebony leatherette (a synthetic leather material) with distinctive red accent stitching. This style was exclusively equipped from the factory on the following sport-oriented trims:
- ST-Line
- ST-Line Select
- ST-Line Elite
Warning: If you install these red-stitched headrests in a non-ST-Line model (such as a Base, Active, or Platinum trim), they will physically fit but will not match the seat upholstery, which typically comes in solid Ebony or Space Gray cloth without the red stitching.
Symptoms of a Failing Headrest
Headrests are simple components, and failure is typically related to physical damage or mechanical issues rather than electronic problems. Common symptoms include:
- Physical Damage: The most obvious sign of failure is visible damage to the headrest itself. This can include rips, tears, or seam separation in the leatherette, as well as stains or discoloration. The internal foam cushion can also collapse or become permanently compressed, offering less support and comfort.
- Adjustment Mechanism Failure: The headrest may refuse to lock into position, causing it to slide down on its own. Conversely, the release button might get stuck, making it impossible to adjust the height or remove the headrest from the seat.
- Rattles and Squeaks: A loose fit between the headrest posts and the guides inside the seatback can cause rattling or squeaking noises as the vehicle moves. This can be due to wear on the posts or the internal guide sleeves.
Buying a Used Front Seat Headrest Set
Purchasing a used OEM headrest set is an excellent way to save money, especially for a cosmetic part. However, careful inspection is key to getting a quality part. Here’s what to check:
| Inspection Point | What to Look For |
|---|---|
| Part Number & Stitching | For ST-Line models, verify the part number is PJ6Z-58611A08-BB or that the headrests are Ebony with red stitching. Other trims use different part numbers and colors (e.g., gray). |
| Upholstery Condition | Closely inspect all surfaces for tears, cuts, scuffs, and separated seams. Check for stains, sun fading, or shiny spots from wear. |
| Foam Integrity | Squeeze the headrest firmly. It should feel firm and spring back to its original shape. Avoid any that feel flat, lumpy, or permanently compressed. |
| Posts and Buttons | Examine the chrome posts for rust, pitting, or flaking. Ensure the plastic collars at the base are not cracked. If possible, press the adjustment button to ensure it moves freely. |
| Odor | Smell the headrests for any strong odors like smoke, mildew, or excessive air freshener, which can be difficult to remove. |
Pro Tip: When buying online, look for listings with clear, high-resolution photos from multiple angles. Don't hesitate to ask the seller for pictures of the part number tag or specific areas of concern.
Known Issues, TSBs, and Recalls
As of mid-2024, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA related to the front seat headrests on the 2023-2025 Ford Escape. The vehicle has several other active recalls for engine, software, and body components, but none involve the head restraints.
A common complaint across many modern vehicles, including the Escape, relates to the forward-leaning angle of the headrests. This design is mandated by federal safety standards to reduce whiplash, but some drivers find it pushes their head into an uncomfortable position. This is a characteristic of the design and not considered a defect.

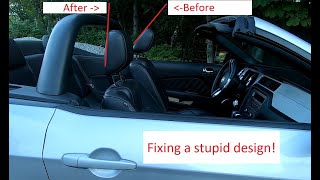

🎬 Watch: How to adjust uncomfortable forward-leaning headrestsCost Comparison
This table shows the typical cost range for replacing a front headrest set. Labor costs are minimal as replacement is a simple DIY task.
| Part Type | Typical Price Range |
|---|---|
| New OEM (Ford) | $107 - $155 (for the set) |
| Used OEM (Recycled) | $75 - $120 (for the set) |
| New Aftermarket | Not commonly available |
| Shop Labor | $0 - $50 (Often a courtesy installation or minimum shop fee) |
Replacement Guide (Difficulty: 1/5)
Replacing the front headrests is extremely easy and requires no tools, though a small pin or paperclip may be needed.
- Raise the Headrest: Press the main adjustment button located on the plastic collar of one of the headrest posts and pull the headrest up to its highest position.
- Locate the Second Release: On the collar of the other post, look for a small, recessed pinhole. Unlike the main adjustment button, this is a secondary lock to prevent accidental removal.
- Release and Remove: While pressing the main adjustment button with one hand, use a paperclip, small Allen key, or similar tool to press the pin inside the pinhole on the other post. With both locks released, pull the headrest straight up and out of the seat.

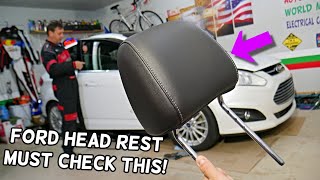

- Install the New Headrest: Align the posts of the new headrest with the guide holes in the seatback and push it down until it clicks into place. Adjust to the desired height using the main adjustment button. 🎬 See this quick video on removing Ford headrests
Frequently Asked Questions (FAQ)
Will the ST-Line headrests fit my Base or Active model Escape?
Yes, they will physically fit perfectly. However, the Ebony color with red stitching is specific to the ST-Line trims and will not match the standard cloth or ActiveX seats in other models.
Is part number PJ6Z-58611A08-BB for one headrest or a set of two?
This part number typically refers to the complete front headrest assembly, which includes both the driver and passenger side headrests as a set. However, always confirm with the seller before purchasing.
Are headrests from the 2020-2022 Escape compatible?
No, they are generally not compatible. The Ford Escape received a significant refresh for the 2023 model year, which included changes to the interior and seats. Part numbers for 2020-2022 models are different, so you should only use headrests from 2023, 2024, or 2025 vehicles.
How do I clean the Ebony leatherette and red stitching?
Use a mild, pH-neutral cleaner designed for automotive interiors or a simple solution of gentle soap and water. Apply it to a microfiber cloth, gently wipe the surface, and then dry with a separate clean cloth. Avoid harsh chemicals or abrasive brushes that could damage the leatherette or discolor the stitching.
Helpful Videos
Technical Specifications
OEM Part Numbers: PJ6Z-58611A08-BB
Material: Ebony Leatherette with Red Stitching. Application: Front Driver and Passenger Seats.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
