2009-2011 Volkswagen Tiguan Front End Damage: A Guide to Parts and Compatibility

Symptoms of a Damaged Front End Assembly

Since the front end assembly is composed of structural and cosmetic parts, failure is almost always due to impact damage. Symptoms are typically visual and functional rather than mechanical noises or codes, unless the damage is severe enough to affect the radiator or attached sensors.

• Visible Misalignment: The most obvious sign is poor fitment between body panels. Look for uneven gaps between the hood, fenders, and the front bumper cover.
• Hood Latching Problems: Difficulty opening or securely closing the hood can indicate that the radiator support, which holds the hood latch, has been bent or shifted.
• Improper Headlight Aim: If headlights point too high, too low, or vibrate excessively while driving, it may be because their mounting points on the radiator support are broken or bent.
• Engine Overheating: If the radiator support is pushed back in a collision, it can damage the radiator or A/C condenser, leading to coolant leaks and engine overheating.
• Rattling or Clunking Noises: Loose or broken components on a damaged radiator support can rattle or knock against the frame or other parts, especially when driving over bumps.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no recalls specifically for the structural front end assembly, several recalls and TSBs for the 2009-2011 Tiguan relate to components housed within it.

• NHTSA Recall 13V569000: This recall addresses a melting fuse holder for the exterior lights circuit. A partial loss of exterior lighting increases the risk of a crash. Dealers will replace the affected fuse free of charge.
• NHTSA Recall 15V483000: Affecting 2010-2014 models, this recall involves the airbag clock spring in the steering wheel, which can become contaminated with debris, potentially tearing the internal cable and preventing the driver's airbag from deploying in a crash.
• NHTSA Recall 14V398000: For 2009-2014 models, bubbles could form in the fuel system when using winterized fuel, potentially causing the engine to stall. The fix is a software update to increase fuel pump pressure.
• TSB for Unwarranted Braking: Volkswagen issued a TSB regarding unwarranted Autonomous Emergency Braking (AEB). The service procedure involves checking for any misalignment or damage to front-end components like the bumper and grille where sensors are mounted.

Buying a Used 2009-2011 Tiguan Front End Assembly: A Buyer's Guide

Purchasing a used front end assembly, often sold as a "front clip" from a salvage vehicle, can be a cost-effective solution. However, careful verification is essential due to numerous variations. Using a recycled OEM assembly ensures better fitment and material quality compared to cheaper aftermarket alternatives.

The Ultimate Compatibility Checklist

Before you buy, you must verify which options the donor vehicle had. Mixing and matching these parts will lead to installation problems.

• Headlight Type (Halogen vs. Xenon/HID): This is the most critical difference. Tiguans came with either standard Halogen headlights or optional Bi-Xenon High-Intensity Discharge (HID) lights. These systems use different bumper covers, and the headlight assemblies themselves have unique shapes and mounting points. Xenon lights are significantly brighter and produce a whiter, bluish light compared to the yellowish light of halogens.
• Headlight Washers: Vehicles equipped with Xenon headlights often came with a high-pressure headlight washer system. This requires a bumper cover with small, rectangular cutouts for the pop-up washer nozzles. A bumper without these cutouts cannot be used on a vehicle with the washer system.
• Parking Aid Sensors: The optional Park Assist system uses ultrasonic sensors mounted in the front and rear bumpers. If your Tiguan has this feature, you need a bumper cover with the corresponding small, circular holes for these sensors.
• Model Year (Pre-Facelift): This guide is specifically for the 2009-2011 Tiguan. In 2012, the Tiguan received a major facelift with a completely different bumper, grille, and headlight design. Parts from 2012 and newer models are not a direct fit for the 2009-2011 generation.

Physical Inspection Guide

When inspecting a used assembly, look beyond the surface:

• Check the Radiator Support: Inspect the main support for any cracks, bends, or signs of repair (e.g., plastic welding). Ensure all mounting tabs for headlights, the radiator, and the bumper are intact.
• Examine the Bumper Reinforcement: This is the steel bar behind the plastic bumper cover. It should be perfectly straight with no dents or rust.
• Inspect the Bumper Cover: Look for deep scratches, cracks, or evidence of plastic filler (Bondo). Check that all mounting tabs on the top and sides are present and not broken.
• Verify Included Components: Confirm which parts are included. A "front clip" may include the radiator support, bumper reinforcement, bumper cover, headlights, and grille. Clarify this with the seller beforehand.

Cost of a 2009-2011 Tiguan Front End Assembly

Prices vary based on what components are included. The table below breaks down the cost for the two main individual parts: the radiator support and the front bumper cover.

Note: Labor costs for installation are separate and can range from $500 to $1,200+ depending on the extent of the replacement and whether the A/C system needs to be evacuated and recharged.

Installation Overview

• Difficulty: 4 out of 5. This is a complex job requiring significant disassembly.
• DIY Feasible: For experienced mechanics only. The biggest hurdle for a DIYer is the need to properly evacuate and recharge the A/C system, which requires specialized equipment.

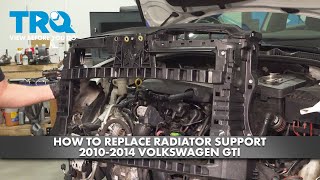

• General Steps: The process involves removing the front wheels and fender liners, detaching the bumper cover, disconnecting all lights and sensors, draining the engine coolant, evacuating the A/C refrigerant, disconnecting radiator and condenser lines, and finally unbolting the entire radiator support assembly from the vehicle's frame rails. 🎬 Watch this step-by-step VW radiator support replacement guide. Installation is the reverse of removal.
